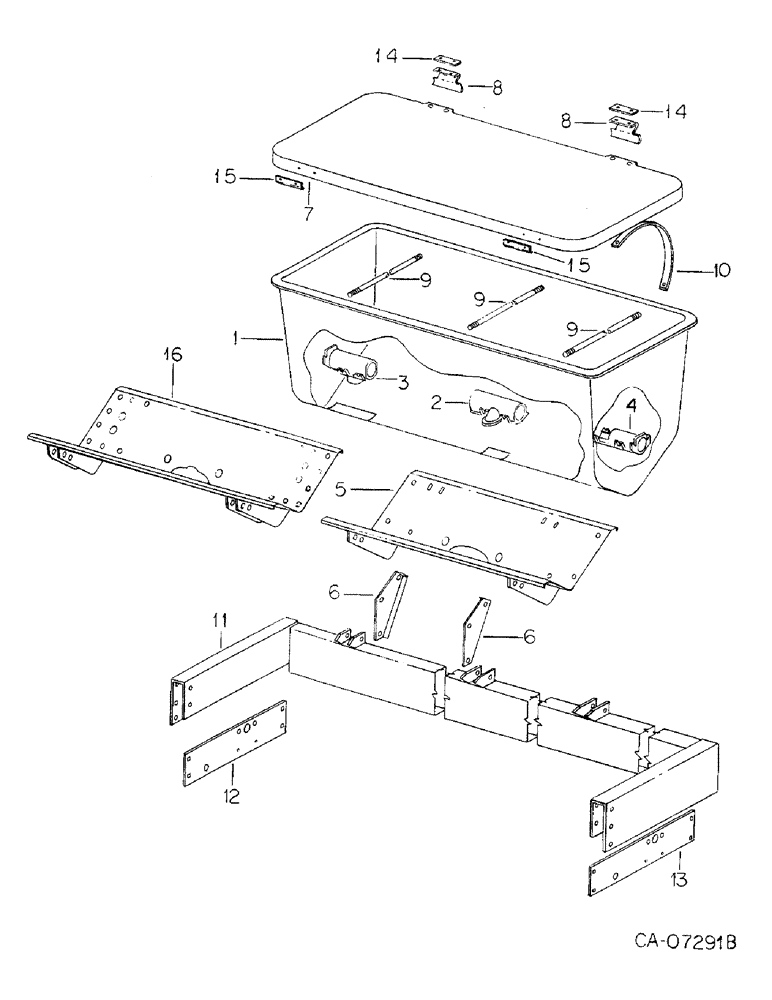

Запчасти Case IH 800 (10-02) - FERTILIZER, HOPPER AND RELATED PARTS, DRY FERTILIZER, UNITS B, E, G, S AND T (09) - CHASSIS/ATTACHMENTS

1

140952C1

HOPPER

3 outlet

1шт.

2

141037C1

HOUSING

auger feed center

1шт.

3

Not used this application

1шт.

4

149197C1

HOUSING

auger inner end short

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

141045C1

SADDLE

ASSY, 3 outlet tank, units B, E, G and T

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

1шт.

6

147417C1

SUPPORT

BAR, tank support LH

1шт.

6

147418C1

SUPPORT

BAR, tank support RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

1шт.

22900R1

HEADED PIN

PIN, 3/8 x 1.250 hd type 1

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN, 3/8 x .750 hd type 1

1шт.

544063R1

HAIR PIN COTTER

PIN, quick attchable cot

1шт.

7

140954C3

COVER

ASSY, 3 outlet hopper, includes ref. no. 15

1шт.

8

LATCH, lid, not serviced separately, order fertilizer lid latch package 1264399C91

1шт.

9

137171C1

STEM

ROD, spacer hopper

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

137170C1

STRAP

STRIP, lid

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

282328C1

WASHER

.281 x 1.125 x .054

1шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT, 1/4 hex lock

1шт.

11

141162C1

FUNNEL

FRAME ASSY, unit B & G

1шт.

11

1254382C1

FUNNEL

FRAME ASSY, 2 for unit S

1шт.

11

141087C1

FUNNEL

FRAME ASSY, short, 2 for units E and T

1шт.

11

141105C1

FUNNEL

FRAME ASSY, long, units E and T

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

1шт.

12

141096C1

BAR

support, units B, E and G

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

4шт.

13

141108C1

SUPPORT

ASSY, units B, E, G and T

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

4шт.

14

STRIP, latch reinforcement, not serviced separately, order fertilizer lid latch package 1264399C91

1шт.

15

137169C1

SUPPORT

clip cover

1шт.

769578C1

RIVET

4.8 x 11.5mm break mandrel

1шт.

16

141045C1

SADDLE

ASSY, 3 outlet tank, LH, unit S with serial no. 16800 and below

1шт.

16

1279583C1

SADDLE

ASSY, 3 outlet tank, LH, unit S with serial no. 16801 and above

1шт.

16

141045C1

SADDLE

ASSY, 3 outlet tank, RH, unit S with serial no. 16800 and below

1шт.

16

1279871C1

SADDLE

ASSY, 3 outlet tank, RH, unit S with serial no. 16801 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

16шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

32шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

16шт.

1264399C91

PACKAGE

fertilizer lid latch, consists of (8) latch (NSS), (8) strip (NSS), (16) rivet (NSS), (16) washer (NSS)

1шт.
