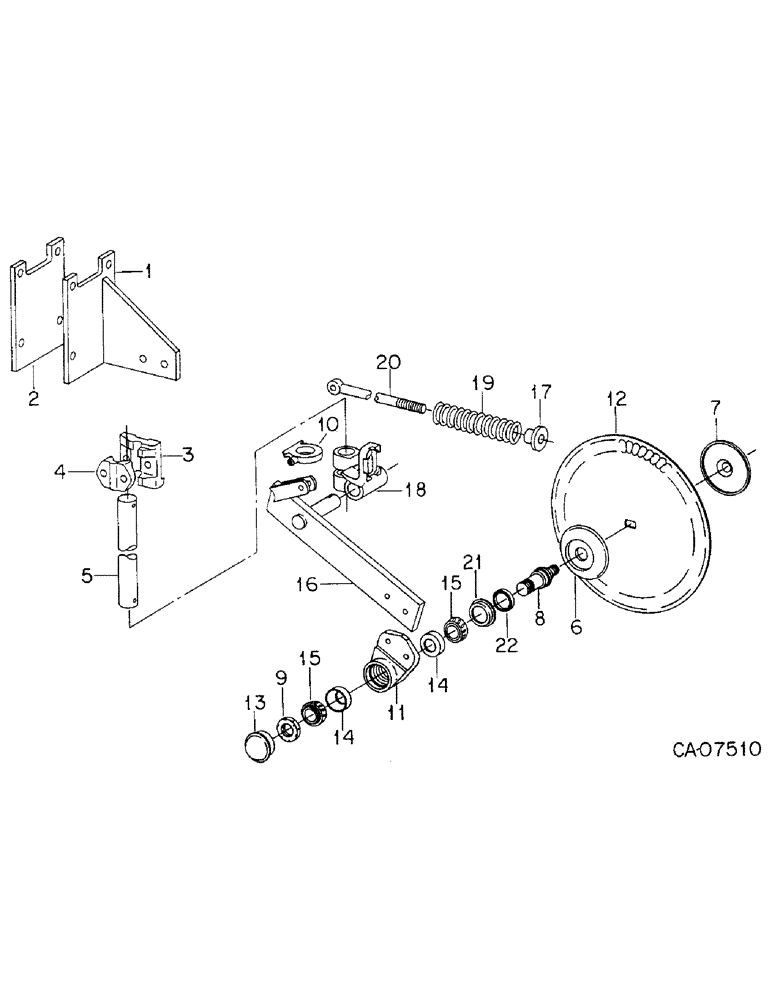

Запчасти Case IH 800 (08-23) - GROUND TOOLS, COU-TILL ATTACHMENT, UNITS A THRU G, M, S AND T, QUANTITIES SHOWN ARE FOR TWO ROWS (09) - CHASSIS/ATTACHMENTS

1

1254262C2

BRACKET

ASSY, LH head

1шт.

1

1254263C2

BRACKET

ASSY, RH head

1шт.

2

1254135C1

PLATE

head bracket

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 type 5

8шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 flange lock

8шт.

3

1254269C1

CLAMP

colter

2шт.

4

524492R1

CLAMP

CAP, colter clamp

2шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 x 3-3/4 type 5

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8-11 flange lock

4шт.

5

1254137C1

PIN

colter shank, rod

2шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

4шт.

6

523020R3

SUPPORT ASSY.

SUPPORT, inside blade

2шт.

7

523021R2

SUPPORT ASSY.

SUPPORT, outside blade

2шт.

8

541480R1

SPINDLE

colter

2шт.

26963R1

NUT,7/8"-14, G8

NUT, 7/8-NF slt type 8

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

137214

COTTER PIN

1/8" x 1-3/4"

2шт.

9

519250R1

SLOTTED NUT

1-1/4-12 slt hex

2шт.

10

523345R21

COLLAR CLAMP

COLLAR W/SET SCREW, stop

2шт.

20080R1

SET SCREW

1/2 x 1-1/4 znp sq/hd c/pt set

2шт.

11

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING RH BRG

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

17238R91

LUBE NIPPLE,65 Degree, 1/4" NPT x .73" lg

FITTING, 1/4 lt 65D lub

2шт.

12

1254139C1

COULTER

DISK, 16 in. ripple colter, blade

2шт.

13

518842R1

CAP

hub

1шт.

14

651817R1

BEARING CUP

BEARING, housing cup

4шт.

15

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, housing cone

4шт.

16

492812R1

ARM

ASSY, colter

2шт.

17

487697R1

CENTERING RING

SPACER, spring plug

2шт.

18

492815R3

BUSHING

colter

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

2шт.

19

487698R1

SPRING

cushion

2шт.

20

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, spring eye

2шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1.750 hd type 1

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

21226R1

WASHER

1.281 x 2.000 x .105

2шт.

21

472222R1

SLEEVE

wear

2шт.

22

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

549827R92

HUB CAP

PACKAGE, hub bearing & spindle consists of ref nos. 8, 9, 11, 13, 14, 15, 21 & 22

1шт.
