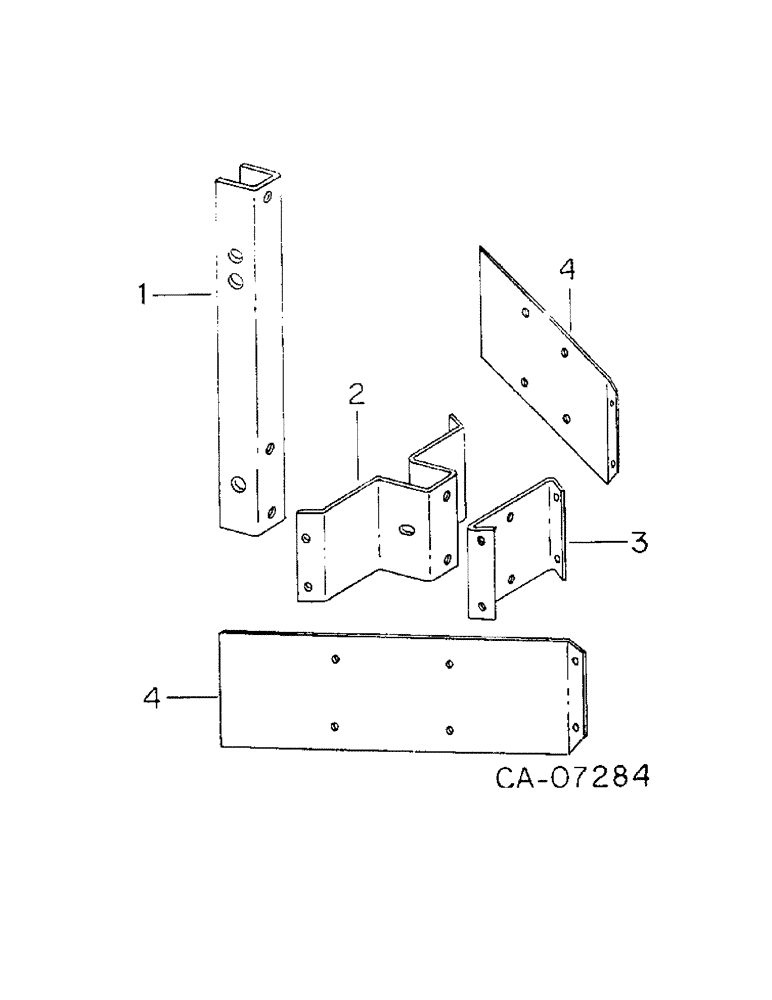

Запчасти Case IH 800 (08-22) - GROUND TOOLS, WING FURROWING ATTACHMENT, ONE PER ROW, UNITS A THRU AB (09) - CHASSIS/ATTACHMENTS

1

141232C2

CHANNEL

furrower

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, 1/2 flanged lock

1шт.

2

141231C1

SUPPORT

furrower rear

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

3

141230C1

SUPPORT

furrower front

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

4

141229C1

BLADE

SUPPORT, furrower blade

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.
