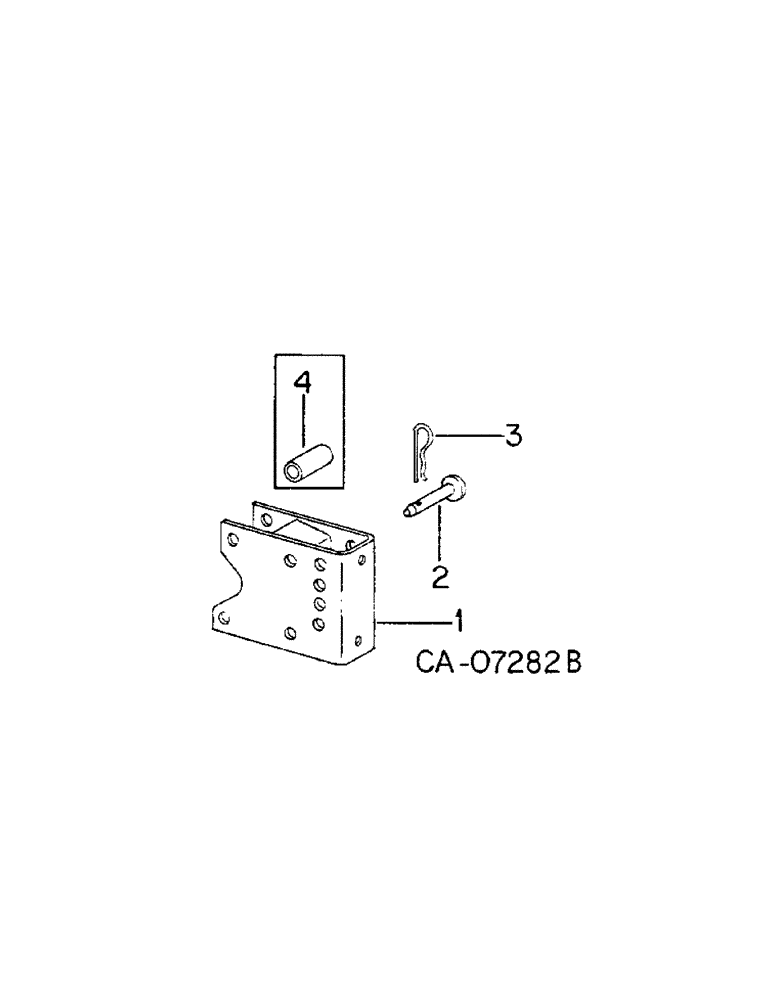

Запчасти Case IH 800 (08-22[1]) - GROUND TOOLS, TILLAGE ATTACHMENT SUPPORT PACKAGE UNITS A THRU AB ONE PER ROW (09) - CHASSIS/ATTACHMENTS

1

149202C1

SOCKET

cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

2шт.

1

1277862C2

SOCKET

ASSY, attachment, cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

2

147404C1

PIN,12.7mm OD x 83mm L

pointed

1шт.

3

517843R1

COTTER PIN

PIN, quick attachable cotter

1шт.

4

141235C2

SPACER

support, cyclo planters w/serial no. 14500 and below, plate planters w/serial no. 3700 and below

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5 , BACKLAND CONVERSION PARTS ACCESSORY

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock , BACKLAND CONVERSION PARTS ACCESSORY

1шт.

1268312C91

PACKAGE

PARTS ACCESSORY, Blackland conversion, used w/cast boot for two rods, this parts accessory is needed to increase the opener disk angle to eliminate disk plugging when Blackland planting, consists of

1шт.

1268303C1

SHIM

Blackland, LH , CONVERSION PARTS ACCESSORY

2шт.

1268304C1

SHIM

Blackland, RH , CONVERSION PARTS ACCESSORY

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Backland conversion parts accessory Hex, 5/8"-11 x 2", G8

2шт.

28552R1

BOLT,Hex, 5/8" - 11 x 1 3/4", LH, Gr 8

5/8 x 1-3/4 LH type 8 , BACKLAND CONVERSION PARTS ACCESSORY

2шт.

18477R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2

BOLT, 5/16 x 3-1/2 crg type 1 , BACKLAND CONVERSION PARTS ACCESSORY

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , Backland conversion parts accessory Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1 , BACKLAND CONVERSION PARTS ACCESSORY

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 , BACKLAND CONVERSION PARTS ACCESSORY

20шт.

1268311C1

SPACER

Blackland scraper , CONVERSION PARTS ACCESSORY

6шт.

1268313C91

PACKAGE

PARTS ACCESSORY, Blackland conversion, used with sheet metal boot for two rows, this parts accessory is needed to increase the opener disk angle to eliminate disk plugging when Blackland planting, consists of

1шт.

1268107C1

BRACKET

ASSY, Blackland shim , CONVERSION PARTS ACCESSORY

2шт.

28552R1

BOLT,Hex, 5/8" - 11 x 1 3/4", LH, Gr 8

5/8 x 1-3/4 LH type 8 , BACKLAND CONVERSION PARTS ACCESSORY

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Backland conversion parts accessory Hex, 5/8"-11 x 2", G8

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , Backland conversion parts accessory Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 crg type 1 , BACKLAND CONVERSION PARTS ACCESSORY

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 , BACKLAND CONVERSION PARTS ACCESSORY

32шт.

1268311C1

SPACER

Blackland scraper , CONVERSION PARTS ACCESSORY

6шт.
