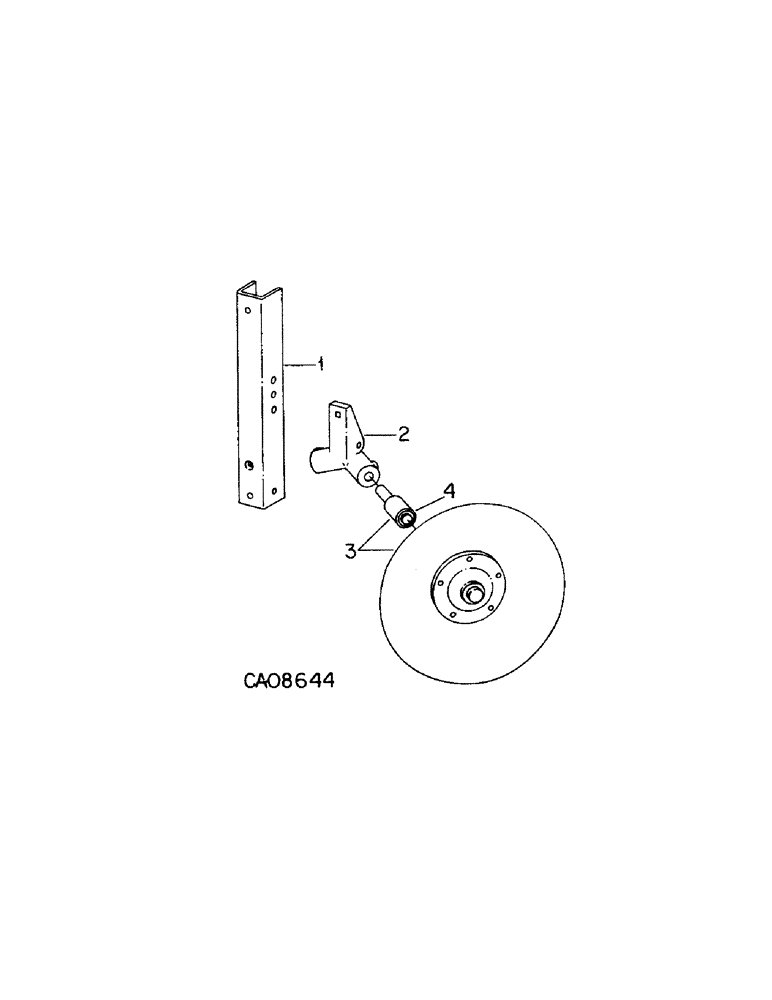

Запчасти Case IH 800 (08-21) - GROUND TOOLS, DISK FURROWING ATTACHMENT, S/N 14501 & ABOVE (CYCLO), S/N 3701 & ABOVE, (PLATE) (09) - CHASSIS/ATTACHMENTS

1

149271C3

CHANNEL

disk furrowing

1шт.

2

1277697C1

BRACKET

disk furrowing, 9-1/4 in.

1шт.

2

1277696C1

BRACKET

disk furrowing, 12 in.

1шт.

27985R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/4", Gr 8

BOLT, 3/8 x 1-1/4 plow type 8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW, 3/8 x 7/8 znp sq/hd c/pt set

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

1277699C91

DISC

DISK ASSY, furrowing, 9-1/4 in.

2шт.

3

1277698C91

DISC

DISK ASSY, furrowing, 12 in.

2шт.

990323R91

PACKAGE

RIVET, 1/4 x 3/4 pln but/hd sol, one pound package

10шт.

4

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING, furrowing disk

2шт.
