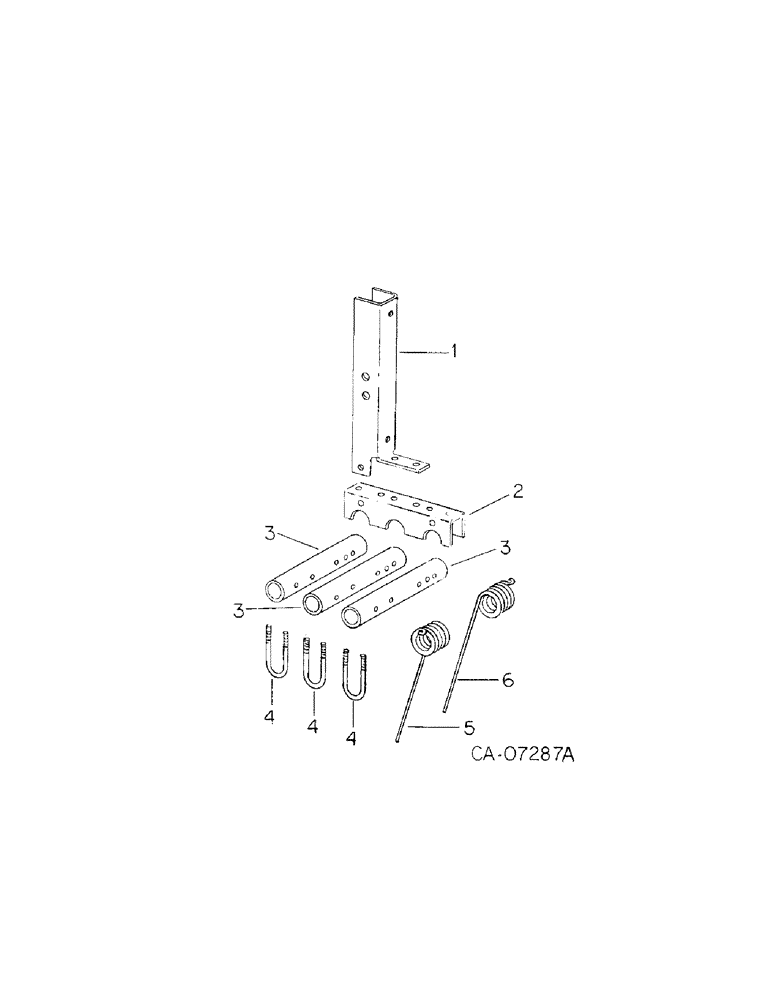

Запчасти Case IH 800 (08-21[1]) - GROUND TOOLS, TINE TOOTH ATTACHMENT ONE PER ROW UNITS A THRU AB (09) - CHASSIS/ATTACHMENTS

1

141381C2

SUPPORT

channel tine tooth

1шт.

2

141382C1

CHANNEL

tine tooth support

1шт.

180091

SPRING

5/16 x 2-1/2 type 5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

1шт.

3

141383C1

PIPE

tube tine support, order improvement package, 1279831C91

3шт.

3

1279536C1

SUPPORT TUBE,33.4 mm OD, 248 mm Length

PIPE, tube tine support

3шт.

4

141384C1

U-BOLT,5/16" - 18 x 77mm L

BOLT, tine clamp

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

5

141385C1

SPRING

tine tooth LH, 2 coils, order improvement package, 1279831C91

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 type 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

2шт.

5

1279534C1

SPRING

tine tooth LH

3шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

3шт.

120388

.438 x 1.000 x .064

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

3шт.

6

141386C1

SPRING

tine tooth RH, 2 coils, order improvement package, 1279831C91

3шт.

180087

SPRING

5/16 x 2 type 5

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

3шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

3шт.

6

1279535C1

SPRING

tine tooth RH

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

2шт.

1279831C91

PACKAGE

tine tooth improvement, consists of

1шт.

1279534C1

SPRING

tine tooth LH

3шт.

1279535C1

SPRING

tine tooth RH

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

5шт.

120388

.438 x 1.000 x .064

5шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

5шт.

1279536C1

SUPPORT TUBE,33.4 mm OD, 248 mm Length

PIPE, tube tine support, instructions (NSS)

3шт.
