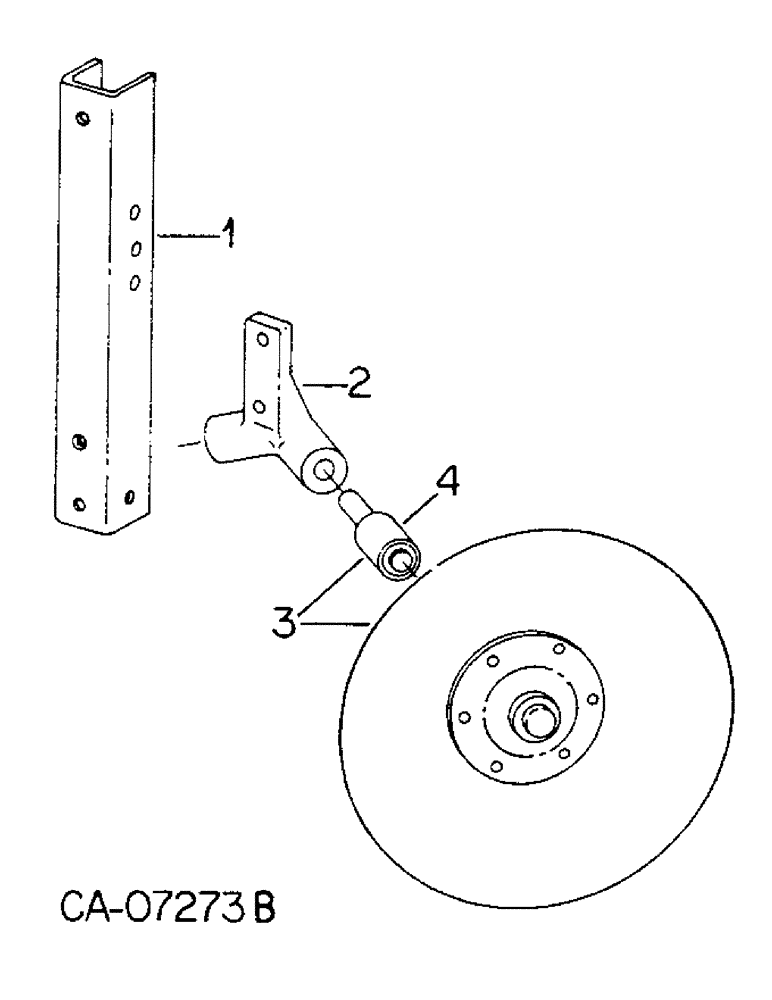

Запчасти Case IH 800 (08-20) - GROUND TOOLS,DISK FURROWING ATTACH,9-1/4" & 12" DISK,UNITS A -V,QUANTITIES PER ROW S.N.14500 & BELOW (09) - CHASSIS/ATTACHMENTS

1

147336C3

CHANNEL

furrowing disk, 9-1/4 in., order channel, 149271C3

1шт.

1

149271C3

CHANNEL

furrowing disk, 12 in.

1шт.

2

147337C1

BRACKET

furrowing disk, 9-1/4 in.

1шт.

2

149270C1

BRACKET

furrowing disk, 12 in.

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flanged lock

2шт.

3

149269C91

DISC

DISK ASSY, furrowing, 9-1/4 in.

2шт.

3

149267C91

DISC

DISK ASSY, furrowing, 12 in.

2шт.

104097

RIVET,But Hd, 5/16" x 3/4"

5/16 x 3/4 pln but/hd sol

12шт.

4

128558C91

BALL BEARING,30mm OD x 75mm L

furrowing disk

2шт.
