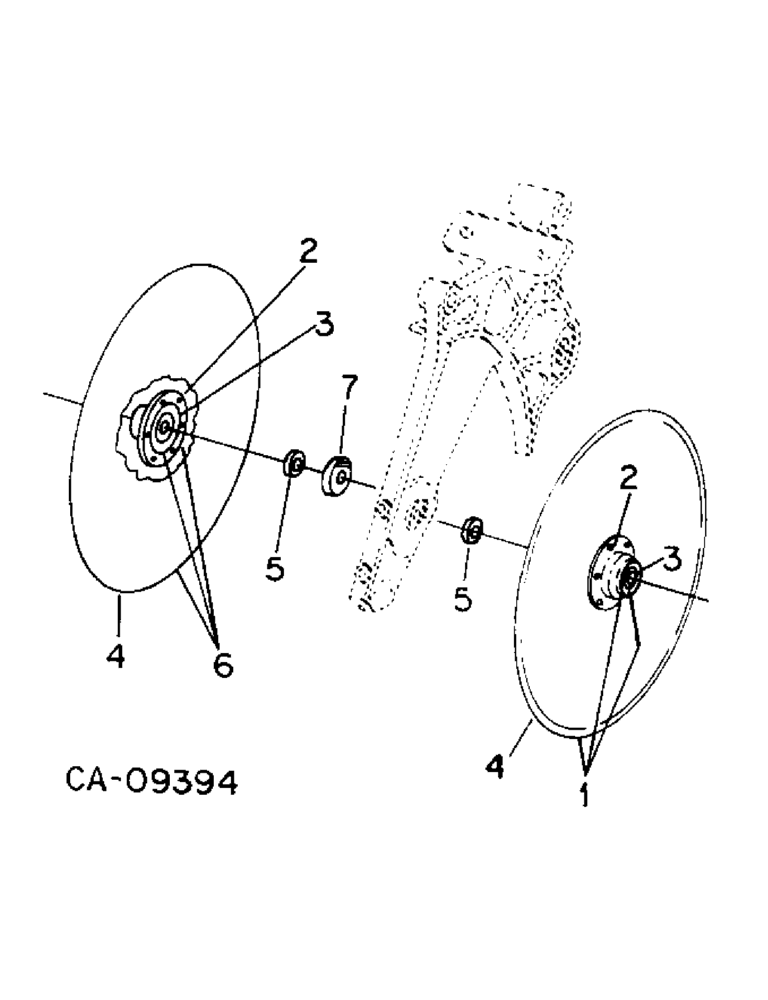

Запчасти Case IH 800 (08-12) - GROUND TOOLS,OPENER DISK PACKAGE,HEAVIER DESIGN W/REVERSED RIGHT HAND QUANTITIES PER PACKAGE (09) - CHASSIS/ATTACHMENTS

97580C91

PACKAGE

opener disk - 2 rows, consists of ref nos. 1, 5, 6, 7, and instructions

1шт.

1

90850C91

DISC

DISK ASSY, 14 in. LH, includes ref nos. 2, 3 and 4

2шт.

2

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing, 1 per disk assy

1шт.

447-48

RIVET,FH, 1/4" x 1/2"

1/4 x 1/2 pln f/hd sol, 6 per flange

1шт.

3

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball, 1 per disk assy

1шт.

3

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

4

31248R1

DISC

DISK, 355mm x 3.5mm, 1 per disk assy

1шт.

5

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051, 1 per disk assy

1шт.

6

90851C91

DISK HARROW

DISK ASSY, 14 in. RH, includes ref nos. 2, 3 and 4

2шт.

7

95841C1

WASHER

flipped disk, 1 per RH disk assy, 90851C91, instructions (NSS)

1шт.
