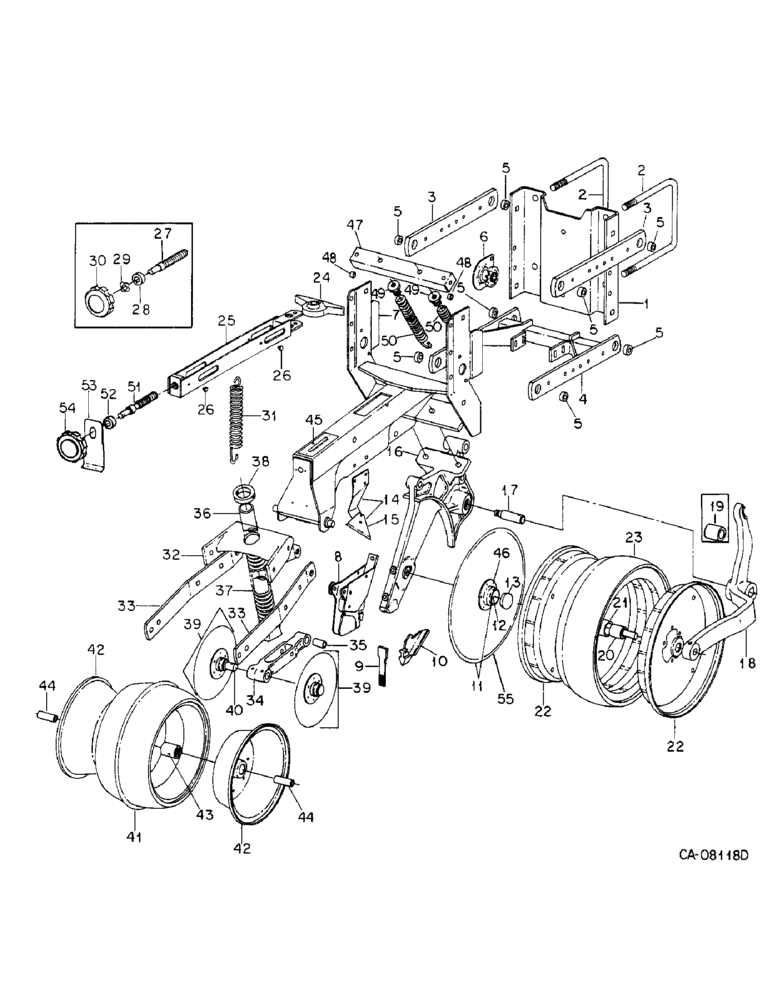

Запчасти Case IH 800 (08-06) - GROUND TOOLS, PLANTER UNIT, BASIC, QUANTITIES PER ROW , UNITS A THROUGH AB (09) - CHASSIS/ATTACHMENTS

1

141728C1

CHANNEL

head bracket, units A thru V, Y, AA and AB

1шт.

2

1250813C1

U-BOLT

replaces 493837R2, planters w/7 x 7 tool bars, units A thru V and Y

2шт.

2

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

replaces 492942R2, planters w/5 x 7 tool bars, units A thru V, AA and AB

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

3

137507C3

BAR

linkage

2шт.

4

147354C2

SUPPORT

ASSY, linkage lower

1шт.

5

137512C2

BUSHING

linkage pivot

8шт.

28428R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znp crg type 5

4шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

4шт.

20601R1

WASHER

.531 x 1.250 x .105

8шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 parallel link lock

8шт.

6

140920C1

GEAR, IDLER

SPROCKET, bearing 12T, standard

1шт.

6

1261576C1

SPROCKET ASSY.

SPROCKET, bearing 14T, seed growers special

1шт.

6

1264086C1

SPROCKET ASSY.

SPROCKET, bearing 16T, seed growers special

1шт.

6

1261577C1

GEAR, IDLER

SPROCKET, bearing 18T, seed growers special

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

7

1254598C2

FRAME ASSY

planter unit

1шт.

8

1277777C1

SHOE (ASSY)

SHOE ASSY, double disk opener, replaces 147207C4 for cyclo planters w/serial no. 14440 and below, plate planters w/serial no. 3700 and below, by also ordering shovel, 1277776C1

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4 x 1-1/2 pln slt-spr

1шт.

71769C1

FLANGE BOLT

SCREW, 3/8 x 3/4 hex-hd flange locking

2шт.

9

140817C1

DEFLECTOR

seed

1шт.

10

1277776C1

SHOVEL

firming, replaces 1254582C1 for cyclo planters w/serial no. 14440 and below, plate planters w/serial no. 3700 and below by also ordering shoe, 1277777C1

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

used only w/shovel, 1254582C1 1/4" x 7/8", Coiled

1шт.

11

149171C2

DISC

DISK ASSY, 14 in., note C, order disk assy, 90850C91

2шт.

11

1279414C1

DISC

DISK ASSY, 14 in. hardfaced, used as LH leading disk on planter row unit

1шт.

28067R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

5/8 x 1-1/2 PHC type 8 LH

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

.656 x 1.00 x .054 hardened, shim to center furrow firming point between disks

4шт.

12

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball double disk opener, replaces 145161C92

2шт.

12

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

13

492709R1

CAP

bearing housing

2шт.

14

147436C93

SCRAPER

ASSY, LH

1шт.

14

147439C93

SCRAPER

ASSY, RH, includes ref no. 15

1шт.

26212R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT, 5/16 x 5/8 crg type 5

4шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 crg type 1

1шт.

9413977

NUT

5/16 PHC p/t lock type 8

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051, shim under rear bolt of scraper

1шт.

15

147438C2

HALF BLADE

BLADE, scraper, one per scraper

1шт.

147274C1

RIVET,4.78mm OD x 10mm L

3/16 x 3/8 special

2шт.

16

1261124C1

BRACKET

gauge wheel pivot

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

17

149173C1

PIN

gauge wheel

2шт.

18

1279098C1

ARM

depth wheel LH, replaces arm with bushing, 1264030C1

1шт.

18

1279099C1

ARM

depth wheel RH, replaces arm with bushing, 1264031C1

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

20704R1

WASHER

1.031 x 1.500 x .105

4шт.

373025R91

PIN ASSY.

PIN, quick attachable snap

2шт.

19

145049C1

BUSHING,25.7mm ID x 33.38mm OD x 63.5mm L

depth wheel arm, one per arm, used only with arms, 1264030C1 and 1264031C1

1шт.

1279444C91

WHEEL ASSY.

WHEEL ASSY, gauge, consists of ref nos 20, 21, 22, 23 and attaching hardware

2шт.

20

128558C91

BALL BEARING,30mm OD x 75mm L

gauge wheel

2шт.

19479R1

PIN,1/4" x 2", Coiled

2шт.

21

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

bearing sleeve

2шт.

22

128616C1

WHEEL

DISK, wheel

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

14шт.

23

128633C1

TYRE/TIRE

TIRE, disk opener gauge wheel

2шт.

24

1279508C1

BRACKET

wobble, replaces 147295C1

1шт.

21084R1

CLEVIS PIN

PIN, 3/4 x 1.796 clevis

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1.750 hd type 1

1шт.

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

1шт.

25

147276C3

BAR

ASSY, tension

1шт.

1277597C1

STUD

#12 x 3/4 barbed

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 hd type 5

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

26

147483C1

PLUG

hole

4шт.

27

147471C2

STUD

ROD, depth adjusting, note B, cyclo planters with serial no. 16800 and below, plate planters with serial no. 4200 and below

1шт.

28

149228C1

SPACER

DETENT ASSY, note B, cyclo planters with serial no. 16800 and below, plate planters with serial no. 4200 and below

1шт.

29

538709R1

SPRING WASHER

note B, cyclo planters with serial no. 16800 and below, plate planters with serial no. 4200 and below

1шт.

30

1264423C91

KNOB

ASSY, depth adjusting, note B, includes pins, cyclo planters with serial no. 16800 and below, plate planters with serial no. 4200 and below

1шт.

28020R1

PIN

1/4 x 1-1/4 hd type 5

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

1шт.

31

147425C3

SPRING

press wheel

1шт.

671034R1

PIN

1/2 x 1.500 hd type 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

32

149133C2

SUPPORT

spring anchor

1шт.

33

149138C1

BAR

press wheel arm

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8 x 1-1/8 crg type 1

2шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex flange lock

2шт.

34

149145C4

ARM

pivot

1шт.

35

149141C2

BUSHING,9.65mm ID x 15.88mm OD x 28.5mm L

pivot

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

36

1250875C2

TUBE,205, 47 mm Length

GUIDE ASSY, spring

1шт.

37

1264391C1

SPRING

forming

1шт.

37

149195C1

SPRING

forming, minimum tillage application only

1шт.

38

149192C1

COLLAR

1шт.

28412R1

SET

SCREW, 5/16 x 1/2 hd/pt pln s/h set

2шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

39

149176C2

DISC

DISK ASSY, covering, in order to convert to staggered covering disks, order parts accessory, 1263978C92

2шт.

40

128558C91

BALL BEARING,30mm OD x 75mm L

ga wheel

2шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

1279818C91

WHEEL ASSY.

WHEEL ASSY, press, consists of ref nos 41, 42, 43 and attaching hardware

1шт.

41

149212C1

TYRE/TIRE

TIRE, 6.5 x 12 in.

1шт.

42

149148C1

RIM

6.5 x 12 in.

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

43

140393C91

BALL BEARING,0.7465" ID x 1.5" OD x 2.5"

ball

1шт.

44

149221C1

SPACER

press wheel

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

19999R1

BOLT,Hex, 1/2" - 13 x 9 1/2", Gr 5

1/2 x 9-1/2 type 5

1шт.

45

147326C1

DECAL

GAUGE, depth

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

46

149170C2

FLANGED BEARING

FLANGE, bearing

2шт.

273160

DISC

1/4 x 1/2 pln f/hd sol

12шт.

47

141729C1

CHANNEL

spring mounting, note A

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

149439C1

SPECIAL BOLT,Spcl, Hex, 1/2" - 13 x 4.25", Gr 5

BOLT, hex-hd special, note A

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

48

141730C1

SPACER,10.34mm ID x 19.05mm OD x 7mm L

spring mounting channel, note A

2шт.

49

144847C1

PLUG

spring, note A

2шт.

50

140579C1

SPRING

linkage, note A

2шт.

51

1279684C1

ROD

depth adjusting, cyclo planters with serial no. 16801 and above, plate planters with serial no. 4201 and above

1шт.

52

25711R1

WASHER

.656 x 1.312 x .150 hdn, cyclo planters with serial no. 16801 and above, plate planters with serial no. 4201 and above

1шт.

53

1279107C1

STRAP

detent, cyclo planters with serial no. 16801 and above, plate planters with serial no. 4201 and above

1шт.

27310R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 h/whds tap

2шт.

54

1279740C91

KNOB

ASSY, detent (depth adjusting), includes pins, cyclo planters with serial no. 16801 and above, plate planters with serial no. 4201 and above

1шт.

28020R1

PIN

1/4 x 1-1/4 hd type 5

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

1шт.

55

149172C2

DISC

DISK, 355 x 3mm S, 40mm opener, part of disk assy, 149171C2

2шт.

1279790C91

KIT

PACKAGE, detent conversion, 2 rows, cyclo planters with serial no. 16800 and below, plate planters with serial no. 4200 and below, consists of

1шт.

1279740C91

KNOB

ASSY, detent

2шт.

1279684C1

ROD

depth adjusting

2шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

2шт.

1279107C1

STRAP

detent

2шт.

27310R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 h/whds tap, instructions (NSS)

4шт.

1263978C92

PACKAGE

PARTS ACCESSORY, staggered covering disk, 2 rows, consists of

1шт.

1279519C1

ARM

pivot long

2шт.

1279520C1

ARM

pivot short

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.

21756R1

WASHER

.469 x .750 x .027

2шт.

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

BEARING, ball

2шт.

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

spacer

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

2шт.

379990R1

HEADED PIN

PIN, 3/8 x 2. hd type 5

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

1277891C91

DISC

DISK ASSY, covering

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8 PHC p/t lock type 5

2шт.

28653R1

BOLT,Hex, 5/8"-11 x 1 3/4", Gr 5

5/8 x 1-3/4 LH znd type 5

2шт.

28652R1

LOCK NUT,5/8"-11, GB, LH

NUT, 5/8 p/t LH PHC type 5

2шт.

492709R1

CAP

bearing housing

4шт.

1263977C1

BOLT

3/8-16 x 3/4 flanged hex-hd p/t, double disk opener shoe, instructions, installing (NSS)

4шт.
