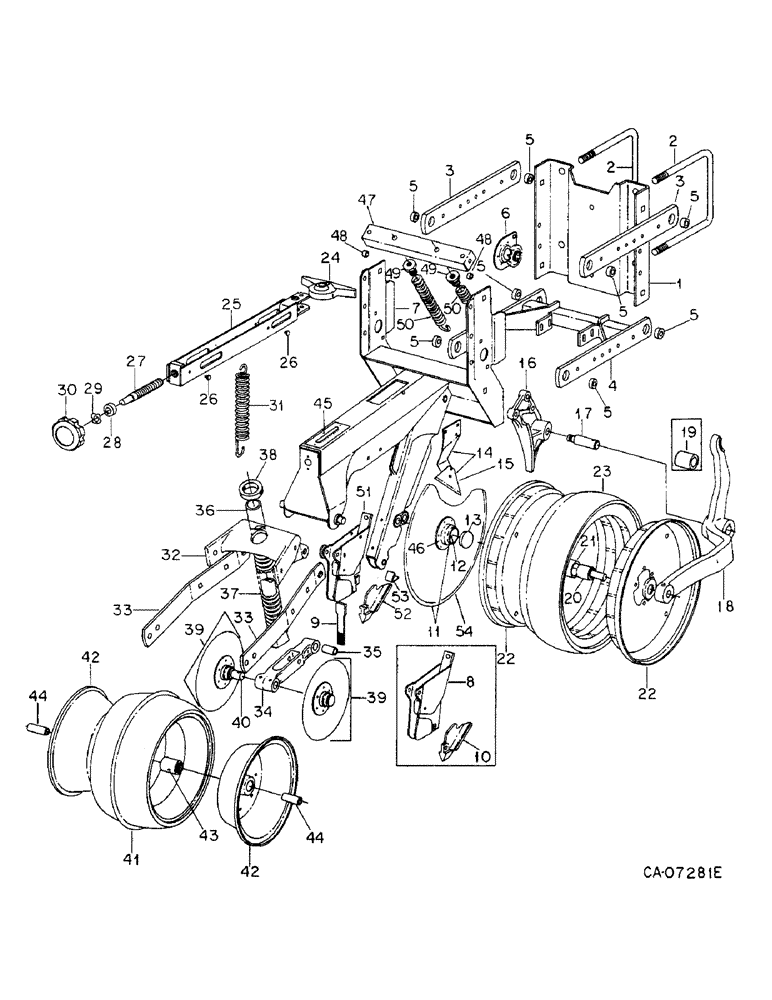

Запчасти Case IH 800 (08-02) - GROUND TOOLS , PLANTER UNIT, BASIC, NOTE A (09) - CHASSIS/ATTACHMENTS

1

141728C1

CHANNEL

head bracket

1шт.

2

1250813C1

U-BOLT

replaces 493837R2, planters w/7 x 7 tool bars

2шт.

2

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

replaces 492942R2, planters w/5 x 7 tool bars

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

3

137507C3

BAR

linkage

2шт.

4

147354C2

SUPPORT

ASSY, linkage lower

1шт.

5

137512C2

BUSHING

linkage pivot

8шт.

28428R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 znp crg type 5

4шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

4шт.

20601R1

WASHER

.531 x 1.250 x .105

8шт.

19696R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 p/t lock type 5

8шт.

6

140920C1

GEAR, IDLER

SPROCKET, bearing 12T, standard

1шт.

6

1261576C1

SPROCKET ASSY.

SPROCKET, bearing 14T, seed growers special

1шт.

6

1264086C1

SPROCKET ASSY.

SPROCKET, bearing 16T, seed growers special

1шт.

6

1261577C1

GEAR, IDLER

SPROCKET, bearing 18T, seed growers special

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

7

147317C4

FRAME

ASSY, planter unit includes ref 16

1шт.

8

147207C4

SHOE

ASSY, double disk opener, order shoe assy, 1277777C1, shovel, 1277776C1 and spacer, 1279100C1

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

9

140817C1

DEFLECTOR

seed

1шт.

10

145182C2

FROG

scraper, shovel, order shovel, 1277776C1, shoe assy, 1277777C1 and spacer, 1279100C1

1шт.

71769C1

FLANGE BOLT

SCREW, 3/8 x 3/4 hex-hd flange

2шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

11

149171C2

DISC

DISK ASSY, 14 in., order disk assy, 90850C91

2шт.

11

1279414C1

DISC

DISK ASSY, 14 in., hardfaced, used as LH leading disk on planter row unit

1шт.

12

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball double disk opener, replaces 145161C92

2шт.

12

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

28067R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

5/8 x 1-1/2 PHC type 8 LH

1шт.

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

21796R1

WASHER

.656 x 1.000 x .054

4шт.

22258R1

WASHER

.656 x 1.000 x .027

2шт.

13

492709R1

CAP

bearing housing

2шт.

14

147436C93

SCRAPER

ASSY, LH

1шт.

14

147439C93

SCRAPER

ASSY, RH

1шт.

26212R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 5/8", Gr 5

BOLT, 5/16 x 5/8 crg type 5

4шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 crg type 1

2шт.

9413977

NUT

5/16 PHC p/t lock type 8

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

8шт.

15

147438C2

HALF BLADE

BLADE, scraper, one per scraper

1шт.

147274C1

RIVET,4.78mm OD x 10mm L

3/16 x 3/8 special

2шт.

16

149201C1

BRACKET, gauge wheel pivot

1шт.

item #16, 149201c1, must order 1277618c91, see notes a on next page. djo 6/4/96

1шт.

117045C1

LOCK BOLT

BOLT, 3/8 x 1 in. w/lockpatch

1шт.

17

149173C1

PIN

gauge wheel

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

18

147346C3

ARM ASSY.

ARM W/BUSHINGS, 145049C1, wheel LH, order arm, 1277898C1

1шт.

18

1277898C1

ARM

depth wheel LH

1шт.

18

147347C3

ARM ASSY.

ARM W/BUSHINGS, 145049C1, wheel RH, order arm, 1277899C1

1шт.

18

1277899C1

ARM

depth wheel RH

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

20704R1

WASHER

1.031 x 1.500 x .105

4шт.

373025R91

PIN ASSY.

PIN, quick attachable snap

2шт.

19

145049C1

BUSHING,25.7mm ID x 33.38mm OD x 63.5mm L

depth wheel arm, one per arm, used only with arms, 147346C3 and 147347C3

1шт.

20

128558C91

BALL BEARING,30mm OD x 75mm L

gauge wheel

2шт.

19479R1

PIN,1/4" x 2", Coiled

2шт.

21

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

bearing sleeve

2шт.

22

128616C1

WHEEL

DISK, wheel

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

14шт.

23

128633C1

TYRE/TIRE

TIRE, disk opener gauge wheel

2шт.

24

1279508C1

BRACKET

wobble, replaces 147295C1

1шт.

21084R1

CLEVIS PIN

PIN, 3/4 x 1.796 clevis

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1.750 hd type 1

1шт.

544063R1

HAIR PIN COTTER

PIN, quick attachable cot.

1шт.

25

147276C3

BAR

ASSY, tension

1шт.

443102

PIN, #12 x 3/4 rdh gr/dr

1шт.

23173R1

CLEVIS PIN

PIN, 1/2 x 2.750 hd type 5

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

26

147483C1

PLUG

hole

4шт.

27

147471C2

STUD

ROD, depth adjusting, note C

1шт.

28

149228C1

SPACER

DETENT ASSY, note C

1шт.

29

538709R1

SPRING WASHER

note C

1шт.

30

1264423C91

KNOB

ASSY, depth adjusting, note C, includes pins

1шт.

28020R1

PIN

1/4 x 1-1/4 hd type 5

1шт.

21858R1

COTTER PIN,1/8" x 1/2"

1/8" x 1/2"

1шт.

31

147425C3

SPRING

press wheel

1шт.

671034R1

PIN

1/2 x 1.500 hd type 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

32

149133C2

SUPPORT

spring anchor

1шт.

33

149138C1

BAR

press wheel arm

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8 x 1-1/8 crg type 1

2шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex flange lock

2шт.

34

149145C4

ARM

pivot

1шт.

35

149141C2

BUSHING,9.65mm ID x 15.88mm OD x 28.5mm L

pivot

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

36

1250875C2

TUBE,205, 47 mm Length

GUIDE ASSY, spring

1шт.

37

1264391C1

SPRING

forming

1шт.

37

149195C1

SPRING

forming, for minimum tillage only

1шт.

38

149192C1

COLLAR

1шт.

28412R1

SET

SCREW, 5/16 x 1/2 hd/pt pln s/h set

2шт.

21573R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2. hd type 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

39

149176C2

DISC

DISK ASSY, covering, in order to convert to staggered covering disks, order parts accessory, 1263978C92

2шт.

447-48

RIVET,FH, 1/4" x 1/2"

plated

12шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

40

128558C91

BALL BEARING,30mm OD x 75mm L

ga wheel

2шт.

41

149212C1

TYRE/TIRE

TIRE, 6.5 x 12 in.

1шт.

42

149148C1

RIM

6.5 x 12 in.

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

43

140393C91

BALL BEARING,0.7465" ID x 1.5" OD x 2.5"

ball

1шт.

44

149221C1

SPACER

press wheel

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

19999R1

BOLT,Hex, 1/2" - 13 x 9 1/2", Gr 5

1/2 x 9-1/2 type 5

1шт.

45

147326C1

DECAL

GAUGE, depth

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

46

149170C2

FLANGED BEARING

FLANGE, bearing

2шт.

447-48

RIVET,FH, 1/4" x 1/2"

1/4 x 1/2 pln f/hd sol

12шт.

47

141729C1

CHANNEL

spring mounting, note A

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

149439C1

SPECIAL BOLT,Spcl, Hex, 1/2" - 13 x 4.25", Gr 5

BOLT, hex-hd special

2шт.

120396

WASHER

.531 x 1.062 x .074

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

48

141730C1

SPACER,10.34mm ID x 19.05mm OD x 7mm L

spring mounting channel, note B

2шт.

49

144847C1

PLUG

spring, note B

2шт.

50

140579C1

SPRING

linkage, note B

2шт.

51

1277777C1

SHOE (ASSY)

SHOE ASSY, double disk opener

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

52

1277776C1

SHOVEL

firming

1шт.

71769C1

FLANGE BOLT

SCREW, 3/8 x 3/4 hex-hd flange

2шт.

53

1279100C1

SPACER

sheet metal row unit shovel

1шт.

54

149172C2

DISC

DISK, 355 x 3mm S, 40mm opener, part of disk assy, 149171C2

2шт.

1277618C91

PACKAGE

row unit conversion, used to convert a sheet metal row opener to a cast opener, consists of

1шт.

1254598C2

FRAME ASSY

planter unit

1шт.

1261124C1

BRACKET

gauge wheel pivot

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

1279098C1

ARM

wheel LH

1шт.

1279099C1

ARM

wheel RH

1шт.

1277776C1

SHOVEL

firming

1шт.

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

.656 x 1.00 x .054 hardened

6шт.

1277777C1

SHOE (ASSY)

SHOE ASSY, double disk opener

1шт.

1279790C91

KIT

PACKAGE, detent conversion, 2 rows, consists of

1шт.

1279740C91

KNOB

ASSY, detent

2шт.

1279684C1

ROD

depth adjusting

2шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

2шт.

1279107C1

STRAP

detent

2шт.

271310R1

SCREW, no. 10-16 x 3/8 h/whds tap, instructions (NSS)

4шт.

1263978C92

PACKAGE

PARTS ACCESSORY, staggered covering disk, 2 rows, consists of

1шт.

1279519C1

ARM

pivot long

2шт.

1279520C1

ARM

pivot short

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

4шт.

21756R1

WASHER

.469 x .750 x .027

2шт.

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

BEARING, ball

2шт.

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

spacer

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

2шт.

379990R1

HEADED PIN

PIN, 3/8 x 2. hd type 5

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

1277891C91

DISC

DISK ASSY, covering

4шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8 PHC p/t lock type 5

2шт.

28653R1

BOLT,Hex, 5/8"-11 x 1 3/4", Gr 5

5/8 x 1-3/4 LH znd type 5

2шт.

28652R1

LOCK NUT,5/8"-11, GB, LH

NUT, 5/8 p/t LH PHC type 5

2шт.

492709R1

CAP

bearing housing

4шт.

1263977C1

BOLT

3/8-16 x 3/4 flanged hex-hd p/t, double disk opener shoe, instructions, installing (NSS)

4шт.
