(07-41[1]) - SEED HANDLING, PEANUT PLANTING ATTACHMENT UNITS F, G, K, L, M, N, P, Q, T, AA AND AB

Запчасти Case IH 800 (07-41[1]) - SEED HANDLING, PEANUT PLANTING ATTACHMENT UNITS F, G, K, L, M, N, P, Q, T, AA AND AB (09) - CHASSIS/ATTACHMENTS

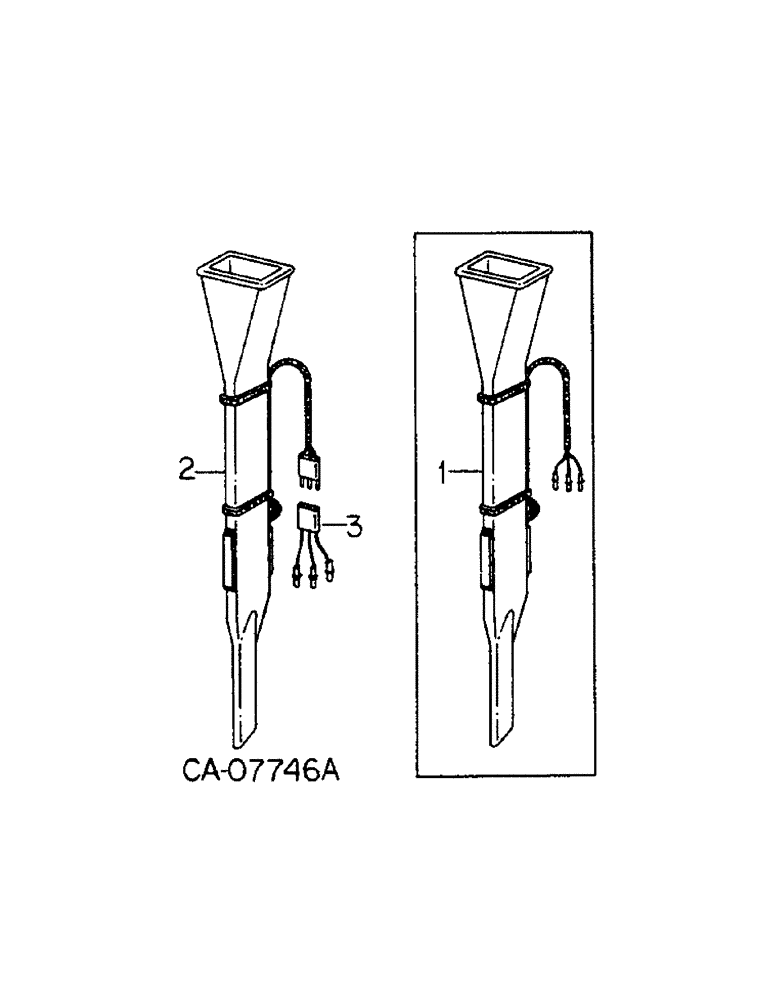

Схема запчастей Case IH 800 - (07-41[1]) - SEED HANDLING, PEANUT PLANTING ATTACHMENT UNITS F, G, K, L, M, N, P, Q, T, AA AND AB (09) - CHASSIS/ATTACHMENTS
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1254245C1

TUBE,540 mm Length

W/SENSOR, peanut seed, order seed tube, 245809C1 and adapter harness, 245746C1

1шт.

2

245809C1

TUBE

W/SENSOR, peanut seed

1шт.

3

245746C1

HARNESS

ASSY, seed sensor adapter, for use with new sensor on old monitor harness

1шт.

3

245751C1

CABLE

HARNESS ASSY, seed sensor adapter, for use with old sensor on new monitor harness

1шт.

Выбрано товаров: 4
