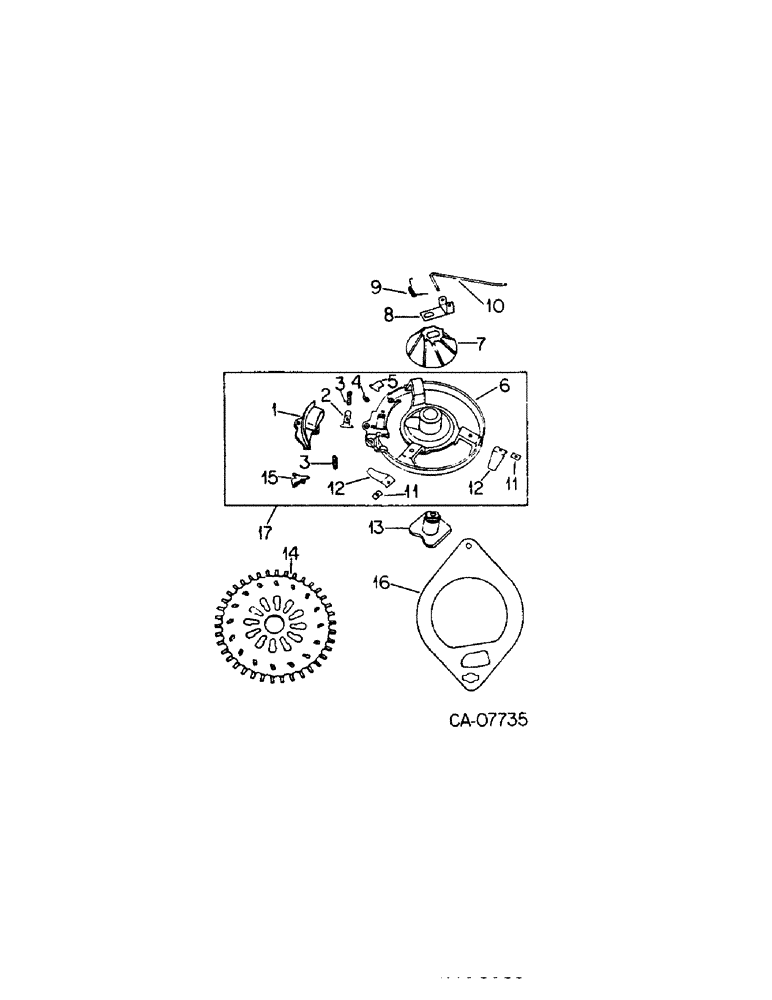

Запчасти Case IH 800 (07-40) - SEED HANDLING, COTTON PLANTING EQUIPMENT, UNITS F,G,K-M,N,P,Q,T,AA&AB, QUANTITY SHOWN PER ROW (09) - CHASSIS/ATTACHMENTS

1

134341C1

CAP

pawl cover

1шт.

19569R1

BOLT,Hex, 5/16"-18 x 7/8", G2

5/16 x 7/8 type 1

1шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 int tooth lock

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 jam type 5

1шт.

2

621721R6

KNOCKER

1шт.

3

PO51

SPRING

cutoff & knocker

2шт.

4

66584D

FITTING

3/16 ball check lub

1шт.

5

13607AB

HINGE

GATE, hinged

1шт.

6

147328C92

BOTTOM

W/FITTING

1шт.

7

621716R1

PLATE

cotton agitator

1шт.

8

621725R93

BRACKET

ARM ASSY, agitator

1шт.

9

PO26760

SPRING

agitator

1шт.

10

622259R1

ARM

spring agitator

1шт.

11

445135

NUT

10-24 R/P style

2шт.

12

PO16047A

VALVE SPRING

SPRING, seed

2шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, no. 10 x 1/2 znp r/hds mach

2шт.

13

492753R1

BLOCK DRIVER

STUD, agitator drive

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

551173R1

WASHER

13/32 x 1-1/8 x 16 ga

1шт.

23041R1

WASHER

1.156 x 1.500 x .054

1шт.

14

SEED PLATES, refer to seed plates group 01

1шт.

15

621723R1

KNIFE

CUTOFF

1шт.

16

147215C1

LARGE PLATE

PLATE, hopper bottom

1шт.

17

145112C92

BOTTOM

ASSY, cotton hopper

1шт.
