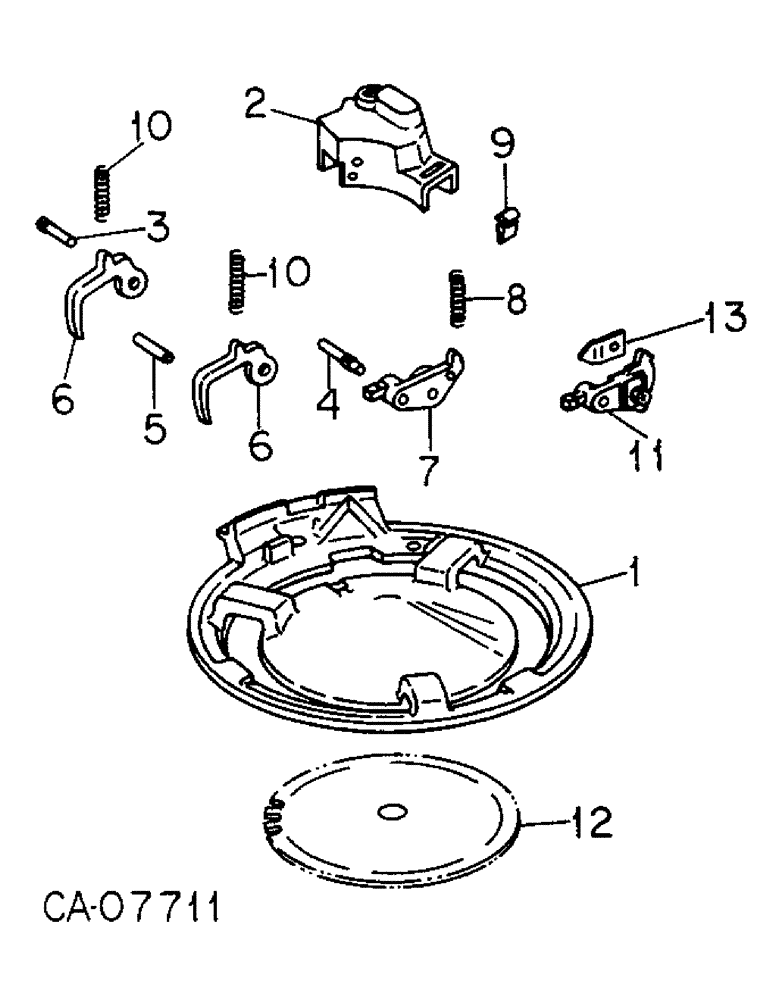

Запчасти Case IH 800 (07-39) - SEED HANDLING, CORN & BEET PLANTING EQUIP. UNITS F, G, K-Q, T, AA & AB, UNITS A-E, H, J, S, U, V (09) - CHASSIS/ATTACHMENTS

1

1279409C2

BOTTOM

combination hopper, replaces 136984C3

1шт.

2

484871R91

SERVICE KIT

corn double pawl

1шт.

2

484884R92

COVER

ASSY, beet double pawl

1шт.

3

484883R1

PIN

3/16 x 1 knurled hd, cutoff pawl pivot

1шт.

4

484882R1

PIN

3/16 x 1-1/2 knurled hd, knocker arm pivot

1шт.

5

22433R1

PIN,3/16" x 1 5/16"

3/16 x 1-1/4 C-Z champered str, cutoff pawl stop

1шт.

6

484875R1

PAWL

corn cutoff

2шт.

6

484874R1

PAWL

beet cutoff

2шт.

7

484885R21

ARM

ASSY, corn roller knocker

1шт.

7

484872R21

ARM

ASSY, beet roller knocker

1шт.

376308R1

SPRING WASHER

.342 diameter, corn

1шт.

484808R1

SCREW, 10 x 1/2 C-Z slt-pan-hd tap

1шт.

NLS

NO LONGER SERVICED

.188 x .438 x .036

1шт.

8

484881R1

SPRING

cutoff pawl, 2 used for corn planting, 3 used for beet planting

1шт.

9

484879R1

DOOR

GATE, double pawl cover

1шт.

180089

SPRING

5/16 x 2-1/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 int tooth lock

1шт.

10

542320R1

SPRING

knocker pawl

1шт.

11

484878R12

ARM

ASSY, small seed knocker

1шт.

12

SEED PLATES, refer to seed plates group 01

1шт.

13

484880R2

STRIP

small seed knocker

1шт.

436694

SCREW,Slotted Pan Hd, #8-32 x 7/16"

no. 8 x 7/16 znp p/hds mach

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

120622

NUT,#8-32

1шт.
