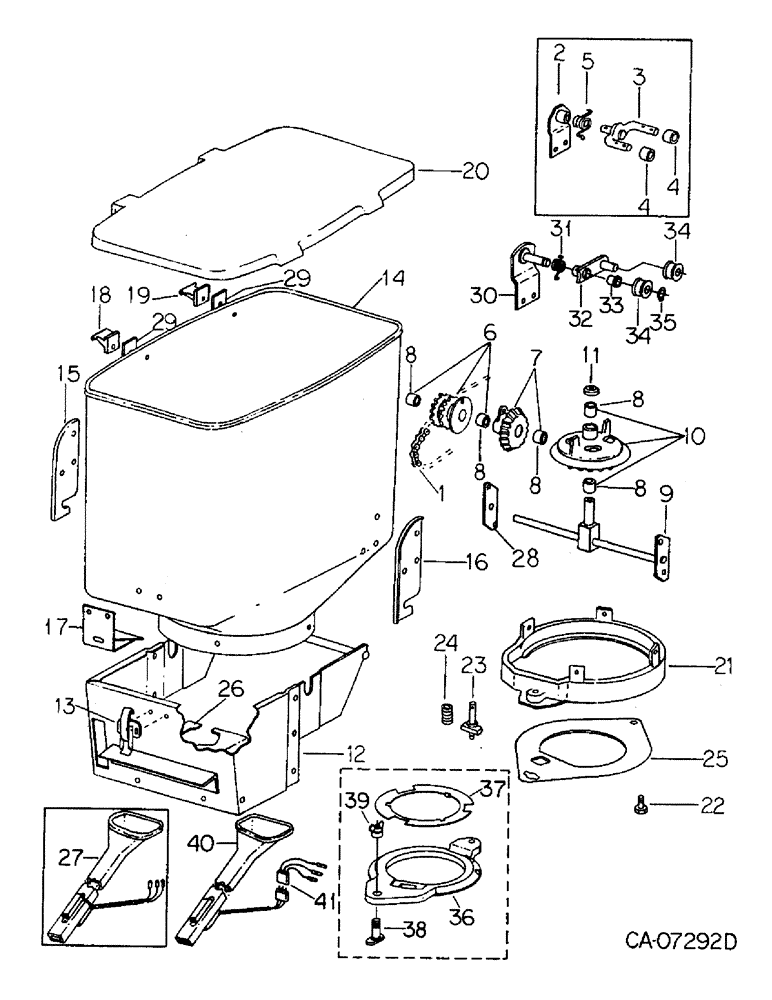

Запчасти Case IH 800 (07-36) - SEED HANDLING, PLANTER UNIT, PLATE, UNIT F, G, K-N P, Q, T, AA & AB, UNITS A-E, H, J, S, U, V-Z (09) - CHASSIS/ATTACHMENTS

1

CHAIN, plate drive, use 61 links from 10 ft. roll marked 475879R91 and 1 connecting link, 1306D

1шт.

1306D

CHAIN LINK

LINK, #41 single pitch connecting

1шт.

2

141663C2

ARM ASSY.

ARM ASSY, tightener, plate, built 1981 and 1982, order package, 1277843C91

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

3

141665C1

ARM

IDLER ASSY, arm, built 1981 and 1982, order package, 1277843C91

1шт.

4

141653C1

ROLLER

idler, built 1981 and 1982, order package, 1277843C91

2шт.

22265R1

WASHER

.531 x 1.250 x .027

8шт.

21903R1

WASHER

.531 x .750 x .054

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

5

140866C2

SPRING

idler unit, built 1981 and 1982

1шт.

6

1279285C91

SPROCKET ASSY.

SPROCKET ASSY, 12T, includes two bearings, 140904C1, replaces 140906C91

1шт.

7

140907C1

GEAR

ASSY, sed hopper drive pinion, includes bearing, 140904C1

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

8

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

fiber glide

5шт.

9

140785C1

SHAFT

ASSY, ring gear

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

4шт.

22258R1

WASHER

.656 x 1.000 x .027

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

21796R1

WASHER

.656 x 1.000 x .054

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

10

140927C2

GEAR

ASSY, ring, includes two bearings, 140904C1

1шт.

11

136975C1

WASHER

bottom centering

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

12

149289C3

SHEET

SUPPORT ASSY, plate unit, sheet

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.

13

669184R1

CLAMP

1шт.

443874

BRACKET

no. 10 x 1/2 znp h/hd mach

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

1-24 C-Z flange lock

2шт.

14

134252C1

HOPPER

seed

1шт.

15

144878C2

SUPPORT

pivot, bracket LH

1шт.

16

144879C2

SUPPORT

pivot, bracket RH

1шт.

134289C1

RUBBER WASHER

hopper

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

6шт.

20893R1

WASHER

.344 x 1.000 x .105

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

17

1277800C1

SUPPORT

ASSY, strike, replaces 140895C2

1шт.

134289C1

RUBBER WASHER

hopper

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

18

141111C2

HINGE

hopper lid left

1шт.

19

1254172C2

HINGE

hopper lif right

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper

2шт.

436733

BOLT

SCREW, no. 10 x 5/8 znp p/hds mach

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

2шт.

20

137128C3

COVER

seed hopper

1шт.

21

134343C1

RING

comb hopper bottom

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

4шт.

22

140813C1

BOLT,3/8" x 1 1/4"

plate pivot

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

147275C1

NUT

3/8-16 flange lock

1шт.

23

147216C1

PIN

locating and locking

1шт.

24

147225C1

SPRING

hopper bottom

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

22969R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

1шт.

25

147213C3

LARGE PLATE

PLATE, hopper bottom, for corn & other seed

1шт.

25

147214C2

PLATE

hopper bottom grooved, for large corn seed

1шт.

25

147215C1

LARGE PLATE

PLATE, hopper bottom, for rotary cone, cotton and peanut seeds

1шт.

Item #25-- the part substitution list is not complete-- also supply ((1)- 496-21053 and (1)-1333763c1) to be used with the new thicker plate (ref-1344847c1 plate)Note item #24 (147225c1-will no longer be used.

1шт.

26

140897C1

SUPPORT

seed tube, serial no. 2313 and below

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

27

145064C1

TUBE,484 mm Length

W/SENSOR, seed, order seed tube, 245808C1 and adapter harness, 245746C1, for corn and other seeds

1шт.

27

1264294C1

PLASTIC-RUBBER TUBE,600, 45 mm Length

TUBE, seed, no sensor or wiring, for corn and other seeds

1шт.

27

1261152C1

TUBE

W/SENSOR, beet seed, order seed tube, 245744C1 and adapter harness, 245746C1

1шт.

27

1264295C1

TUBE

beet seed, no sensor or wiring

1шт.

27

1254245C1

TUBE,540 mm Length

W/SENSOR, seed, order seed tube, 245809C1 and adapter harness, 245746C1, for peanut and other large seeds

1шт.

27

1264296C1

TUBE

seed, no sensor or wiring, for peanut and other large seeds

1шт.

28

140788C1

PLATE ASSY.

PLATE

1шт.

29

1254428C1

PAD

hopper lid hinge

2шт.

30

1277838C1

LEVER

ARM ASSY, tightener, plate, serial no. 3510 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

31

1277854C1

SPRING

idler unit, serial no. 3510 and above

1шт.

32

1277658C1

LEVER

IDLER ASSY, arm, serial no. 3510 and above

1шт.

33

1277785C1

BUSHING,15.9mm ID x 17.45mm OD x 28.57mm L

NYLINER, idler, serial no. 3510 and above

1шт.

34

1277653C1

IDLER

ROLLER, idler, serial no. 3510 and above

1шт.

551177R1

WASHER

.656 x 1.250 x .054 pln

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

35

384098R1

SNAP RING,#62, Ext

Ring, Snap, , serial no. 3510 and above #62, Ext

1шт.

36

1279042C1

PLATE

hopper bottom, beet planting, serial no. 3701 and above

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

37

464256R2

WASHER

SHIM, seed plate, beet planting, serial no. 3701 and above

1шт.

38

1279048C1

LOCK BOLT,1/2" - 13 x 67mm

BOLT, locating and attaching, beet planting, serial no. 3701 and above

1шт.

39

1279201C1

NUT

ASSY, locking, beet planting, serial no. 3701 and above

1шт.

40

245808C1

TUBE ASSY.

TUBE W/SENSOR, seed, for corn and other seeds

1шт.

40

1264294C1

PLASTIC-RUBBER TUBE,600, 45 mm Length

TUBE, seed, no sensor or wiring

1шт.

40

245744C1

TUBE

W/SENSOR, beet seed

1шт.

40

1264295C1

TUBE

beet seed, no sensor or wiring

1шт.

40

245809C1

TUBE

W/SENSOR, seed, for peanut and other large seeds

1шт.

40

1264296C1

TUBE

seed, no sensor or wiring, for peanut and other large seeds

1шт.

41

245746C1

HARNESS

ASSY, seed sensor adapter, for use with new sensor on old monitor harness

1шт.

41

245751C1

CABLE

HARNESS ASSY, seed sensor adapter, for use with old sensor on new monitor harness

1шт.

1277843C91

PACKAGE

planter unit idler, serial no. 3509 and below, consists of ref nos 30 through 35 and attaching hardware

1шт.
