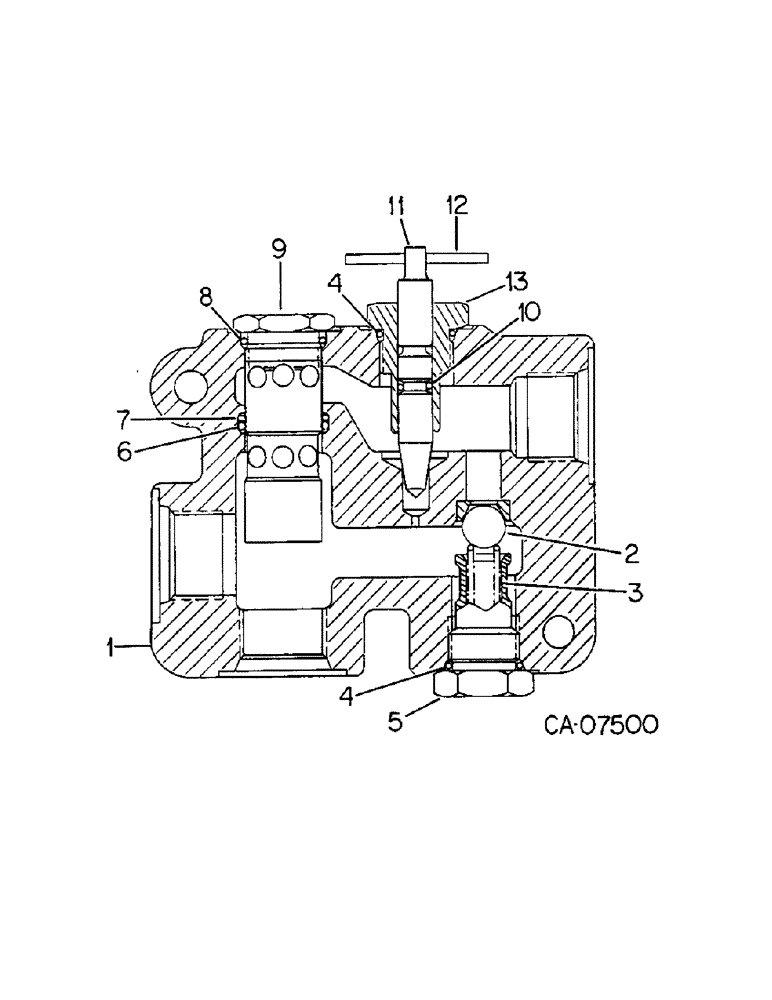

Запчасти Case IH 800 (07-35) - SEED HANDLING, FLOW CONTROL AND RELIEF VALVE, UNITS E, J, R, W, X AND Y (09) - CHASSIS/ATTACHMENTS

127743C91

VALVE

ASSY, flow control & relief

1шт.

1

BODY, flow control, not serviced separately order 127743C91

1шт.

2

17016R1

BALL,1/2" Dia

1шт.

3

262253C1

SPRING

check ball

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

check ball plug

2шт.

5

59060C1

PLUG

check ball

1шт.

6

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

7

378985R2

BACK-UP RING

RING, backup

1шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

9

382928R91

VALVE

ASSY, cushion relief

1шт.

10

145637C1

O-RING,0.237" ID x 0.103", 70 Duro

adj scrwe

1шт.

11

127745C1

ADJUSTMENT SCREW,3/8" - 24 x 59.18mm

adj

1шт.

12

17165R1

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, , CAD 1/8" x 1 3/4", Slotted

1шт.

13

127744C1

RETAINER,7/8" - 14 x 30mm, UNC

RETAINER, adj screw

1шт.
