(07-35[1]) - SEED HANDLING, PLATFORM ATTACHMENT UNITS A THRU E, H, J, S, U, V, W, X, Y AND Z

Запчасти Case IH 800 (07-35[1]) - SEED HANDLING, PLATFORM ATTACHMENT UNITS A THRU E, H, J, S, U, V, W, X, Y AND Z (09) - CHASSIS/ATTACHMENTS

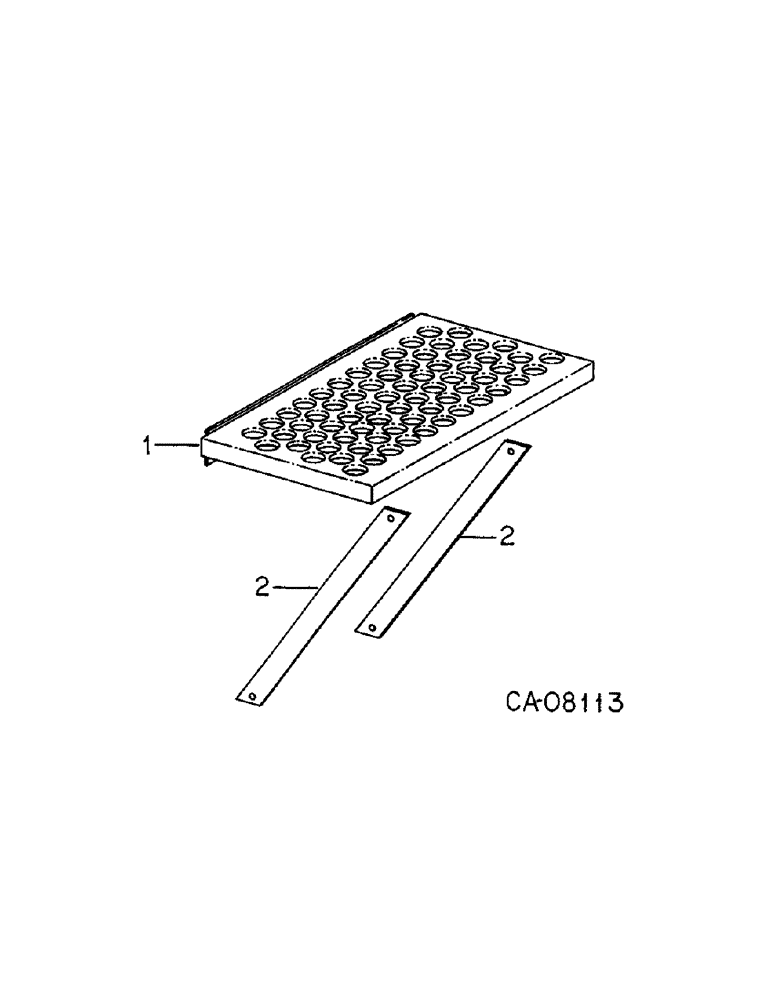

Схема запчастей Case IH 800 - (07-35[1]) - SEED HANDLING, PLATFORM ATTACHMENT UNITS A THRU E, H, J, S, U, V, W, X, Y AND Z (09) - CHASSIS/ATTACHMENTS
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1254178C1

PLATFORM

ASSY

1шт.

2

1254180C1

BAR

platform

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.
