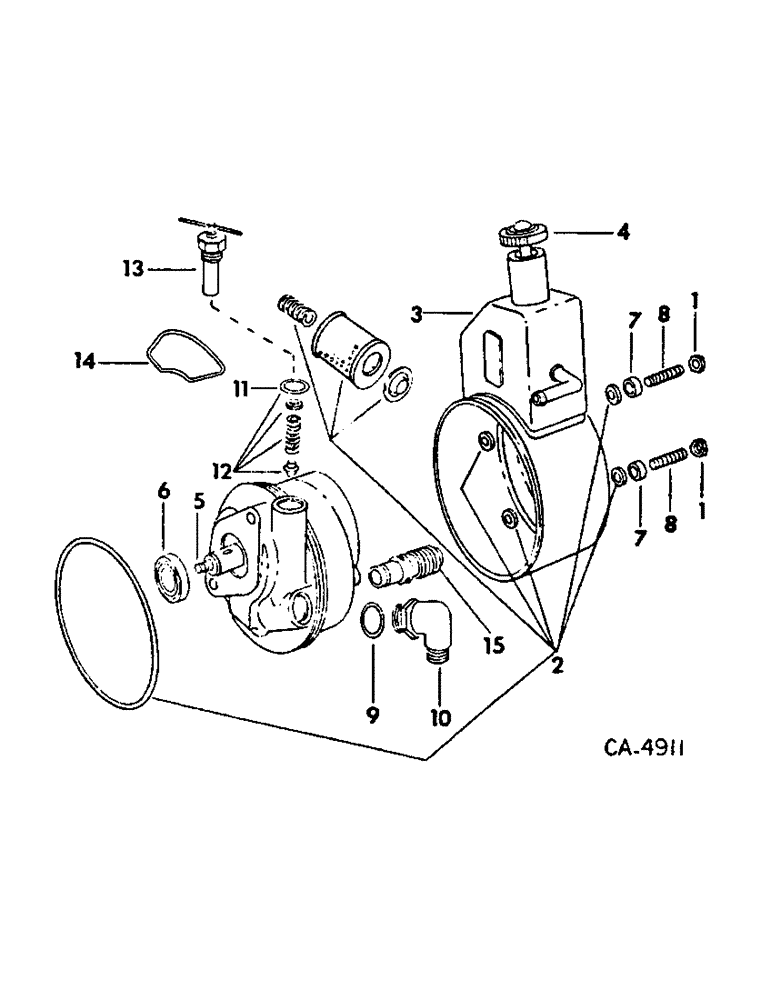

Запчасти Case IH 800 (07-32) - SEED HANDLING, HYDRAULIC PUMP, 1000 PRM PTO, UNITS A THRU D, H, S, U, V AND Z (09) - CHASSIS/ATTACHMENTS

149368C91

PUMP

W/PRODUCT GRAPHIC, hydraulic

1шт.

new pump is 1986017c1.

1шт.

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149368C91

1шт.

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

145167C1

DECAL

PRODUCT GRAPHIC, warning, service parts are

1шт.

1

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock, reservoir lock

2шт.

2

507809C91

FILTER, ENGINE OIL

KIT, hydraulic pump filter

1шт.

new filter is 1543177c1

1шт.

3

149373C91

RESERVOIR

W/PRODUCT GRAPHIC

1шт.

3

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149373C91

1шт.

3

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

145167C1

DECAL

PRODUCT GRAPHIC, warning

1шт.

4

467536C91

CAP

W/GAGE ASSY, filler

1шт.

new filler cap is 1543174c1

1шт.

#4 If looking for a bushing that rides on this shaft it is a NSS that is part of the pump body. dmb 4-10-97.

1шт.

5

62226C1

SHAFT

pump

1шт.

62385C1

RING

snap

2шт.

6

177431H1

OIL SEAL

oil

1шт.

new pump seal kit is 1543172c1

1шт.

7

58598C1

SPACER

reservoir

2шт.

8

58597C1

STUD

reservoir

2шт.

new reservoir seal kit is 1543173c1

1шт.

new reservoir is 1543176c1 (per FEC D3841B.)

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, class 6 (replaces 570828C1)

1шт.

10

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 znd 37 deg hyd flared tube adj str-thd 90 deg

1шт.

11

62227C1

O-RING,0.755" ID x 0.949" OD x 0.097" Width

O-RING, throttle valve stem

1шт.

12

62230C1

KIT

throttle valve

1шт.

13

62229C2

KIT

throttle valve stem

1шт.

14

62384C1

KIT

O-RING

4шт.

15

62414C1

VALVE

pressure relief

1шт.

479187C92

PACKAGE

KIT, hydraulic pump gasket service, consists of O-ring (NSS), O-ring (NSS)

1шт.

507793C1

GASKET

O-RING, (4) O-ring (NSS)

1шт.

507811C1

GASKET

O-RING, oil seal (NSS), (2) sealing washer (NSS), filter (NSS), (4) O-ring (old stylc) (NSS)

1шт.

507792C1

NUT

FLANGED NUT, instructions (NSS)

2шт.
