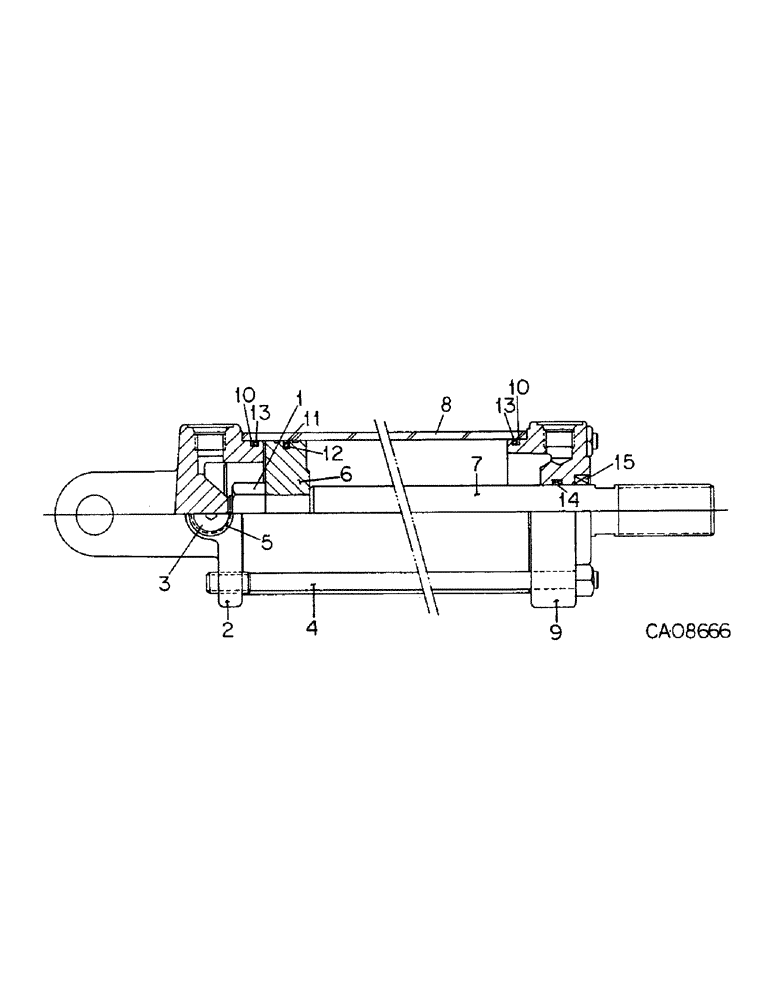

Запчасти Case IH 800 (04-06) - HITCH, HYDRAULIC CYLINDER, HITCH, 3-1/2 X 8 IN. DOUBLE ACTING UNITS W AND X (04) - ELECTRICAL SYSTEMS

1267167C92

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, hitch

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC p/t lock type 8

1шт.

2

1272825C1

HEAD

hyd cylinder rear

1шт.

3

224582C1

PLUG

3/4-16 str thd O-ring boss

1шт.

4

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT, hyd cylinder tie

4шт.

102637

NUT,1/2"-13, G5

4шт.

5

O-RING (NSS), 1/2 OD tube class 6, order kit, 79980C1

1шт.

6

145422C2

PISTON

hyd cylinder

1шт.

7

1285758C1

ROD

hyd cylinder piston

1шт.

8

SLEEVE (NSS), order cylinder assy

1шт.

9

1272826C1

HEAD

hyd cylinder front

1шт.

10

WASHER (NSS), back-up, order kit, 79980C1

2шт.

11

SEAL (NSS), piston, order kit, 79980C1

1шт.

12

O-RING (NSS), 3 x 3-3/16 class 5, piston, order kit, 79980C1

1шт.

13

O-RING (NSS), 3-1/4 x 3-1/2 class 6, order kit, 79980C1

1шт.

14

SEAL (NSS), piston rod urethane, order kit, 79980C1

1шт.

15

SEAL (NSS), piston rod wiper, order kit, 79980C1

1шт.
