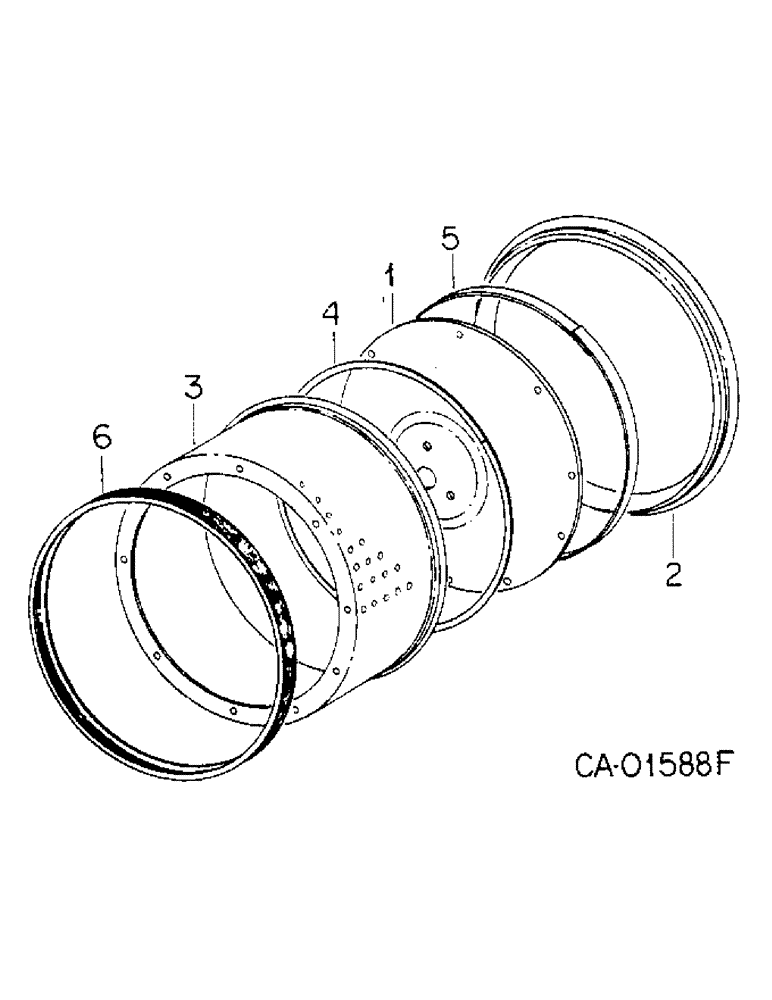

Запчасти Case IH 800 (07-20) - SEED HANDLING, SEED DRUM, UNITS A THRU E, H, J, R, S, U, V, W, X, Y AND Z, ONE PER MODULE (09) - CHASSIS/ATTACHMENTS

1

145113C1

CAP

end

1шт.

27115R1

BOLT,Oval, 10" - 24 x 5/8"

SCREW, no. 10 x 5/8 PHC O/HDCR mach

8шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

8шт.

2

100589C1

SEAL

drum, package of five

1шт.

3

DRUM, seed, serviced only as a machine attachment

1шт.

4

SEAL, drum end, .06 x .31 x 63.5 in., make from 200 ft. roll marked 57554C1

1шт.

5

60303C4

RING, SNAP

RING, seal retaining

1шт.

6

57669C3

BELT

Seed drum, Units A, B, E, J, R, S, U, W, Y and Z

1шт.

63280C1

PACKAGE

seed drum belt, package contains belt for two rows for 36 hole drums only, available to aid in planting of long slender corn or corn with butterfly tips, consists of belt (NSS), fastener (NSS), instructions (NSS)

1шт.
