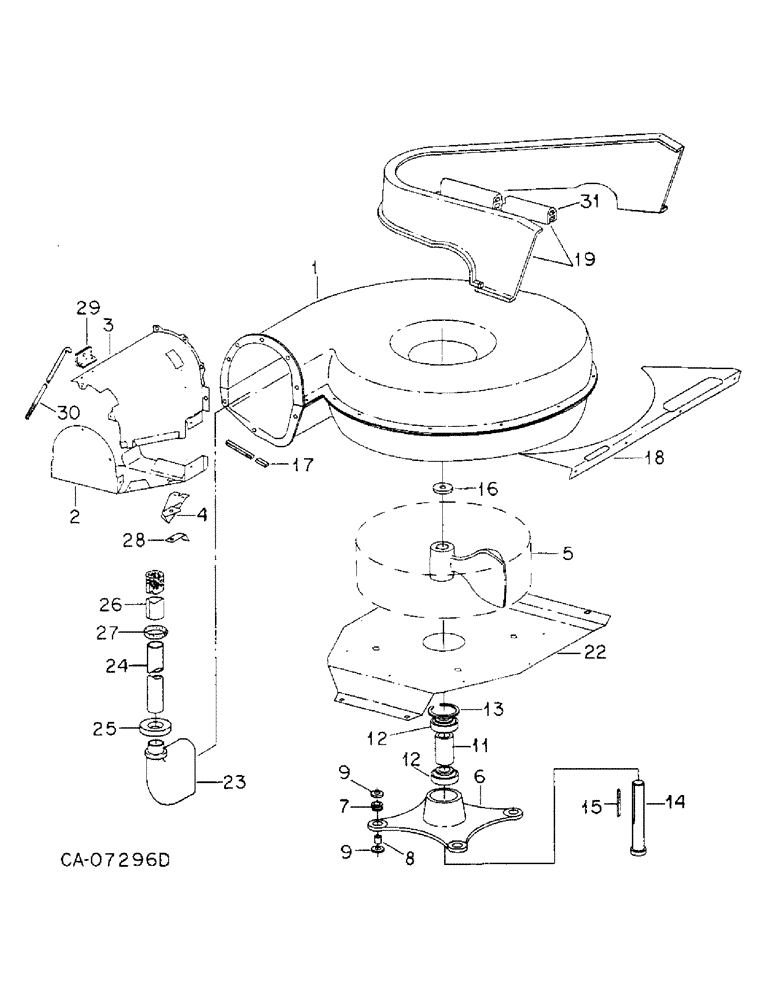

Запчасти Case IH 800 (07-19) - SEED HANDLING, FAN AND CONNECTIONS, UNITS A THRU E, H, J, R, S, U, V, W, X, Y AND Z, ONE PER MODULE (09) - CHASSIS/ATTACHMENTS

1

136957C2

FAN

SHROUD ASSY, fan

1шт.

19505R1

BOLT,1/4" - 20 x 1", Class 2

1/4 x 1 CAD step type 1

8шт.

136969C1

FASTENER

palnut

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 wing

8шт.

2

141208C1

DEFLECTOR

air top

1шт.

3

141207C2

DEFLECTOR

air bottom

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

no. 10 x 1/2 znp h/hd mach

5шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

no. 10 flange lock

5шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

6шт.

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW, 5/16 x 1 h/whd tap

1шт.

120376

NUT,5/16"-18, G5

7шт.

28194R1

BOLT,1/4" - 20 x 3/4", Grade 1

1/4 x 3/4 step type 1

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

4

57393C1

INDICATOR

DIRECTOR, air flow

1шт.

443874

BRACKET

no. 10 x 1/2 znp h/hd mach

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

no. 10 flange lock

2шт.

5

57570C2

WHEEL

FAN, blower

1шт.

56767C1

GREASE

LUBRICANT, 1/2 oz.

1шт.

6

136952C2

HOUSING

1шт.

7

54770H

GROMMET

4шт.

8

549517R1

BUSHING

isomount

4шт.

9

55281C1

WASHER

7шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 crg type 5

4шт.

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

.531 x 1.000 x .054 sq/h

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 CAD p/t lock type 5

4шт.

10

Not used this application

1шт.

11

1250846C1

SPACER

bearing

2шт.

12

566632R92

BALL BEARING,44.04mm ID x 62mm OD x 18mm W

BEARING, ball

2шт.

13

289357R1

RING

retaining

1шт.

14

1250844C1

SHAFT

ASSY, rotor

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

15

479370R1

KEY,1/4" Sq x 2", Par

1/4 x 2 sq parallel

1шт.

16

132794H1

WASHER

1шт.

17

144842C2

SEAL

STRIP, fan shroud seal

1шт.

18

137511C1

SUPPORT

fan shroud

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/1 type 5 flange lock

4шт.

19

145047C94

SEAL

ASSY, air duct

1шт.

1267946C1

SEAL

air duct 25 ft roll

1шт.

20

Not used this application

1шт.

21

Not used this application

1шт.

22

140899C1

SHEET

SUPPORT, fan

1шт.

23

141029C1

SCOOP

air

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

no. 10 x 1/2 znp h/hd mach

2шт.

120391

WASHER,#10

.219 x .500 x .036

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

no. 10 type 5 flange lock

2шт.

24

141030C1

PIPE

air by-pass

1шт.

25

141075C1

SEAL

foam

1шт.

26

149158C1

PIPE

EXTENSION, pipe

1шт.

27

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

type F hose

1шт.

28

57394C1

INDICATOR

BAFFLE

1шт.

29

1264267C1

SUPPORT

stabilizer rod

1шт.

30

1264268C1

ROD

stabilizer

1шт.

159913

SCREW,Cross Pan Hd, #10 - 24 x 7/16"

no. 10 x 7/16 znp P/HDCR mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120376

NUT,5/16"-18, G5

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

1шт.

446363

WASHER,5/16"

.375 x .875 x .064

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

31

SEAL, air duct top, use 55.47 in./1409mm from 25 ft roll marked, 1267946C1

1шт.
