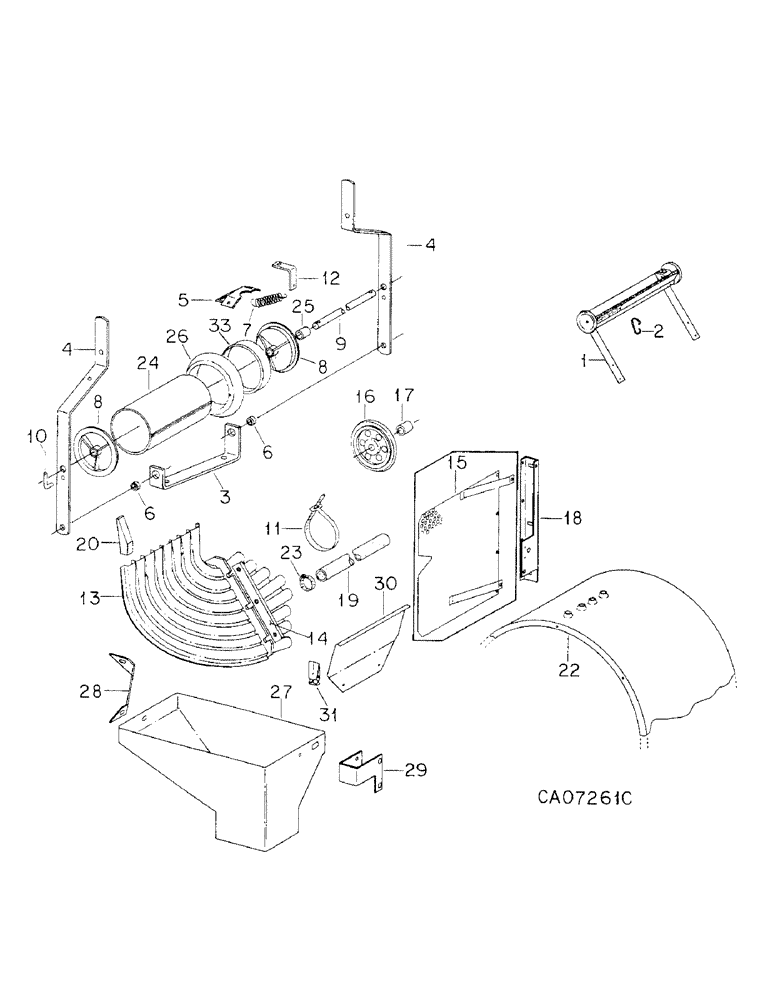

Запчасти Case IH 800 (07-15) - SEED HANDLING,CUTOFF BRUSH,MANIFOLD,SEED TUBES & RELATED PARTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
145156C91
BRUSH ASSY.
BRUSH ASSY, cutoff, composed of (2) spring, cutoff brush (NSS)
1шт.
436695
SCREW,Slotted Pan Hd, #8-32 x 1/2"
no. 8 x 1/2 znp p/hds mach
2шт.
545558R1
LOCK NUT
lock, strip, clamping (NSS)
2шт.
145116C1
BRUSH
cutoff, (2) roller, gauging (NSS)
1шт.
120394
WASHER,3/8", SAE
WASHER, .406 x .812 x .051
2шт.
437157R1
SNAP RING,#37, Ext
Ring, Snap, , (2) bracket, gauging roller (NSS) #37, Ext
2шт.
145118C1
STRIP
tie
1шт.
436697
SCREW,Slotted Pan Hd, #8-32 x 3/4"
no. 8 x 3/4 znp p/hds mach
2шт.
545558R1
LOCK NUT
lock
2шт.
436695
SCREW,Slotted Pan Hd, #8-32 x 1/2"
no. 8 x 1/2 znp p/hds mach
4шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
4шт.
120622
NUT,#8-32
4шт.
2
149310C1
CLIP
lock-out
1шт.
3
141167C1
SUPPORT
cutoff wheel
1шт.
174985C1
BOLT,Hex Serr, 1/2" - 13 x 1"
SCREW, 1/2-13 x 1.0 hex flange
1шт.
204060C1
BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"
SCREW, 1/2 x 1-1/4 hex-hd flange
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2-13 C-Z flange lock
2шт.
21375R1
WASHER
.531 x 1.250 x .164
2шт.
4
141210C1
SUPPORT
ARM, cutoff wheel support
2шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 type 1
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
2шт.
5
141209C1
CLIP
spring anchor
1шт.
6
548363R1
BUSHING
pivot
2шт.
17452R1
BOLT,Hex, 1/2"-13 x 1 1/4", G2
1/2 x 1-1/4 type 1
2шт.
607895R1
WASHER
.531 x 1.000 x .105
2шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 flange lock
2шт.
7
650949C1
VALVE SPRING
SPRING
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1 type 5
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
8
539670R1
RIM
cutoff wheel
2шт.
9
548810R1
AXLE
1шт.
22258R1
WASHER
.656 x 1.000 x .027
2шт.
10
548365R1
PIN
axle retainer
1шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
11
306132C1
CABLE TIE,14.5" L
STRAP, 14 in. tube hold down
1шт.
12
141212C1
SUPPORT
spring bracket
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 crg type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 CAD p/t lock type 5
1шт.
13
141113C3
MANIFOLD
discharge
1шт.
151670C1
SHIM
SHIM .036
1шт.
935915R1
SHIM,33.02mm OD x 0.38mm Thk
.015
1шт.
113090C1
SEALANT
SEALANT, RTV silicone
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051
6шт.
14
147284C1
STRIP
manifold mtg
2шт.
15
144833C3
SCREEN
ASSY, drum, serial no. 14500 and below
1шт.
598794R1
CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5
BOLT, 1/4 x 1/2 crg type 5
6шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
6шт.
16
548821R2
BEARING
WHEEL W/BEARING, drum support
1шт.
17
145115C1
SPACER
1шт.
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
5/8 x 3 type 5
1шт.
231-14410
NUT,5/8"-11, GB
NUT, LOCK, 5/8"-11, GB
1шт.
18
144838C2
BRACKET
screen mtg
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 crg type 1
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
3шт.
614452R1
WASHER
.406 x 1.250 x .090
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
19
546541R2
TUBE
100 ft. coil (30480mm), hard, for tube lengths 59 in., (1498.6mm) and above
1шт.
REF: #19 - 546541R2 TUBE,100 FOOT COIL WILL NO LONGER BE PROVIDED. NEW TUBE 130979A2 ( 195 INCHES LONG ) WILL FIT ALL APPLICATIONS.
1шт.
19
58238C2
TUBE
58 in. coil (1473.2mm), soft, for tube lengths 58 in., (1473.2mm) and below
1шт.
20
144839C1
STRIP
manifold plug, units A, B, E, J, R, S, U, W, Y and Z
1шт.
21
Not used this application
1шт.
22
DRUM, seed, refer to seed drum unit
1шт.
23
122316R91
HOSE CLAMP,#12, 0.69/1.25 Type F Worm
CLAMP, no. 12 seed tube, 2 per row
1шт.
24
546338R1
SLEEVE
cutoff wheel, unit A, replaces 149566C1
1шт.
24
546337R1
SLEEVE
cutoff wheel, units B, E, J, S, U, W, Y and Z, replaces 141720C1
1шт.
24
548809R1
SLEEVE
cutoff wheel, units C, D, H, R, V and X, replaces 141701C1
1шт.
25
552064R1
SPACER,7/8" Tube x 1 1/2"
cutoff wheel, units A, B, E, J, S, U, W, Y and Z
1шт.
26
141019C3
TYRE/TIRE
TIRE, cutoff wheel
1шт.
27
141265C1
CHUTE ASSY.
CHUTE, seed funnel, units A, B, C, D and S
1шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
1/2 x 3-1/4 type 5
1шт.
20731R1
SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole
.531 x 1.000 x .054 sq/h
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
28
141268C1
SUPPORT
seed funnel, units A, B, C, D and S
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 type 1
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
2шт.
120388
.438 x 1.000 x .064
1шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
1/2 x 3-1/4 type 5, units C, D and S
1шт.
120384
WASHER,1/2"
LOCK, , Units C, D and S 1/2"
1шт.
20731R1
SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole
.531 x 1.000 x .054 sq/h, units C, D and S
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , Units C, D and S 1/2"-13, G5
1шт.
29
145183C2
SUPPORT
funnel, units A and B
1шт.
541313R1
BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"
SCREW, 3/8 x 3/4 hex-hd flange
2шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
4шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4 type 5
2шт.
20731R1
SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole
.531 x 1.000 x .054 sq/h
1шт.
NLS
NO LONGER SERVICED
.438 x 1.000 x .064
4шт.
30
1279051C2
EXTENSION
manifold, serial no. 14501 and above
1шт.
28612R1
SCREW
#6-32 x 1-1/2 znd cr-recess mach
2шт.
134530
NUT,Hex, #6 - 32
Machine screw #6-32
2шт.
NLS
NO LONGER SERVICED
.156 x .375 x .036
2шт.
131044
LOCK WASHER
Lock, #6
2шт.
31
1279050C1
SPACER
manifold extension, serial no. 14501 and above
2шт.
32
Not used this application
1шт.
33
1261565C1
SPACER
cut-off wheel, unit R
1шт.
72902C1
TUBE
PACKAGE, beet seed tube, 2 rows
1шт.
