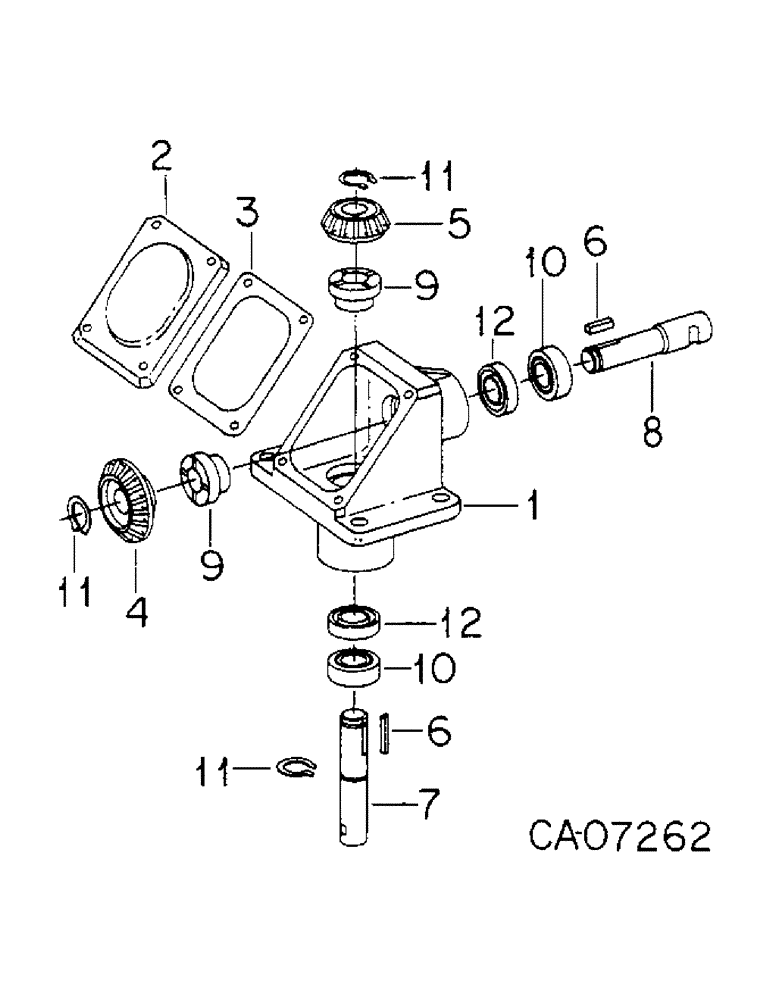

Запчасти Case IH 800 (07-14) - SEED HANDLING, GEAR BOX, 90 DEGREE, UNITS A THRU E, H, J, R, S, U, U, V, W, X, Y AND Z (09) - CHASSIS/ATTACHMENTS

1250704C91

HOUSING

BOX ASSY, gear

1шт.

1

493541R1

HOUSING

gear box

1шт.

2

493542R1

COVER

gear box

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-14 x 1/2 h/hd tap

4шт.

3

493543R1

GASKET

gear box

1шт.

4

485304R1

GEAR WHEEL

GEAR, bevel, 30T

1шт.

5

485305R1

PINION

GEAR, bevel, 20T

1шт.

6

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 x 11/16 sq parallel

2шт.

7

1254156C1

STEM

SHAFT, input

1шт.

8

1254157C1

SHAFT

output

1шт.

9

1254158C1

BUSHING

bearing

2шт.

10

475627R91

BALL BEARING,19.05mm ID x 41.27mm OD x 12.7mm W

BEARING, ball

2шт.

11

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

3шт.

12

485306R1

OIL SEAL

oil

2шт.
