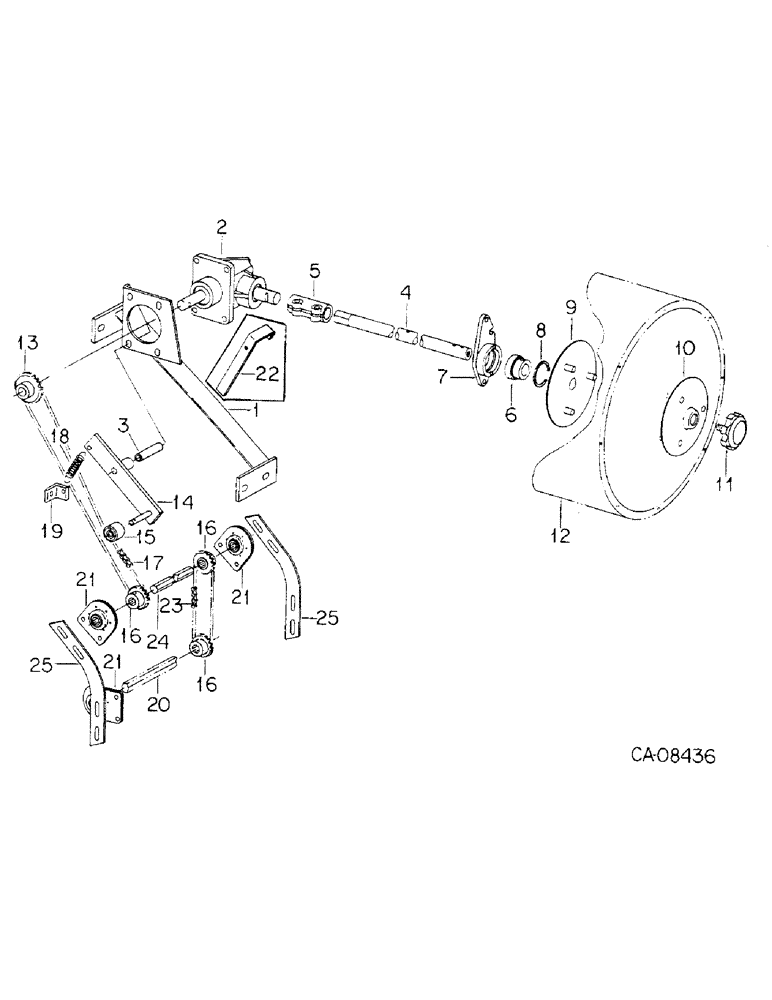

Запчасти Case IH 800 (07-13) - SEED HANDLING, SEED DRUM DRIVE, UNIT R, ONE PER MODULE (09) - CHASSIS/ATTACHMENTS

1

140938C5

SUPPORT

ASSY, gear box mounting

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

mounting

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8 x 6 type 5, serial no. 19901 and above

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

1250704C91

HOUSING

BOX ASSY, gear, 90 degree, for components see list of parts under details of gear box, 90 deg

1шт.

3

1250708C2

TUBE,0.407" ID, 0.625" OD

pivot spacer

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015

1шт.

151670C1

SHIM

SHIM, .036

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

3шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

2шт.

23347R1

SET SCREW

3/8 x 2-1/4 znp sq/hd c/pt set

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

25522R1

NUT,3/8"-16, G8

3/8 PHC type 8

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

4

137132C3

SHAFT

drum

1шт.

5

1250703C2

CLAMP

drum shaft

1шт.

6

149306C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, ball

1шт.

7

147365C1

BEARING HOUSING,36 mm ID x 66 mm OD x 24.5 mm

bearing

1шт.

28309R1

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW, 1/4 x 1/4 co/pt znd hdl/s set

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

3шт.

8

456736R1

SNAP RING,2.062", Int, #206

RING, 2.280 int ret

1шт.

9

137129C1

HOUSING

drum drive

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1.750 hd type 1

1шт.

10

141509C1

CAP

drum end

1шт.

11

141681C2

HANDLE

KNOB, drum

1шт.

12

DRUM, seed, refer to seed drum unit

1шт.

13

1254360C1

SPROCKET ASSY.

SPROCKET ASSY, 16T

1шт.

22232R1

HEADED PIN,1/4" x 1 7/8"

PIN, 1/4 x 1.875 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

14

137049C3

ARM

ASSY, tightener

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

21041R1

WASHER

.531 x 2.000 x .054

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

15

57796C1

ROLLER

chain tightener

1шт.

16

1254359C1

SPROCKET ASSY.

SPROCKET ASSY, 12T

3шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 znp sq/hd c/pt set

3шт.

17

CHAIN, drum drive long, use 67 links from a 10 ft roll marked 475879R91, one connecting link, 1306D and two offset links, 1308D

1шт.

1306D

CHAIN LINK

LINK, #41 single pitch connecting

1шт.

1308D

CHAIN LINK

LINK, #41 single pitch offset

2шт.

18

140962C1

SPRING

idler

1шт.

19

140896C1

ANGLE

spring anchor

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 znd hex whiz lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

BAR, output LH, refer to seed drive

1шт.

21

141242C91

BEARING,16mm ID

ASSY, ball hanger

3шт.

22

1254268C2

SUPPORT

BRACKET, seed tube, serial no. 19900 and below

1шт.

23347R1

SET SCREW

3/8 x 2-1/4 znp sq/hd c/pt set

2шт.

23

CHAIN DRUM DRIVE SHORT, use 41 links from a 10 ft roll marked, 475879R91 and one connecting link, 1306D

1шт.

1306D

CHAIN LINK

LINK, #41 single pitch connecting

1шт.

24

1254313C1

BAR

drum drive

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

25

1254314C1

SUPPORT

PLATE, bearing support

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

8шт.
