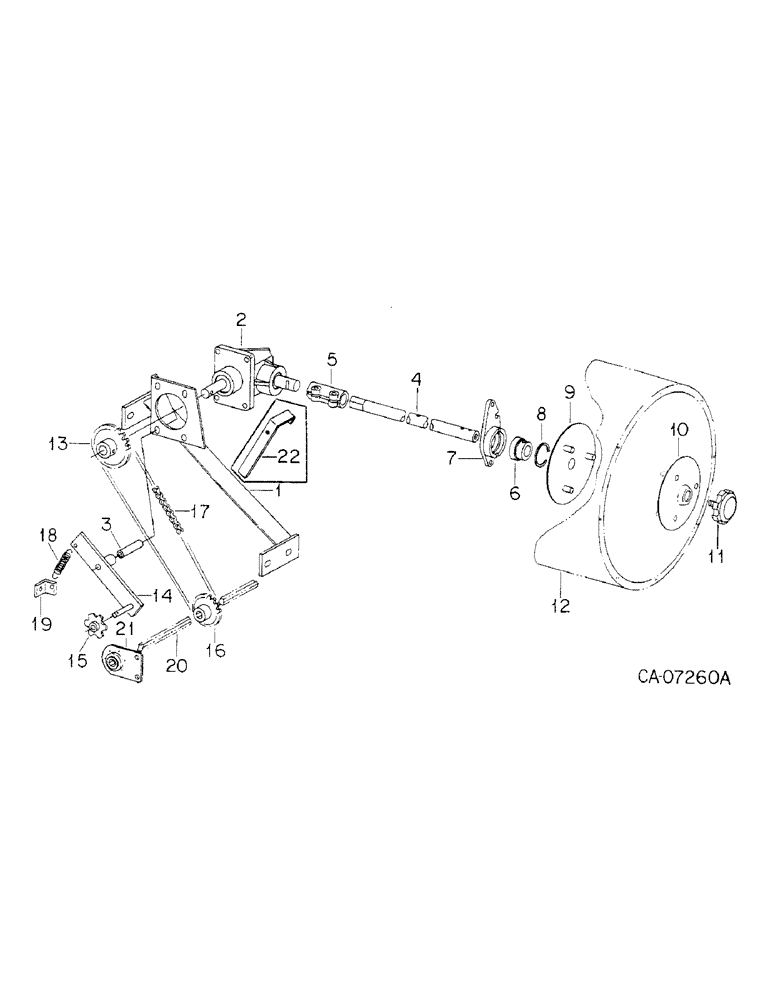

Запчасти Case IH 800 (07-12) - SEED HANDLING, SEED DRUM DRIVE, UNITS A THRU E, H, J, S, U, V, W, X, Y AND Z, ONE PER MODULE (09) - CHASSIS/ATTACHMENTS

1

140938C5

SUPPORT

ASSY, gear box mtg

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

mtg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8 x 6 type 5, serial no. 19901 and above

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

1250704C91

HOUSING

BOX ASSY, gear, 90 degree, for component see list of parts under details of gear box, 90 deg

1шт.

3

1250708C2

TUBE,0.407" ID, 0.625" OD

pivot spacer

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 type 5 flange lock

6шт.

151670C1

SHIM

SHIM .036

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

2шт.

23347R1

SET SCREW

3/8 x 2-1/4 znp sq/hd c/pt set

1шт.

25522R1

NUT,3/8"-16, G8

3/8 PHC type 8

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

4

137132C3

SHAFT

drum

1шт.

5

1250703C2

CLAMP

drum shaft

1шт.

6

149306C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, ball

1шт.

7

147365C1

BEARING HOUSING,36 mm ID x 66 mm OD x 24.5 mm

bearing

1шт.

28309R1

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW, 1/4 x 1/4 co/pt znp hdl/s set

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 type 5 flange lock

3шт.

8

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

9

137129C1

HOUSING

drum drive

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

4шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1.750 hd type 1

1шт.

10

141509C1

CAP

drum end

1шт.

11

141681C2

HANDLE

KNOB, drum

1шт.

12

DRUM, seed, refer to seed drum unit

1шт.

13

1250746C1

SPROCKET

ASSY, 24T

1шт.

22232R1

HEADED PIN,1/4" x 1 7/8"

PIN, 1/4 x 1.875 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

14

137049C3

ARM

ASSY, tightener

1шт.

25742R1

WASHER

.531 x .750 x .105

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

15

472344R3

SPROCKET

idler 6T

1шт.

16

1250747C1

SPROCKET ASSY.

SPROCKET ASSY, 18T

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 znp sq/hd c/pt set

1шт.

17

CHAIN, drum drive, use 49 links from 1 in. ext pitch agr. roller chain from 10 ft. roll marked 569088R91 & 1 conn link 1277927C91 & 2 offset links 457114R91

1шт.

18

140962C1

SPRING

idler

1шт.

19

140896C1

ANGLE

spring anchor

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREEN, 3/8-16 x 1 znd hex. whiz lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20

SHAFT, drive, refer to main drive unit, group 6

1шт.

21

141242C91

BEARING,16mm ID

ball hanger, units A and D only

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 type 5 flange lock

2шт.

22

1254268C2

SUPPORT

BRACKET, seed tube, serial no. 19900 and below, units A thru E, H, J, S, U, V, W, X, Y and Z

1шт.

23347R1

SET SCREW

3/8 x 2-1/4 znp sq/hd c/pt set

1шт.
