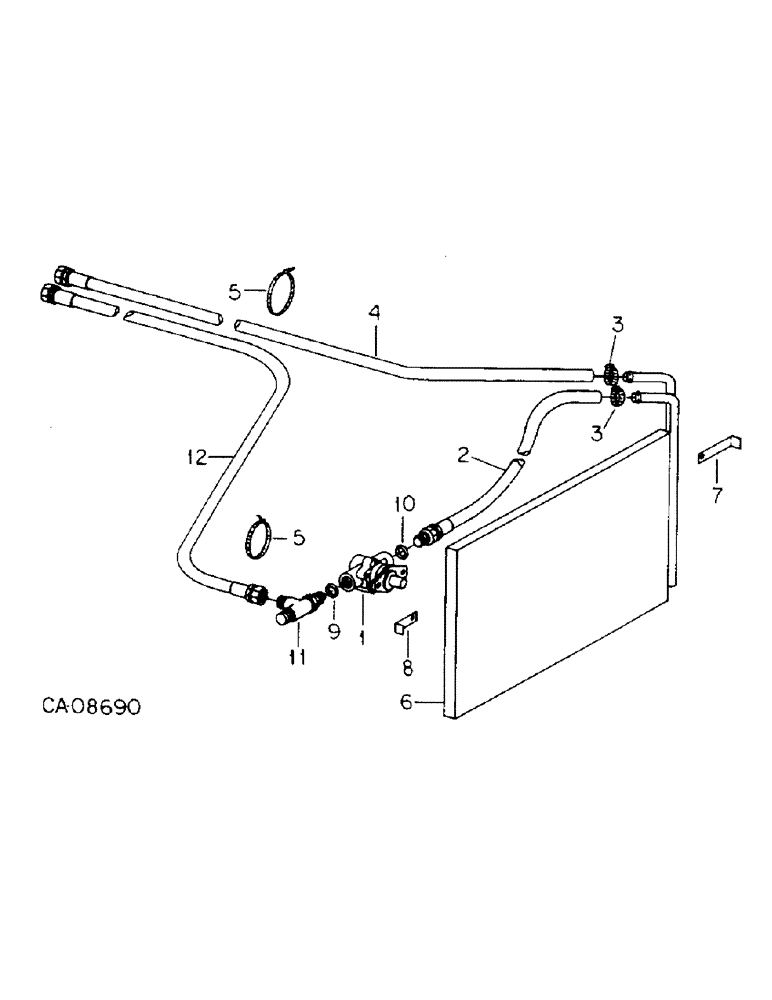

Запчасти Case IH 800 (07-11) - SEED HANDLING, HYDRAULIC BLOWER DRIVE, UNITS W, X AND Y, ONE PER MODULE (09) - CHASSIS/ATTACHMENTS

1

1272056C91

MOTOR

ASSY, hydraulic, only serviceable item is

1шт.

1272340C1

KIT

repair

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

1

1272056C92R

REMAN-HYD MOTOR

800 - CASE IH PLANTER, REMAN for Part No. 1272056C91 & 137183C92, N.A. Only

2шт.

1

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

2

149191C1

HOSE,12.70 mm ID x 711.20, SAE 30R2 TYPE 3 OR 100R6

1/2 ID x 28 in. top return, serial no. 19900 and below

1шт.

2

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Top Return, Serial No. 19901 and Above 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

1шт.

3

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

4

HOSE ASSY, cooler to junction block return, refer to hydraulic pump and related parts for hose needed

1шт.

5

306132C1

CABLE TIE,14.5" L

STRAP, hose

4шт.

6

1265677C1

OIL COOLER

COOLER, oil

1шт.

7

1250912C1

SUPPORT

RETAINER, long

1шт.

8

1250911C1

SUPPORT

RETAINER, short

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

11

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

1/2 C-Z hyd fld tube adj

1шт.

12

HOSE ASSY, junction block motor pressure, refer to hydraulic pump and related parts for hose needed

1шт.
