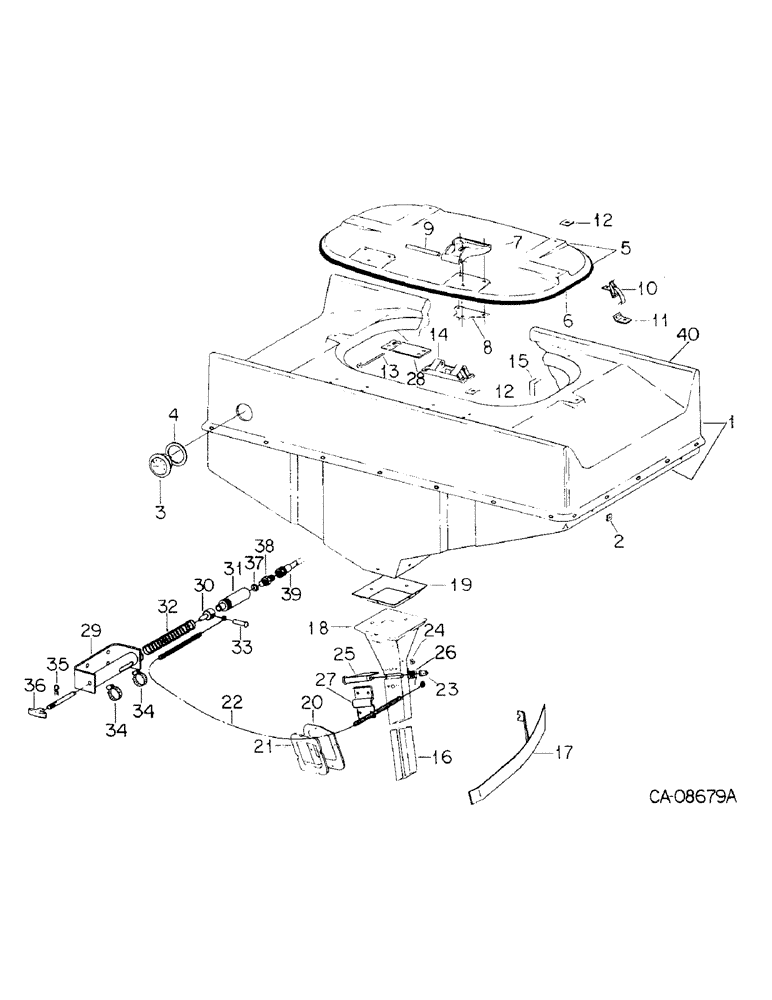

Запчасти Case IH 800 (07-08) - SEED HANDLING, HOPPER AND SEED CHUTE, UNITS W, X AND Y, ONE PER MODULE (09) - CHASSIS/ATTACHMENTS

1

140854C3

HOPPER

ASSY, seed

1шт.

2

547692R1

PAD

seed hopper

4шт.

21375R1

WASHER

.531 x 1.250 x .164

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

3

149128C91

GAUGE

W/CLAMP, air pressure

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

546988R1

GASKET

air gauge

1шт.

5

141221C92

COVER

W/PRODUCT GRAPHIC, 113483C2, and seal, 140860C1

1шт.

113483C2

DECAL,Warning Do Not Open Lid

PRODUCT GRAPHIC, warning, lid

1шт.

6

140860C1

SEAL

cover, part of cover, 141221C92

1шт.

7

140859C1

HINGE

hopper lid

2шт.

8

144947C1

BAR

plate reinforcement

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

6шт.

9

141136C1

PIN

lid pivot

2шт.

178373R1

WASHER

.531 x 1.000 x .056

2шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

4шт.

10

140861C1

LATCH

lid

4шт.

11

548622R1

CLIP

locking

4шт.

12

1254517C1

STRIP

PAD, lid latch

6шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

8шт.

495-81001

WASHER,5/16"

.375 x 1.125 x .051

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

13

149297C1

BAR

safety

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

14

140537C1

PIVOT

lid

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

8шт.

15

141215C1

ANGLE

by-pass tube

1шт.

16

141516C1

EXTENSION

seed chute

1шт.

17

145150C2

BAR

ASSY, seed leveling

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

619855R1

WASHER

.344 x .750 x .054

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

18

1250877C2

CHUTE (DOWNWARD)

CHUTE ASSY, seed

1шт.

19

140873C2

SEAL

top

1шт.

276-14724

SELF-TAP SCREW,Hex Hd, 1/4" x 1 1/2"

SCREW, 1/4 x 1-1/4 h/hd tap (replaces 451821)

4шт.

97865H

WASHER

.281 x .875 x .054

4шт.

20

140872C1

SUPPORT

clamping

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21870R1

WASHER

.266 x .750 x .054

1шт.

21

140871C2

SEAL

1шт.

22

1261118C3

CABLE

1шт.

23

144840C1

ELECTRICAL WIRE

WIRE, stop

1шт.

24

144841C1

CLAMP

MOUNTING, clamp

2шт.

159612

SCREW,Cross Pan Hd, #8 - 32 x 5/8"

8-32 x 5/8 znp P/HDCR mach

2шт.

178369

LOCK WASHER,Ext-Int Tooth, #8

WASHER, no. 8 ext-int tooth lock

2шт.

120622

NUT,#8-32

4шт.

25

141670C3

INSPECTION DOOR

GATE, cut-off

1шт.

26

141671C1

SPRING

shut-off gate

1шт.

141718C1

RETAINER

spring

1шт.

27

144948C2

CAP

shut-off

1шт.

120391

WASHER,#10

.219 x .500 x .036

4шт.

178383

WASHER,Tooth, 0.20" ID x 0.68" OD, Steel, ZND

WASHER, no. 10 ext-int tooth lock

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

NLS

NO LONGER SERVICED

no. 10 x 3/4 znp h/hd mach

2шт.

28

140503C1

PLATE

guard

4шт.

29

1261313C2

BRACKET

ASSY

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

30

1261316C2

PLUNGER

ASSY

1шт.

31

1260965C93

CYLINDER

ASSY, .5 x 1.75 single acting hydraulic, only serviceable item is

1шт.

1272530C92

SEAL KIT

seal

1шт.

32

1261322C2

SPRING

seed shut-off

1шт.

33

1277597C1

STUD

#12 x 3/4 rhd barbed

1шт.

34

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, no. 24 type F hose

2шт.

35

544063R1

HAIR PIN COTTER

PIN, 3/32 quick attachable cot.

1шт.

36

1277948C1

KNOB

1шт.

37

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

38

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

1шт.

39

1261449C2

HOSE

ASSY, 3/8 x 60 in., seed shut-off

1шт.

40

140855C2

HOPPER

upper half, part of seed hopper, 140854C3

1шт.

104804C1

RIVET,Pop, 3/16" x .575"

4.8 x 14.6mm break mandrel

28шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

.203 x .500 x .041 rivet

28шт.
