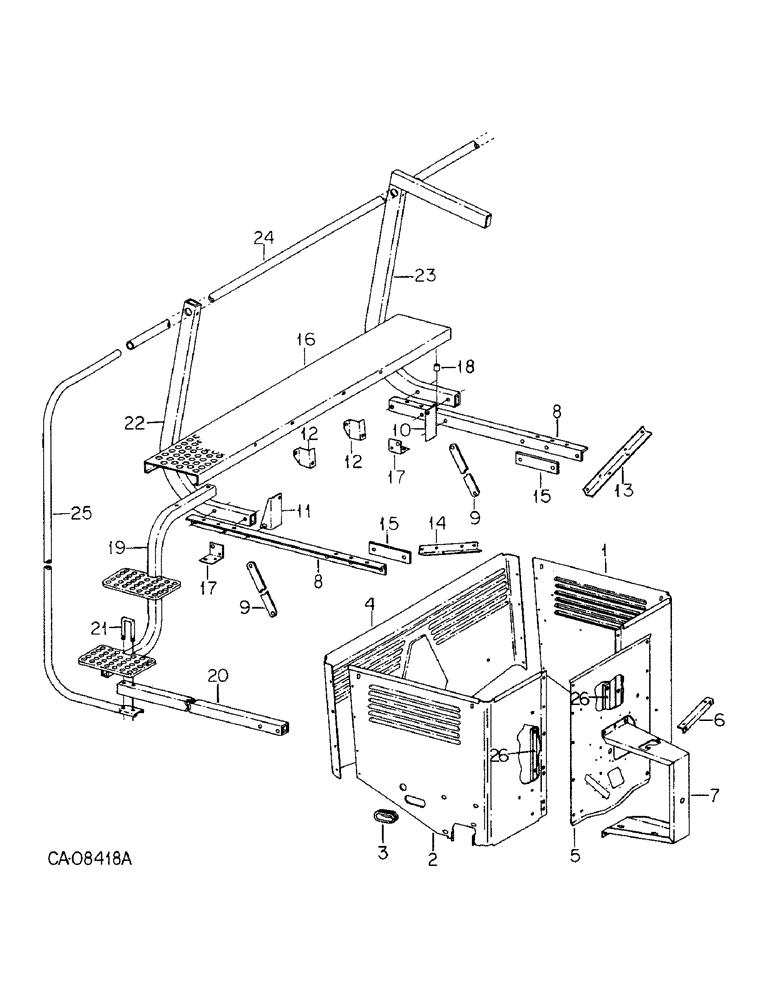

Запчасти Case IH 800 (07-04) - SEED HANDLING, SIDE SHEETS AND STEP, UNIT R, ONE PER MODULE (09) - CHASSIS/ATTACHMENTS

1

1277950C1

SHEET

PANEL, LH side hopper

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 znd type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

2

1277951C1

SHEET

PANEL, RH side hopper

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2-13 x 1.0 hex flange

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 znd type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

3

141588C1

GROMMET

tube

2шт.

4

1268042C91

PANEL

S W/PRODUCT GRAPHICS, rear hopper

1шт.

149366C2

PRODUCT GRAPHIC

warning

1шт.

100169C1

CAUTION DECAL

PRODUCT GRAPHIC, caution, product graphic, SMV emblem (NSS)

1шт.

1261198C1

BOLT,Indented Hex, 5/16" - 18 x 0.53", Gr 5.1

W/WASHER, hex-hd tap

8шт.

5

140911C3

SHEET

SUPPORT, front firewall, sheet

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

4шт.

6

140898C2

ANGLE

fan support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

7

141211C2

SUPPORT

cut-off wheel

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8-16 x 3/4 lock

5шт.

141217C1

NUT

fastener

5шт.

8

1254130C1

FUNNEL

ANGLE, step tie

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

9

1254119C1

BAR

angle

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

10

1254115C2

SUPPORT

rear hopper LH

1шт.

11

1254116C2

SUPPORT

rear hopper RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

4шт.

12

1254129C1

ANGLE

support platform

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

13

1254104C1

ANGLE

step support LH

1шт.

14

1254105C1

ANGLE

step support RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

12шт.

15

1261597C1

BAR

BRACE, platform

2шт.

16

1254131C2

PLATFORM

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 crg type 1

5шт.

18692R1

CARRIAGE BOLT,Sq Nk, 3/8"-16 x 6", Gr 2

BOLT, 3/8 x 6 crg type 1

1шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

.531 x 1.500 x .105 sq/h

6шт.

22186R1

SQ HOLE WASHER,13/32" x 1 1/2" x .060", Sq Hole

.406 x 1.500 x .054 sq/h

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

5шт.

17

1279027C1

ANGLE

platform tie down

2шт.

18

195695R1

SPACER,3/4" X-Strng Pipe x 1 3/4"

3/4 x 1.750 x/strg pipe

4шт.

19

1254132C1

PLATFORM

STEP ASSY

1шт.

20

1267962C1

TUBE,877 mm Length

step support

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

21

1268190C2

BOLT,3/8" - 16 x 40mm W x 110mm L

U-BOLT, step support

1шт.

21740R1

WASHER

.531 x 1.500 x .054

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

22

1268211C2

TUBE,63.5 mm OD, 962, 215 mm Length

SUPPORT, unit lift tube outer

1шт.

M22613

SPACER,1/2" X-Strng Pipe x 1"

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

23

1277840C1

SUPPORT TUBE

SUPPORT ASSY, safety tube inner

1шт.

M22613

SPACER,1/2" X-Strng Pipe x 1"

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

24

1268212C2

TUBE,34.9 mm ID, 44.4 mm OD

unit lift and rod

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

25

1268213C3

ROD

step hand LH, rail

1шт.

25

1268214C3

ROD

step hand RH, rail

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

26

1261243C1

BAR

clamping

2шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

6шт.
