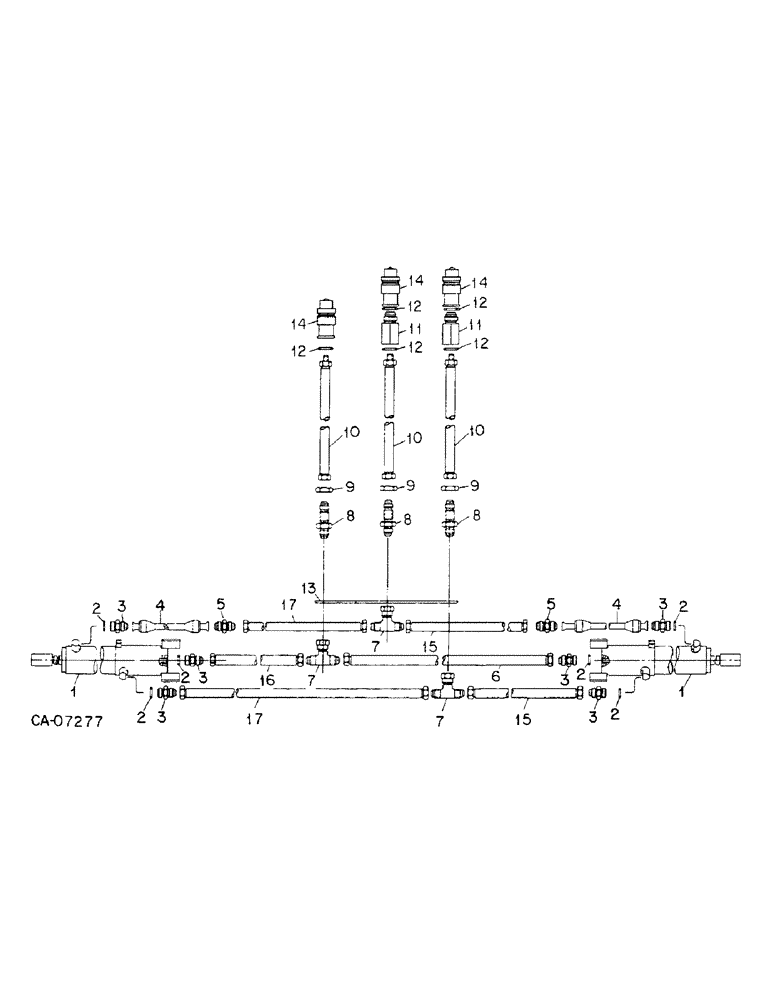

Запчасти Case IH 800 (03-17) - FRAME, HYDRAULIC CYLINDER AND CONNECTIONS FOR FRAMES, UNITS H, J, P AND Q (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
113978C93
CYLINDER
ASSY, 3-1/2 x 12 two stage, for components see list of parts under details of hyd cylinder
2шт.
63498C91
SEAL PACKAGE
KIT, O-ring & seal
1шт.
3
9410203
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR, 1/2 C-Z hyd fld short swivel
6шт.
4
100303C1
HYD TUBE,322.6 mm Length
TUBE, hydraulic
2шт.
5
9402787
UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree
1/2 C-Z hyd flared tube
2шт.
6
100384C1
HOSE
1/2 x 65 in. hydraulic, units J and Q
1шт.
6
100417C1
HOSE
1/2 x 55 in. hydraulic, units H and P
1шт.
7
9410308
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br
5/8 C-Z hyd fld tube swivel
3шт.
8
9403256
FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
UNION, 5/8 C-Z hyd fld tube bulkhead
3шт.
9
9403295
BHD LOCK NUT,Blkhd, 7/8"-14
NUT, 7/8-14 bulkhead union lock
3шт.
10
116098C91
HOSE
1/2 x 61 in. hydraulic, replaces 1254219C1
3шт.
11
493960R91
VALVE
ASSY, drop retarding
2шт.
11
85055C1
VALVE
ASSY, drop retarding, for ISO male coupler, composed of
2шт.
546844R1
WASHER
valve, valve (NSS)
1шт.
103575
PIN,#1 x 1 1/4", Tapered
no. 1 x 1-1/4 pln taper
1шт.
12
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube class 6
5шт.
13
119984C1
BAR
hyd hose
1шт.
14
544787R91
COUPLING, BREAK AWAY
COUPLING, quick attachable male, IH
3шт.
15
119690C1
HOSE
1/2 x 45 in. hydraulic, 2 for units H and P
1шт.
15
100417C1
HOSE
1/2 x 55 in. hydraulic, 2 for units J and Q
1шт.
16
119876C1
HOSE
1/2 x 38 in. hydraulic, 2 for units H and P
1шт.
16
113374C1
HOSE
1/2 x 50 in. hydraulic, 2 for units J and Q
1шт.
17
100383C1
HOSE
1/2 x 59 in. hydraulic, 2 for units H and P
1шт.
17
119743C1
HOSE
1/2 x 69 in. hydraulic, 2 for units J and Q
1шт.
Выбрано товаров: 26
