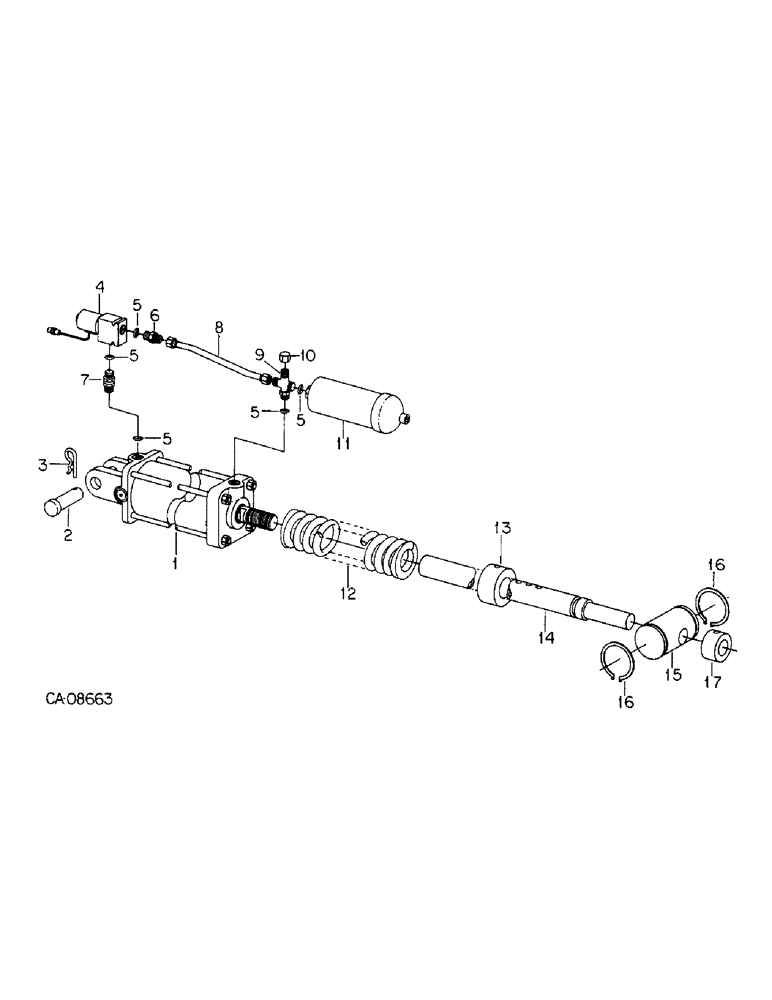

Запчасти Case IH 800 (04-05) - HITCH, HITCH LINK AND CONNECTIONS, UNITS W, X AND Y (04) - ELECTRICAL SYSTEMS

1

1267167C92

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, hitch, for components see list of parts under details of hyd cylinder

1шт.

84919C2

GASKET KIT

KIT, O-ring & seal

1шт.

2

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 znp clevis, replaces 61571C1

1шт.

3

520175R1

CLIP

PIN, quick attachable cot.

1шт.

4

1260819C91

VALVE

ASSY, body and solenoid, only serviceable items are

1шт.

149944C91

VALVE

ASSY, poppet solenoid

1шт.

149942C1

SEAL KIT

KIT, poppet valve seal

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

5шт.

6

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

1шт.

7

1261010C1

FITTING

UNION, hydraulic adapter

1шт.

8

1264103C1

HYD TUBE

TUBE ASSY, hitch hydraulic

1шт.

9

1264278C1

CROSS

hyd 37 deg flared adjustable

1шт.

10

9403372

CAP,37 Degree, 3/4"-16

1/2 C-Z hyd flared tube

1шт.

11

1272647C1

ACCUMULATOR

ASSY, greerolator

1шт.

12

60148C1

SPRING

link

1шт.

13

1264095C1

STOP

spring end

1шт.

21993R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3.500 hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

14

1264092C1

LINK ASSY.

LINK ASSY, hitch

1шт.

15

1268156C1

PIN

hitch link

1шт.

16

233042R1

SNAP RING,#275, Ext

RING, 2.543 ext ret

2шт.

17

1277575C1

COLLAR

link

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
