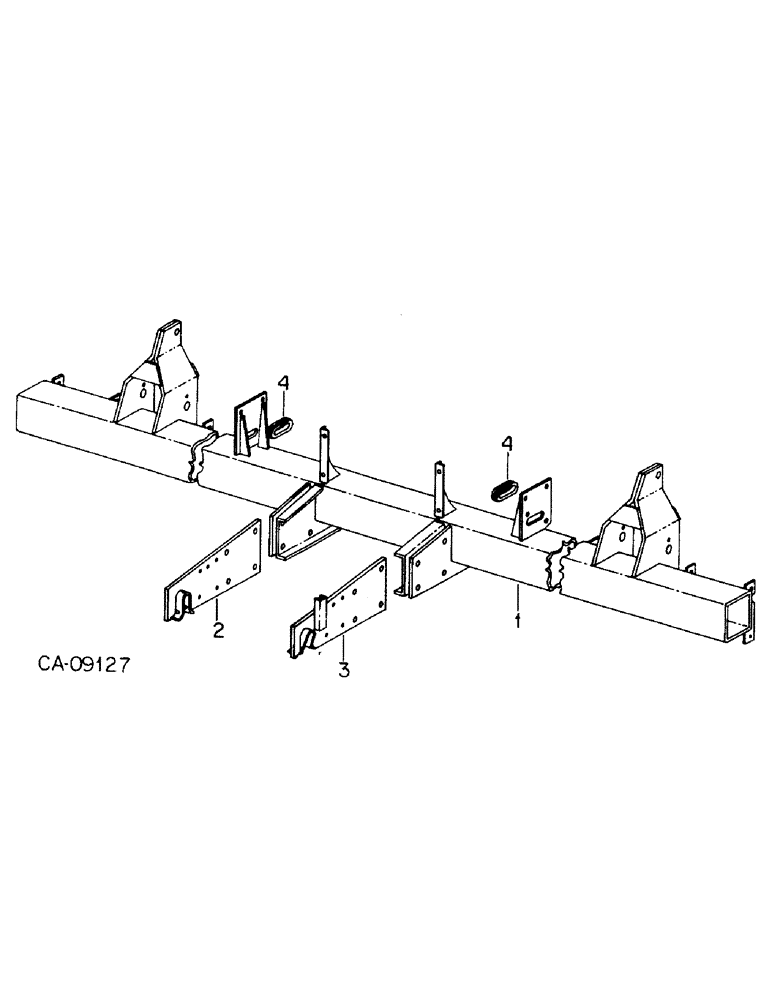

Запчасти Case IH 800 (03-16) - FRAME, FRAME AND CONNECTIONS, UNIT Z (09) - CHASSIS/ATTACHMENTS

1

1279440C91

FRAME

W/PRODUCT GRAPHIC

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

2

1264336C1

PLATE

ASSY, LH hitch

1шт.

3

1264337C1

PLATE

ASSY, RH hitch

1шт.

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

8шт.

4

145149C1

GROMMET

2шт.

306132C1

CABLE TIE,14.5" L

STRAP, 14 inch tie

4шт.
