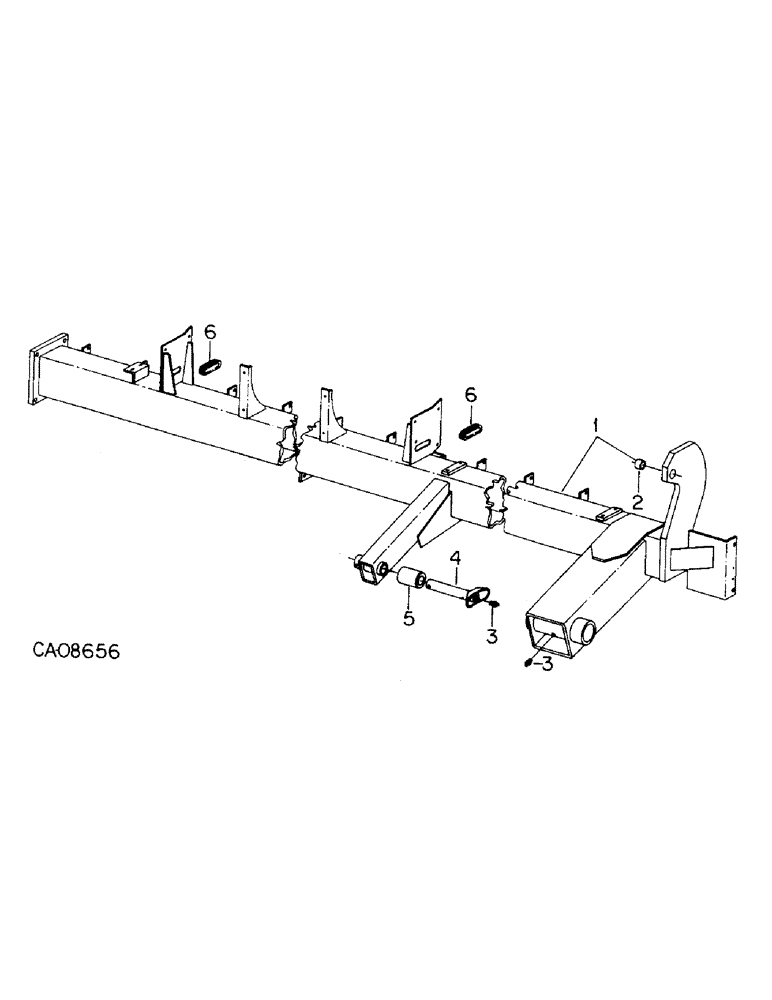

Запчасти Case IH 800 (03-15) - FRAME, WING FRAME AND CONNECTIONS, UNITS W, X AND Y (09) - CHASSIS/ATTACHMENTS

1

1279397C91

FRAME

W/PRODUCT GRAPHIC, LH wing, unit W

1шт.

1

1279399C91

FRAME

W/PRODUCT GRAPHIC, LH wing, unit X

1шт.

1

1279448C91

FRAME ASSY

FRAME W/PRODUCT GRAPHIC, LH wing, unit Y

1шт.

1

1279398C91

FRAME

W/PRODUCT GRAPHIC, RH wing, unit W

1шт.

1

1279400C91

FRAME

W/PRODUCT GRAPHIC, RH wing, unit X

1шт.

1

1279449C91

FRAME ASSY

FRAME W/PRODUCT GRAPHIC, RH wing, unit Y

1шт.

364002R1

SPACER,3/8" Pipe x 1"

3/8 x 1.000 std pipe, unit Y

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

149366C2

PRODUCT GRAPHIC

warning

1шт.

2

112886C1

BUSHING

tension

2шт.

3

16982R91

FITTING

1/4 lub

4шт.

4

1268047C1

LOCK ASSY

latch

2шт.

21899R1

HEADED PIN

PIN, 1/2 x 2.500 type 5 hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

1277817C1

TUBE,38.5 mm ID, 76.2 mm OD

roller

2шт.

6

145149C1

GROMMET

4шт.
