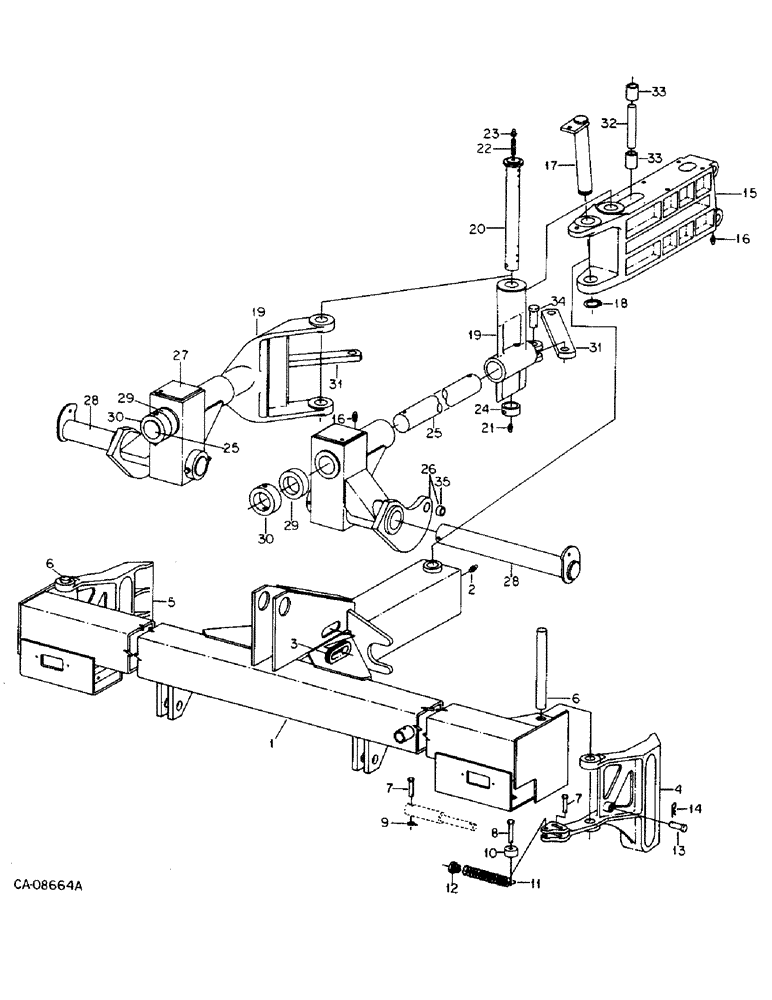

Запчасти Case IH 800 (03-13) - FRAME, MAIN FRAME AND CONNECTIONS, UNITS W, X AND Y (09) - CHASSIS/ATTACHMENTS

1

1268135C6

FRAME

ASSY, main

1шт.

2

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4 45D lub

1шт.

3

145149C1

GROMMET

hose

2шт.

4

1254514C2

LATCH

operational LH

1шт.

5

1254515C2

LATCH

operational RH

1шт.

6

141553C2

PIN

latch pivot

2шт.

23340R1

WASHER

1.562 x 3.000 x .164

4шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

7

21899R1

HEADED PIN

PIN, 1/2 x 2.500 type 5 hd

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

8

21993R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3.500 hd type 1

2шт.

120396

WASHER

.531 x 1.062 x .074

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

9

479696R91

AXLE PIN

PIN, quick attachable snap

2шт.

10

1277651C1

ROLLER

switch

2шт.

11

140579C1

SPRING

center frame latch

2шт.

12

144847C1

PLUG

spring

2шт.

149439C1

SPECIAL BOLT,Spcl, Hex, 1/2" - 13 x 4.25", Gr 5

BOLT, 1/2 x 3.25 special

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

13

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2.250 hd type 5

2шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

8шт.

14

517843R1

COTTER PIN

PIN, 1/4 quick attachable cot.

2шт.

15

1268093C1

BRACKET

center section

1шт.

16

16982R91

FITTING

1/4 lub, 3 for serial no. 16800 and below, 2 for serial no. 16801 and above

1шт.

17

1268344C2

PIN ASSY.

PIN ASSY, main pivot

1шт.

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

1шт.

18

468371R1

RING

1.840 hvy ext ret

1шт.

19

141571C3

BRACKET

pivot

2шт.

20

1277612C1

ROD ASSY.

PIN ASSY, wing pivot

1шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLER, 1/8 x 3-1/2 znp long pipe

1шт.

23

126122

FITTING

1/8 NPTF int thread lub

1шт.

24

1279045C1

COLLAR

pivot pin

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

25

1268118C3

PIN

top wing pivot

2шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5 type 5

4шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

4шт.

26

1268111C91

TUBE,300, 190 mm Length

ASSY, wing connecting LH

1шт.

27

1268112C91

TUBE ASSY.

TUBE ASSY, wing connecting RH

1шт.

28

1268174C2

CAM

PIVOT ASSY, lower pivot

2шт.

29

1277509C1

TUBE,76.55mm ID x 1143mm OD x 40 mm L

roller

2шт.

30

1268117C2

TUBE,76.55 mm ID, 114.3 mm OD

pin locking

2шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5 type 5

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

2шт.

31

1268122C1

BAR

wing connecting

2шт.

32

1254453C2

PIN

roller

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

33

1254452C2

TUBE,32.5 mm ID, 50.8 mm OD, 65 mm Length

guide roller

2шт.

34

145282C1

CLEVIS PIN

PIN, 1-1/4 x 3.3 headed

2шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

35

112886C1

BUSHING

tension

2шт.
