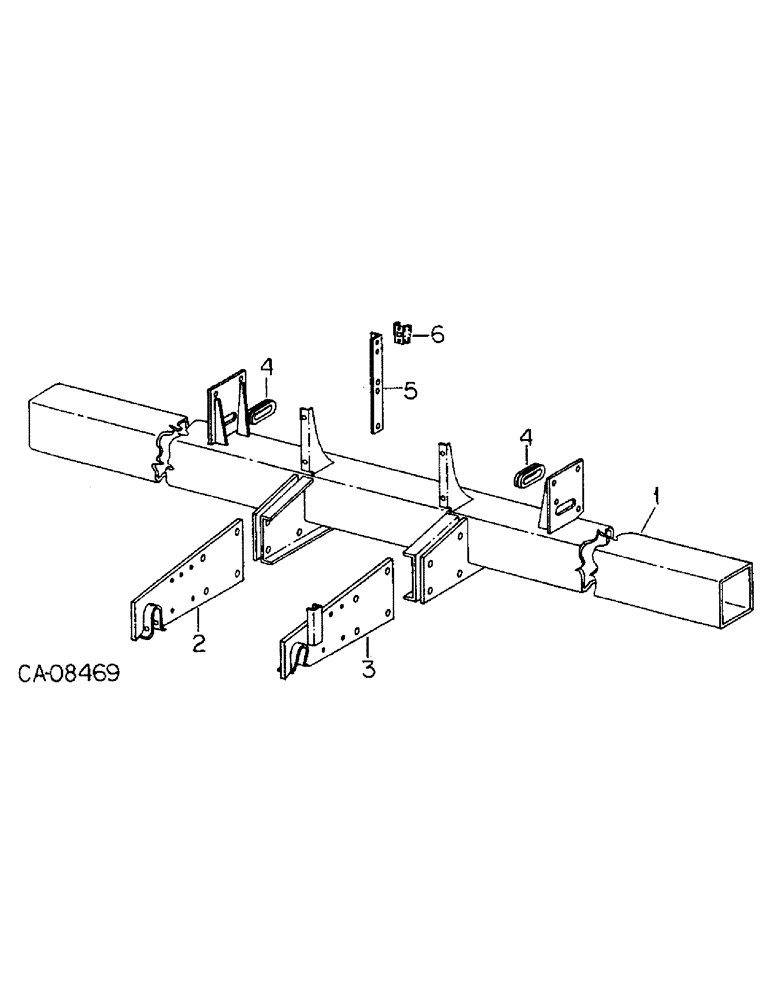

Запчасти Case IH 800 (03-12) - FRAME, FRAME AND CONNECTIONS, UNITS U AND V (09) - CHASSIS/ATTACHMENTS

1

1268144C91

FRAME

W/PRODUCT GRAPHIC, unit U

1шт.

1

1268145C92

FRAME

W/PRODUCT GRAPHIC, unit V, for machines with serial no. 16800 and below, also order

1шт.

134151C1

BAR

output RH

1шт.

1279455C1

SHAFT

BAR, output LH

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

2

1264336C1

PLATE

ASSY, LH hitch

1шт.

3

1264337C1

PLATE

ASSY, RH hitch

1шт.

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

8шт.

4

145149C1

GROMMET

2шт.

5

58316C1

SUPPORT

safety light, used only w/transport attachment

1шт.

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

5/8 x 8-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

6

398976R1

BRACKET

SOCKET, SMV emblem mounting, used only w/transport attachment

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

306132C1

CABLE TIE,14.5" L

STRAP, tie

4шт.
