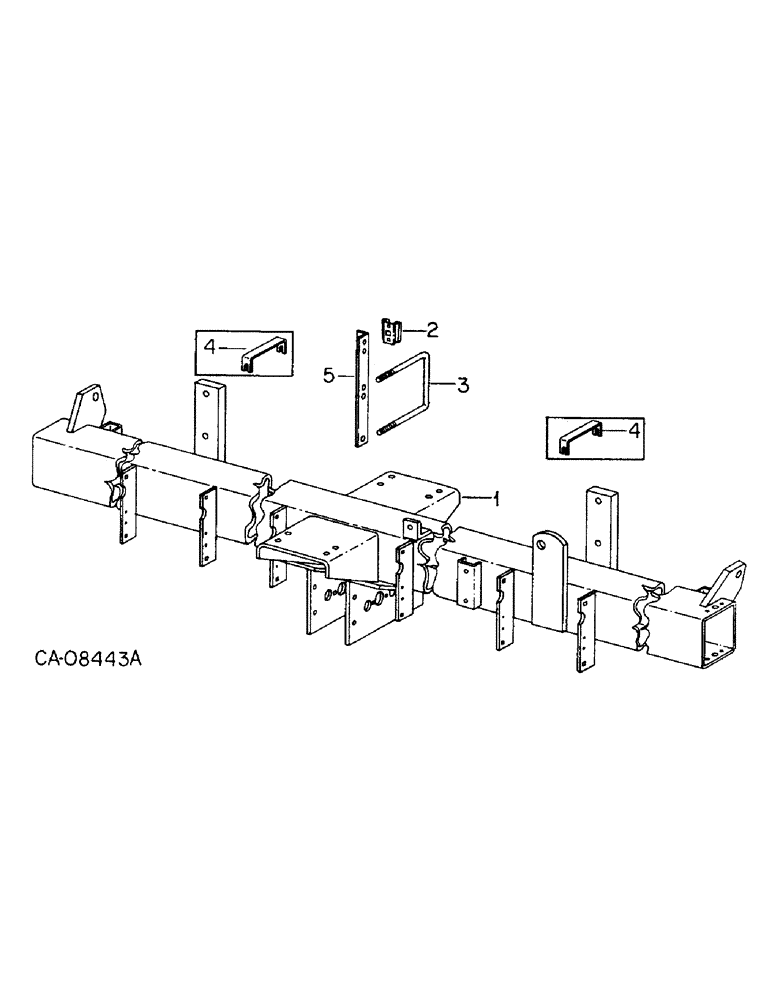

Запчасти Case IH 800 (03-11) - FRAME, FRAME AND CONNECTIONS, UNIT T (09) - CHASSIS/ATTACHMENTS

1

1261282C2

FRAME

ASSY

1шт.

2

398976R1

BRACKET

SOCKET, SMV emblem mounting

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

3

1250813C1

U-BOLT

replaces 493837R2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

4

1264119C1

STRAP

CHANNEL, hose guide, serial no. 4200 and below

8шт.

131016

WASHER

.656 x 1.312 x .074

8шт.

5

58316C1

SUPPORT

safety light

1шт.
