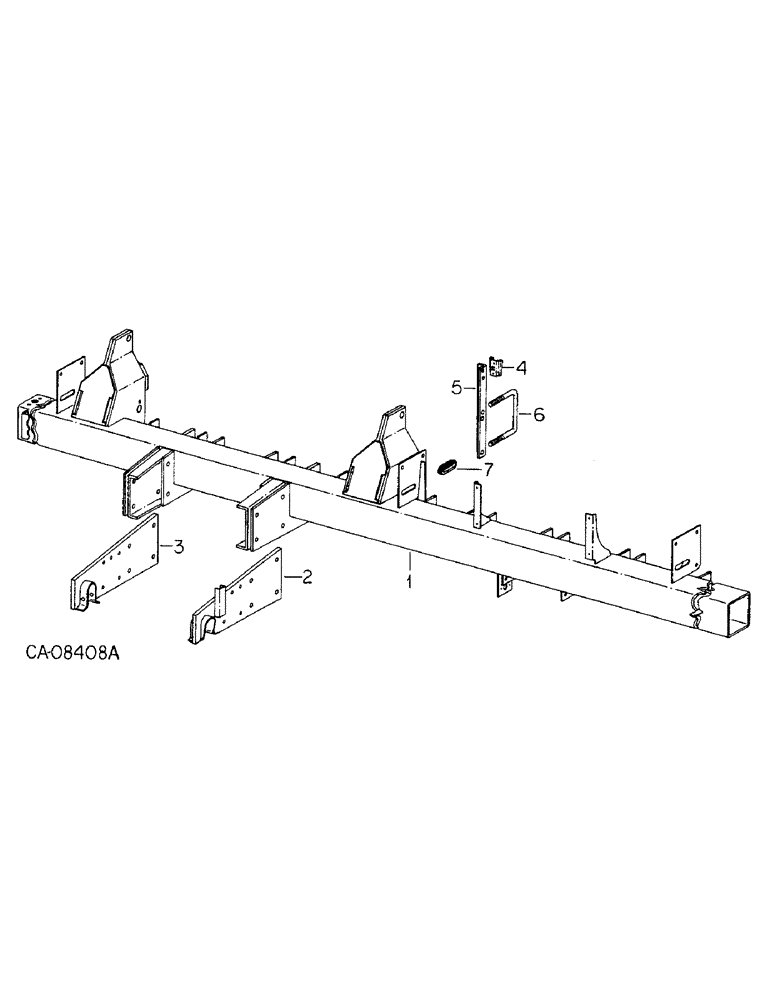

Запчасти Case IH 800 (03-10) - FRAME, FRAME AND CONNECTIONS, UNIT R (09) - CHASSIS/ATTACHMENTS

1

1268155C94

FRAME

W/PRODUCT GRAPHIC

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

2

1264336C1

PLATE

ASSY, left hitch

1шт.

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

4шт.

3

1264337C1

PLATE

ASSY, right hitch

1шт.

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

4шт.

4

398976R1

BRACKET

SOCKET, SMV emblem

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

5

58316C1

SUPPORT

safety light, used only w/transport attachment

1шт.

6

493837R2

U-BOLT

support, built 1982

1шт.

6

19995R1

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

5/8 x 8-1/2 type 5, built 1983 and since, used only w/transport attachment

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

7

145149C1

GROMMET

4шт.
