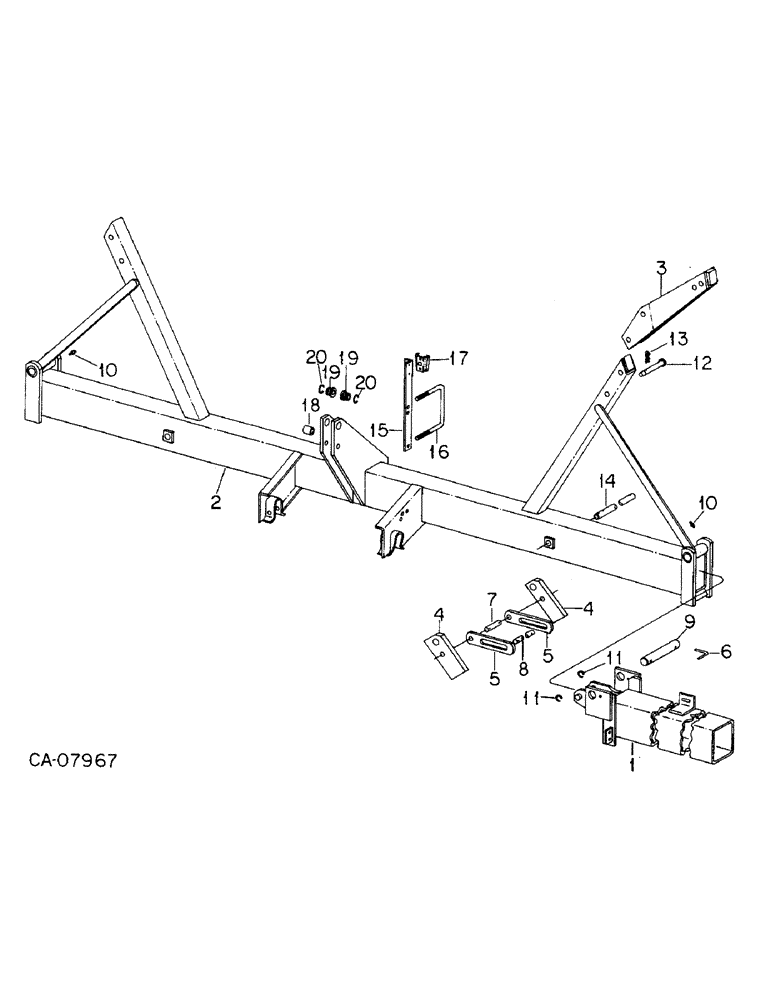

Запчасти Case IH 800 (03-08) - FRAME, FRAME AND CONNECTIONS, UNITS P AND Q (09) - CHASSIS/ATTACHMENTS

1

141510C2

ASSEMBLY

SECTION ASSY, wing, 2 for unit P

1шт.

1

1279711C1

ASSEMBLY

SECTION ASSY, wing LH, unit Q, replaces 141511C2

1шт.

1

1279712C1

ASSEMBLY

SECTION ASSY, wing RH, unit Q, replaces 141511C2

1шт.

2

1268095C91

FRAME

W/PRODUCT GRAPHIC, center section, unit P

1шт.

2

1268097C92

FRAME

W/PRODUCT GRAPHIC, center section, unit Q

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

3

145139C1

STOP

ASSY, wing, 2 for unit P

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

4шт.

3

145145C1

STOP

ASSY, wing, 2 for unit Q

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

4шт.

4

113473C2

SUPPORT

LATCH, hitch

4шт.

26569R1

BOLT

BOLT, 1/4 x 2-3/4 PHC type 8

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

5

113307C1

LINK

cyl hook-up

4шт.

6

491601R2

PIN

pivot lock 'L'

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

7

100324C2

PIN

cyl and latch

2шт.

8

100323C1

PIN

hold up

2шт.

9

100326C1

PIN

hinge

2шт.

10

25391R1

FITTING

1/4 less ball check lub

2шт.

11

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

608700R1

WASHER

1.281 x 2.000 x .054

4шт.

12

149571C2

PIN

pointed 5/8 dia.

2шт.

13

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

2шт.

14

125516C1

PIN

cyl anchor

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

15

58316C1

SUPPORT

safety light

1шт.

16

1250813C1

U-BOLT

replaces 493837R2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

17

398976R1

BRACKET

SOCKET, SMV emblem

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

18

462425R1

SPACER

mast, unit P

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

19

541781R1

BUSHING

mast, 2 for unit P

1шт.

20

152450R1

SNAP RING,#125, Ext

RING, 1.156 ext ret, 2 for unit P

1шт.
