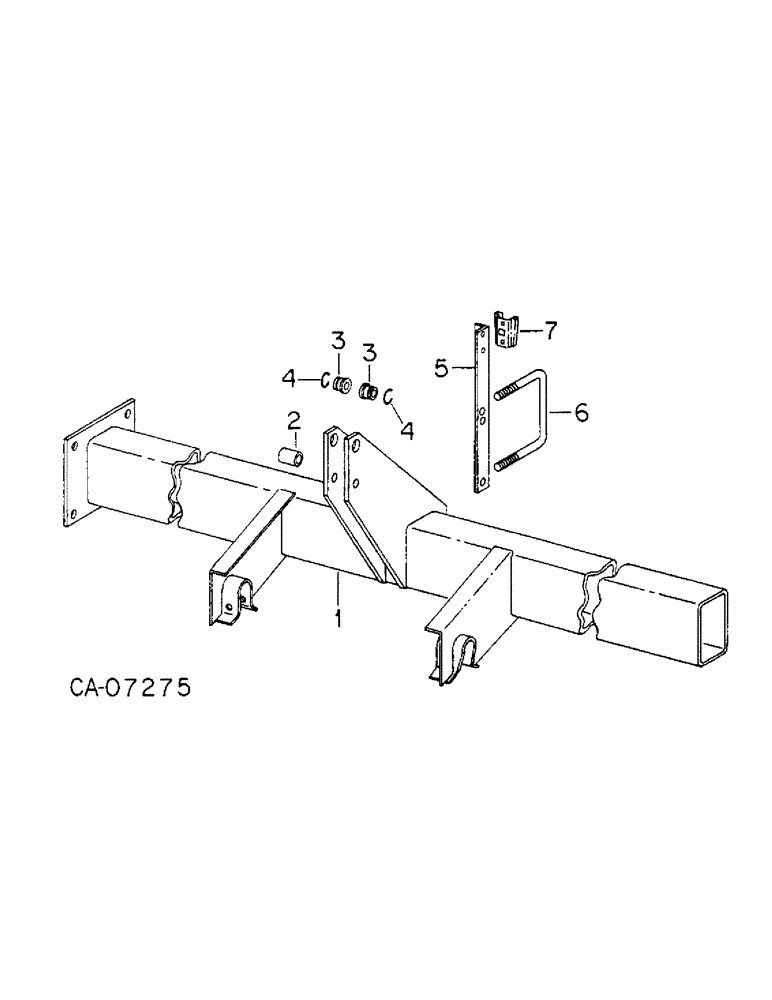

Запчасти Case IH 800 (03-07) - FRAME, FRAME AND CONNECTIONS, UNITS K, L, N, AA AND AB (09) - CHASSIS/ATTACHMENTS

1

1268096C91

FRAME

W/PRODUCT GRAPHIC, units K and L

1шт.

1

1268094C91

FRAME

W/PRODUCT GRAPHIC, unit N

1шт.

1

1279545C91

FRAME

W/PRODUCT GRAPHIC, unit AA

1шт.

1

1279531C91

FRAME

W/PRODUCT GRAPHIC, unit AB

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

2

462425R1

SPACER

mast

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

541781R1

BUSHING

mast

2шт.

4

152450R1

SNAP RING,#125, Ext

RING, 1.156 ext ret

2шт.

5

58316C1

SUPPORT

safety light

1шт.

6

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

units K, L, AA and AB

1шт.

6

1250813C1

U-BOLT

unit N

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

7

398976R1

BRACKET

SOCKET, SMV emblem

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.
