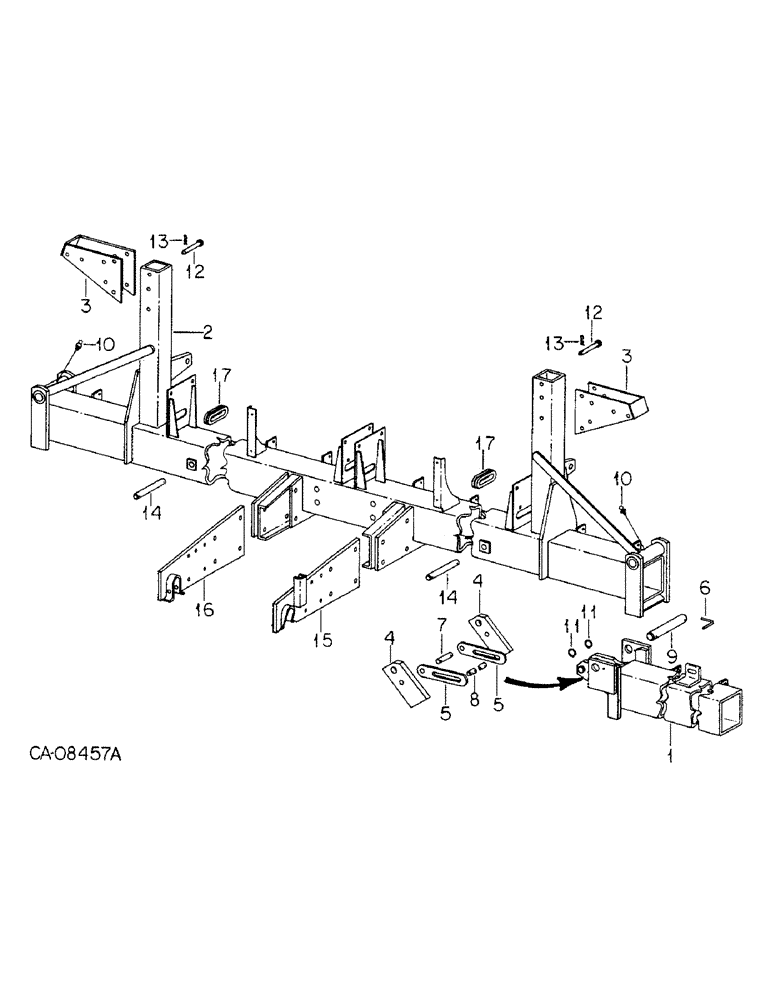

Запчасти Case IH 800 (03-06) - FRAME, FRAME AND CONNECTIONS, UNIT J (09) - CHASSIS/ATTACHMENTS

1

1279711C1

ASSEMBLY

SECTION ASSY, wing LH, replaces 141511C2

1шт.

1

1279712C1

ASSEMBLY

SECTION ASSY, wing RH, replaces 141511C2

1шт.

2

1268147C91

FRAME

W/PRODUCT GRAPHIC, center section

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

3

145136C1

STOP

ASSY, wing

2шт.

3

1254599C1

STOP

ASSY, wing, used w/granular chemical att

2шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock

4шт.

4

113473C2

SUPPORT

LATCH, hinge

4шт.

26589R1

SELF-TAP SCREW

no. 10NF x 5/8 fil/hdcr tap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

5

113307C1

LINK

LIK, cylinder hook-up

4шт.

6

491601R2

PIN

pivot lock 'L'

2шт.

7

100324C2

PIN

cylinder and latch

2шт.

8

100323C1

PIN

hold-up

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

100326C1

PIN

hinge

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

10

25391R1

FITTING

1/4 less ball check lub

2шт.

11

609053R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

608700R1

WASHER

1.281 x 2.000 x .054

4шт.

12

149571C2

PIN

pointed 5/8 diameter

2шт.

13

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

14

100358C1

PIN

cylinder anchor

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

15

1264336C1

PLATE

ASSY, LH hitch

1шт.

16

1264337C1

PLATE

ASSY, RH hitch

1шт.

24890R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

8шт.

17

145149C1

GROMMET

2шт.
