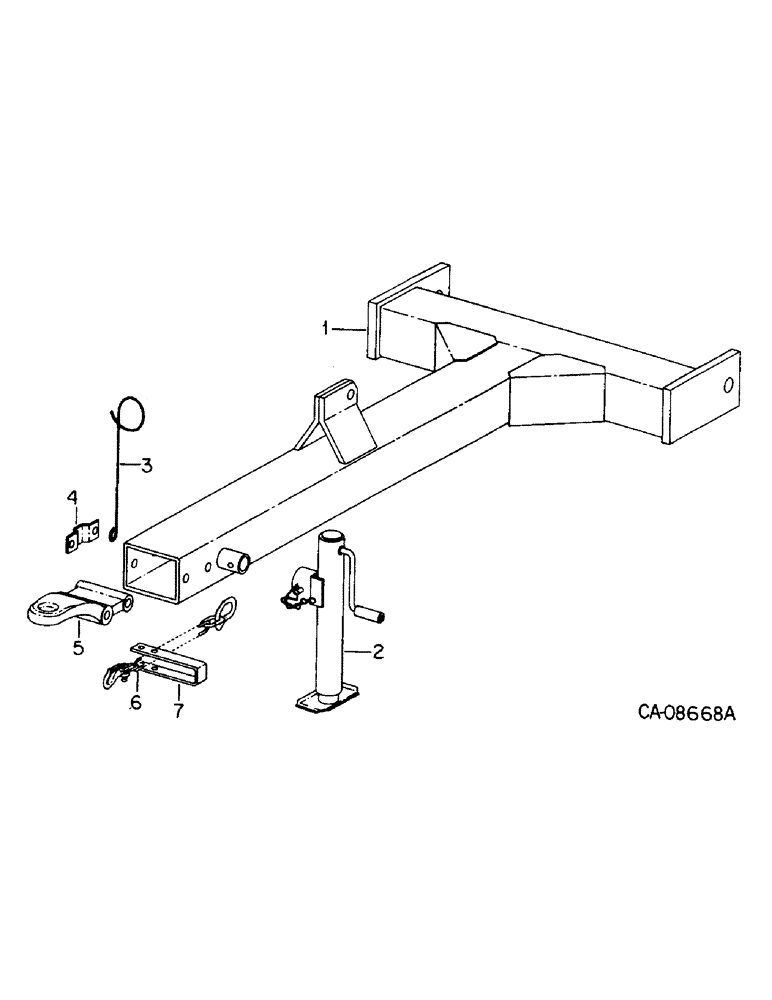

Запчасти Case IH 800 (04-04) - HITCH, RIGID HITCH AND CONNECTIONS, UNITS W, X AND Y (04) - ELECTRICAL SYSTEMS

1

1279396C91

HITCH ASSY, TRAILER

HITCH W/PRODUCT GRAPHICS, rigid

1шт.

28396R1

HEADED PIN,1 1/4" x 3 1/2"

PIN, 1 1/4 x 3.5 hd type 5

2шт.

22442R1

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

1254234C1

PRODUCT GRAPHIC,Caution To Prevent Personal Injury

caution

1шт.

2

119354C1

JACK

ASSY, SWS 150 DTSF

1шт.

3

1279237C1

SUPPORT

hose

1шт.

4

137098C1

SUPPORT

BRACKET, pump mounting

1шт.

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

3/4 x 9 type 5

2шт.

131017

WASHER

.812 x 1.469 x .108

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

5

1277987C1

TOW BAR

TONGUE, hitch

1шт.

6

63506C2

CHAIN (CE)

CHAIN, safety

1шт.

7

1279163C1

CLEVIS COUPLING

CLEVIS, safety chain

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 pln p/t lock type 5

1шт.

26512R1

WASHER

.781 x 2.000 x .164

1шт.
