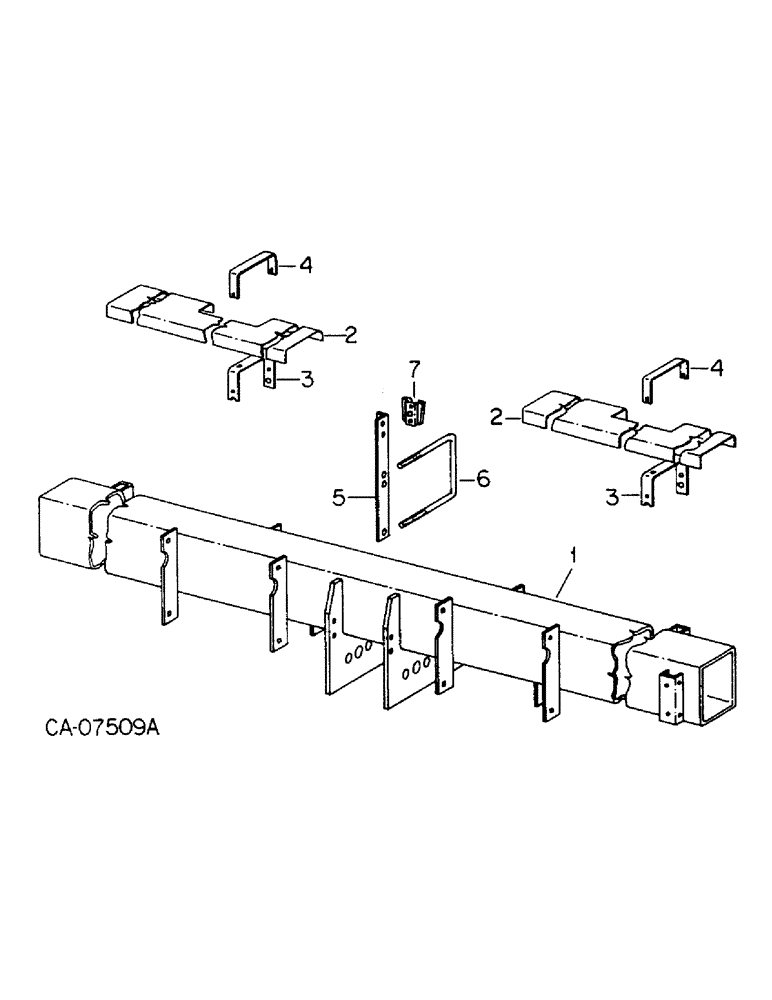

Запчасти Case IH 800 (03-03) - FRAME, FRAME AND CONNECTIONS, UNITS F, G AND M (09) - CHASSIS/ATTACHMENTS

1

141306C2

FRAME

ASSY, unit F

1шт.

1

141307C3

FRAME ASSY, unit G

1шт.

1

141423C4

FRAME

ASSY, unit M

1шт.

2

141322C1

CHANNEL

cover tube, unit F, order channel, 137290C1, s/n, Serial Range: 501-2313

1шт.

2

141320C1

COVER

CHANNEL, cover tube, 2 for unit G, order channel, 137290C1, s/n, Serial Range: 501-2313

1шт.

2

137290C1

CHANNEL

cover tube, s/n, Serial Range: 501-2313

1шт.

3

1264119C1

STRAP

CHANNEL, hose guide, s/n 2314 and above

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

3

137285C1

CHANNEL

bar support, s/n, Serial Range: 501-2313

4шт.

4

137284C1

CHANNEL

bar support, s/n, Serial Range: 501-2313

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

142745

NUT, WING

NUT, 5/16 wing

8шт.

5

58316C1

SUPPORT

safety light

1шт.

6

1250813C1

U-BOLT

replaces 493837R2

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

7

398976R1

BRACKET

SOCKET, SMV emblem mounting

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
