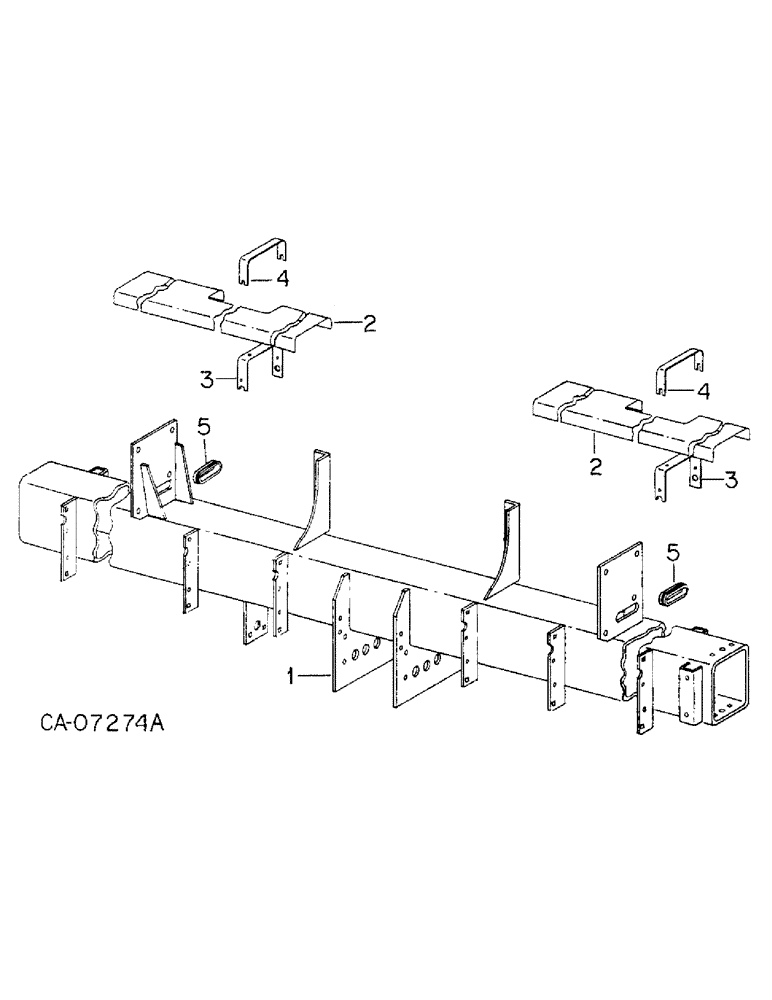

Запчасти Case IH 800 (03-02) - FRAME, FRAME AND CONNECTIONS, UNITS A THRU E AND S (09) - CHASSIS/ATTACHMENTS

1

141149C2

FRAME ASSY, unit A

1шт.

1

141287C3

FRAME

ASSY, unit B

1шт.

1

141422C5

FRAME

ASSY, unit C

1шт.

1

140980C5

FRAME

ASSY, unit D

1шт.

1

141098C5

FRAME ASSY, unit E

1шт.

1

1254384C1

FRAME

ASSY, unit S

1шт.

2

141334C1

CHANNEL

cover tube, order channel, 137290C1, serial no. 10100 and below, unit A

2шт.

2

141301C1

CHANNEL

cover tube, order channel, 137290C1, serial no. 10100 and below, unit E

1шт.

2

141303C1

CHANNEL

cover tube, order channel, 137290C1, serial no. 10100 and below, units B & E

2шт.

2

149582C41

CHANNEL, cover tube, order channel, 137290C1, serial no. 10100 and below, unit D

1шт.

2

141320C1

COVER

CHANNEL, cover tube, order channel, 137290C1, serial no. 10100 and below, unit C

1шт.

2

141321C1

CHANNEL

cover tube, order channel, 137290C1, serial no. 10100 and below, unit C

1шт.

2

137290C1

CHANNEL

cover tube, units, Serial Range: A-E

1шт.

3

1264119C1

STRAP

CHANNEL, hose guide, serial no. 10101 and above

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

3

137285C1

CHANNEL

bar support, serial no. 10100 and below

1шт.

4

137284C1

CHANNEL

bar support, serial no. 10100 and below

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7500032

BUSHING

NUT, 5/16 wing

1шт.

1254276C1

PUSH-ON NUT

PALNUT, bolt retainer

1шт.

5

145149C1

GROMMET

2шт.
