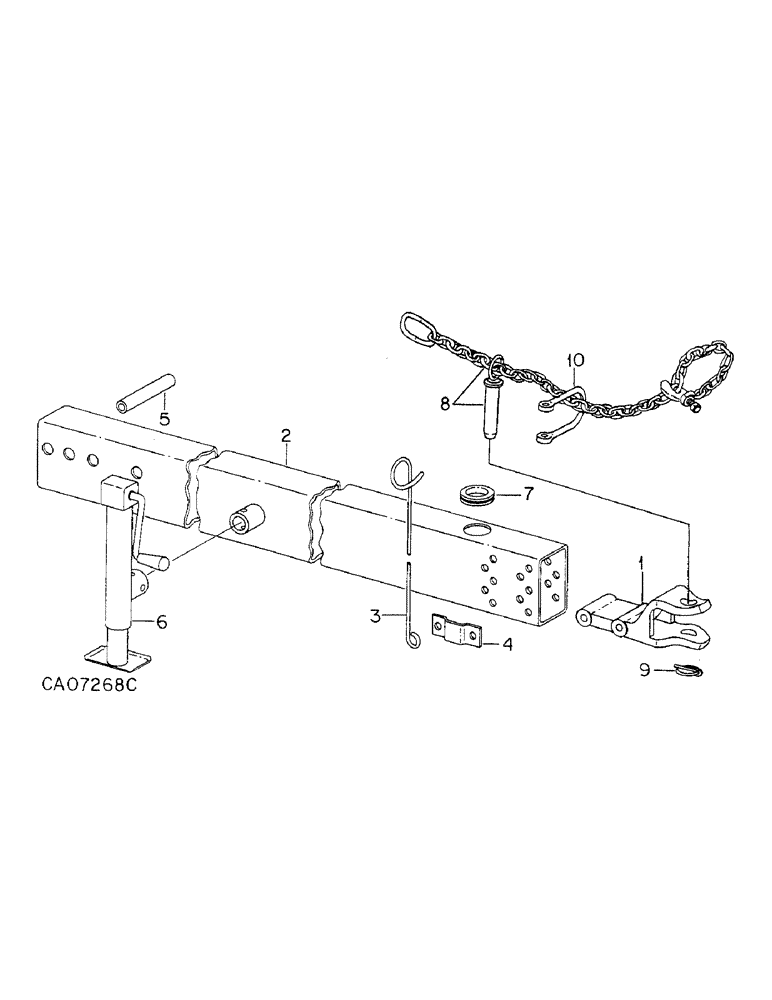

Запчасти Case IH 800 (04-02) - HITCH, RIGID HITCH AND CONNECTIONS, UNITS A, B, F AND G (04) - ELECTRICAL SYSTEMS

1

1279040C1

CLEVIS

hitch, replaces 1250770C2

1шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4 x 6-1/2 type 5

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4 x 7 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

131017

WASHER

.812 x 1.469 x .108

1шт.

280954

NUT,3/4"-10, G5

2шт.

2

1268043C92

TOW BAR

TONGUE W/PRODUCT GRAPHICS, rigid, replaces 145048C92

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

1277910C1

PRODUCT GRAPHIC,Caution Always Use 7/8 in Hitch Pin

caution

1шт.

1254234C1

PRODUCT GRAPHIC,Caution To Prevent Personal Injury

caution

1шт.

3

141095C1

ROD

support hose

1шт.

4

137098C1

SUPPORT

bracket pump mtg

1шт.

5

1250748C2

SPACER

tongue

3шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

3/4 x 8 type 5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

21211R1

WASHER

.781 x 1.500 x .164

6шт.

280954

NUT,3/4"-10, G5

3шт.

6

141241C1

JACK

ASSY

1шт.

7

149420C1

GROMMET

1шт.

8

1277870C91

CHAIN (AG)

PIN W/CHAIN ASSY, hitch

1шт.

9

373025R91

PIN ASSY.

PIN, quick attachable snap

1шт.

10

148558C1

CLEVIS

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 pln p/t lock type 5

1шт.

26512R1

WASHER

.781 x 2.000 x .164

1шт.
