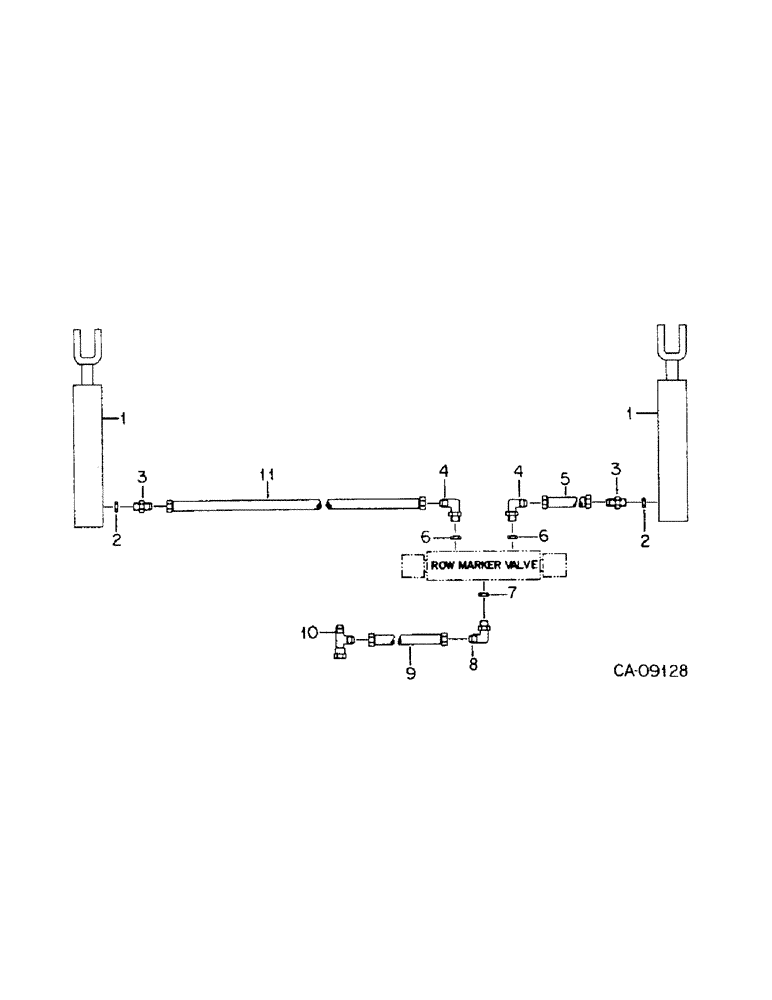

Запчасти Case IH 800 (09-19) - MARKERS, HYDRAULIC MARKER CONNECTIONS, UNIT Z (08) - HYDRAULICS

1

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSY, 1-1/4 x 8 in. ram type hydraulic, for components see list of parts under details of hyd cylinder

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

3

1263477C3

HYD CONNECTOR

UNION, restrictor

2шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

2шт.

5

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE, 1/4 x 105 in. hydraulic

1шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

8

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90D

1шт.

9

155225C91

HOSE ASSY.

HOSE, 1/2 x 29 in. hydraulic

1шт.

10

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

5/8 C-Z hyd fld tube swivel

1шт.

11

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE, 1/4 x 125 in. hydraulic

1шт.

306132C1

CABLE TIE,14.5" L

STRAP, 14 in. tie

6шт.
