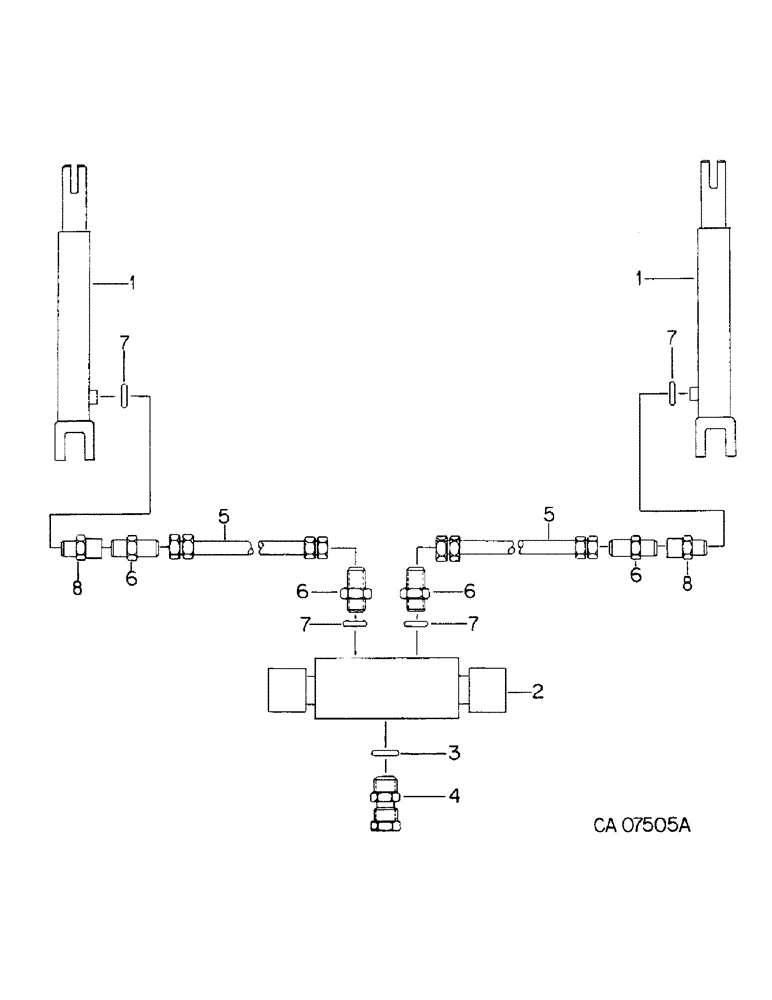

Запчасти Case IH 800 (09-17) - MARKERS, HYDRAULIC MARKER CONNECTIONS, UNITS A THRU G, M, S, T, AA AND AB (08) - HYDRAULICS

1

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, units A, B, F and G, serial no. 10100 & below (cyclo), serial no. 2313 & below (plate), units C, D, E, M, S and T, for components see list of parts under details of hyd cylinders

2шт.

1

1263405C91

CYLINDER

ASSY, 1-1/4 x 8 ram type, order cylinder assy, 1272484C92, units A, B, F and G, serial no. 10101 & above (cyclo) serial no. 2314 & above (plate), for components see list of parts under details of hyd cylinder

2шт.

1

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSY, 1-1/4 x 8 ram type, units A, B, F and G, serial no. 10101 & above (cyclo), serial no. 2314 & above (plate), all units AA and AB, for components see list of parts under details of hyd cylinder

2шт.

2

149986C91

VALVE

ASSY, row marker, order valve assy, 149988C92, for components see list of parts under details of row marker valve

1шт.

2

149988C92

VALVE

ASSY, row marker, modular controls, replaces 149986C91, optional with 1272632C91, for components see list of parts under details of row marker valve

1шт.

2

1272632C91

VALVE

ASSY, row marker, waterman hydraulics, optional with 149988C92, for components see list of parts under details of row marker valve

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

4

66895C1

FITTING

UNION, 5/8 special, units A thru G, M, S and T

1шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 C-Z hyd fld short swivel, units AA and AB

1шт.

5

1284291C1

HYDRAULIC HOSE

1/4 x 95 in. hydraulic, replaces 129763C1, 2 for unit AA

1шт.

5

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE, 1/4 x 105 in. hydraulic, 2 for units A, F and AB

1шт.

5

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE, 1/4 x 125 in. hydraulic, 2 for units B and G

1шт.

5

139655C2

HYDRAULIC HOSE

HOSE, 3/8 x 155 in. hydraulic, replaces 1264173C1, 2 for units C, M and S

1шт.

5

1261399C1

HYDRAULIC HOSE,6.35mm ID x 4570mm L

HOSE, 1/4 x 180 in. hydraulic, 2 for unit D

1шт.

5

1264171C1

HYDRAULIC HOSE,6.40 mm ID x 5590.00 mm, SAE 100R1

HOSE, 1/4 x 215 in. hydraulic, 2 for units E and T

1шт.

6

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel, 2 for units A, B, E, F, G and T, 4 for units C, D, M and S

1шт.

6

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D, 2 for units E, T, AA and AB

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6, 2 for units A, B, F, G, AA and AB, 4 for units C, D, E, M, S and T

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, 2 for units A, B, F, G, AA and AB

1шт.

8

1263477C3

HYD CONNECTOR

UNION, restrictor, 2 for units A, B, F, G, AA and AB

1шт.

306132C1

CABLE TIE,14.5" L

STRAP, 14 in. tie

1шт.
