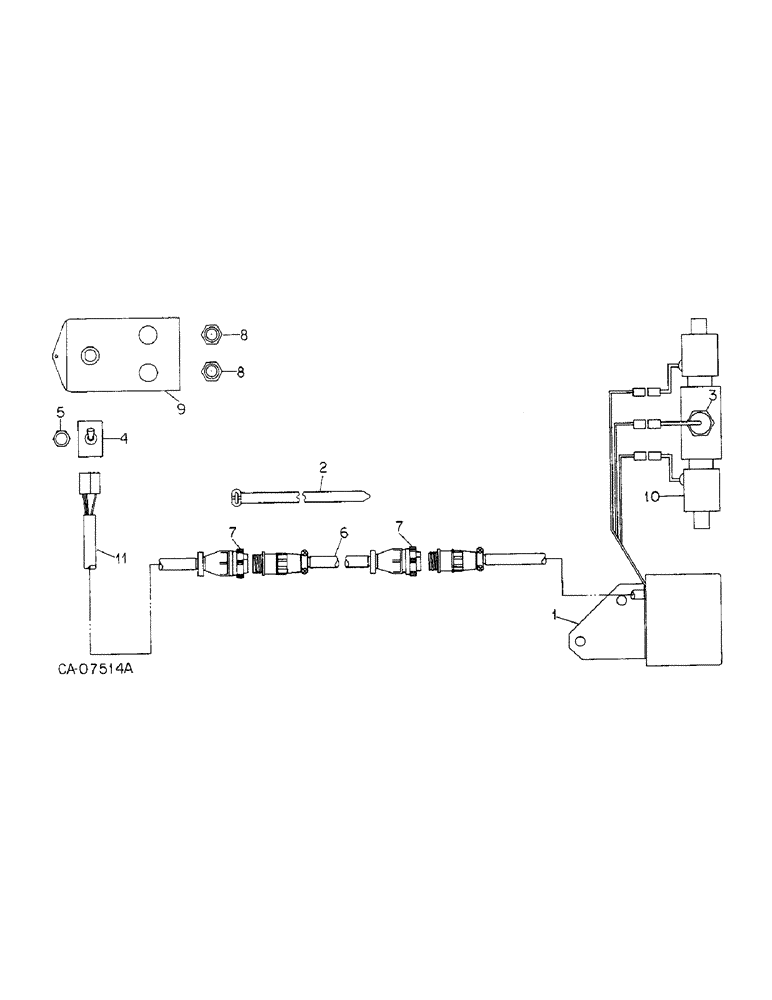

Запчасти Case IH 800 (09-16) - MARKERS, AUTOMATIC ALTERNATING MARKER SELECTOR, UNITS A, B, F, G, Z, AA AND AB (08) - HYDRAULICS

1

144911C3

CONTROL

ELECTRIC CONTROL, marker

1шт.

1

144911C4R

REMAN ELECT CONTROL

800 CASE IH PLANTER, ELECTRIC CONTROL, marker, Reman for New PN 144911C3

1шт.

1

144911C4C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

306132C1

CABLE TIE,14.5" L

STRAP, 14 in. tie, replaces 58556C1

2шт.

3

142526C3

SWITCH

pressure

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

4

1250682C1

SWITCH

W/NUT

1шт.

5

57603C1

NUT

switch

1шт.

6

144910C1

HARNESS

planter long, units A, B, F and G

1шт.

7

149456C91

SET

PACKAGE, ring 9 pin connectors, consists of 10 rings

1шт.

8

109369C91

LIGHT ASSY.

LIGHT ASSY, indicator, only serviceable items are

2шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, type C-2V trade #1815

1шт.

71652C1

LENS

indicator light

1шт.

9

149493C1

PLATE

W/PRODUCT GRAPHIC, control

1шт.

10

149988C92

VALVE

ASSY, row marker, modular controls, replaces 149986C91, optional with 1272632C91, for components see list of parts under details of row marker valve

1шт.

10

1272632C91

VALVE

ASSY, row marker, waterman hydraulics, optional with 149988C92, for components see list of parts under details of row marker valve

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

11

141405C1

HARNESS

tractor

1шт.

1266946C1

KIT

pressure switch conversion to convert ref #3 from 1900 PSI to 1500 PSI

1шт.
