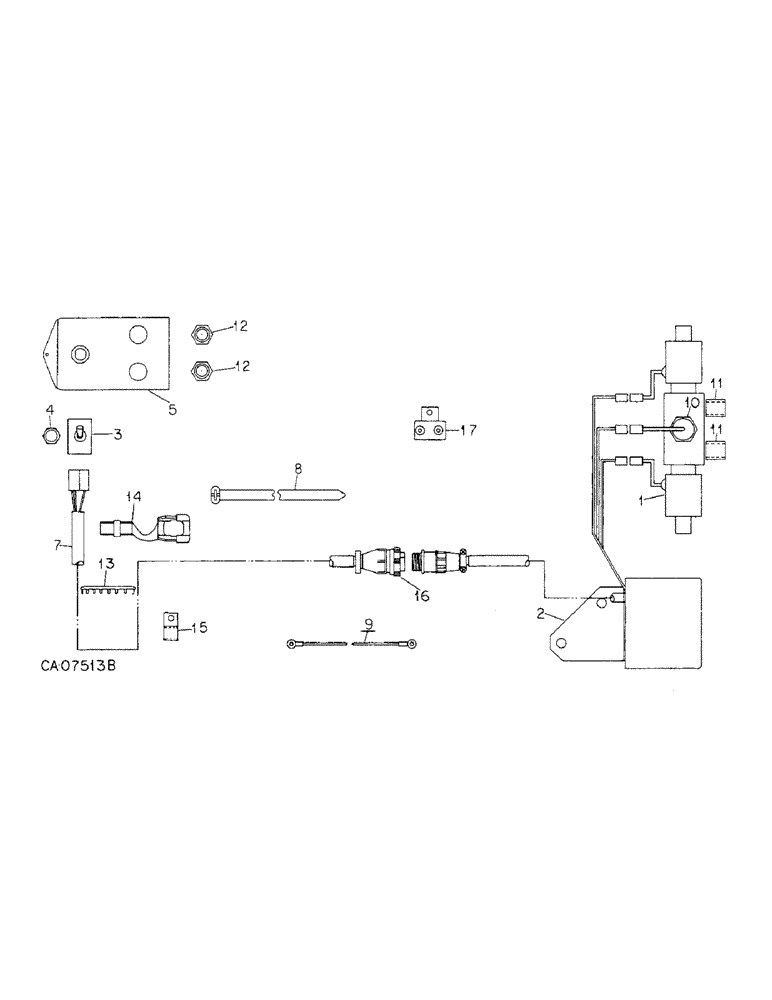

Запчасти Case IH 800 (09-15) - MARKERS, MARKER SELECTOR VALVE AND CONNECTIONS, UNITS H, J, K, L, N, P, Q, R, U AND V (08) - HYDRAULICS

1

149986C91

VALVE

ASSY, row marker, order valve assy, 149988C92, for components see list of parts under details of row marker valve

1шт.

1

149988C92

VALVE

ASSY, row marker, modular controls, replaces 149986C91, optional with 1272632C91, for components see list of parts under details of row marker valve

1шт.

1

1272632C91

VALVE

ASSY, row marker, waterman hydraulics, optional with 149988C92, for components see list of parts under details of row marker valve

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5, 2 for units J, Q and R

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5, 2 for units K, L and N

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5, 2 for units H, P, U and V

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

144911C3

CONTROL

marker, electric

1шт.

2

144911C4R

REMAN ELECT CONTROL

800 CASE IH PLANTER, marker, electric, Reman for New PN 144911C3

1шт.

2

144911C4C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

1250682C1

SWITCH

W/NUT

1шт.

4

57603C1

NUT

switch

1шт.

5

149493C1

PLATE

W/PRODUCT GRAPHIC

1шт.

6

Not used this application

1шт.

7

141405C1

HARNESS

tractor

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP, 14 in. tie

2шт.

9

117620C1

CABLE

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10 Amp

1шт.

10

142526C3

SWITCH

pressure

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

11

1250695C2

SPACER

valve mounted, 2 for units J and Q

1шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

3/8 x 5 type 5

2шт.

12

109369C91

LIGHT ASSY.

LIGHT ASSY, indicator, only serviceable items are

2шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, type C-2V trade #1815

1шт.

71652C1

LENS

indicator light

1шт.

13

116270C1

PLUG

cyclo planters w/serial no. 10100 and below, plate planters w/serial no. 2313 and below

1шт.

13

1264374C1

PLUG

cyclo planters w/serial no. 10101 and above, plate planters w/serial no. 2314 and above

1шт.

14

169851C1

GROMMET

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP

3шт.

16

149456C91

SET

PACKAGE, 9 pin connector, consists of 10 rings

1шт.

17

1264471C1

CIRCUIT-BREAKER

BREAKER, 10 Amp circuit when planters are used w/30, 50 & 60 series tractors

1шт.
