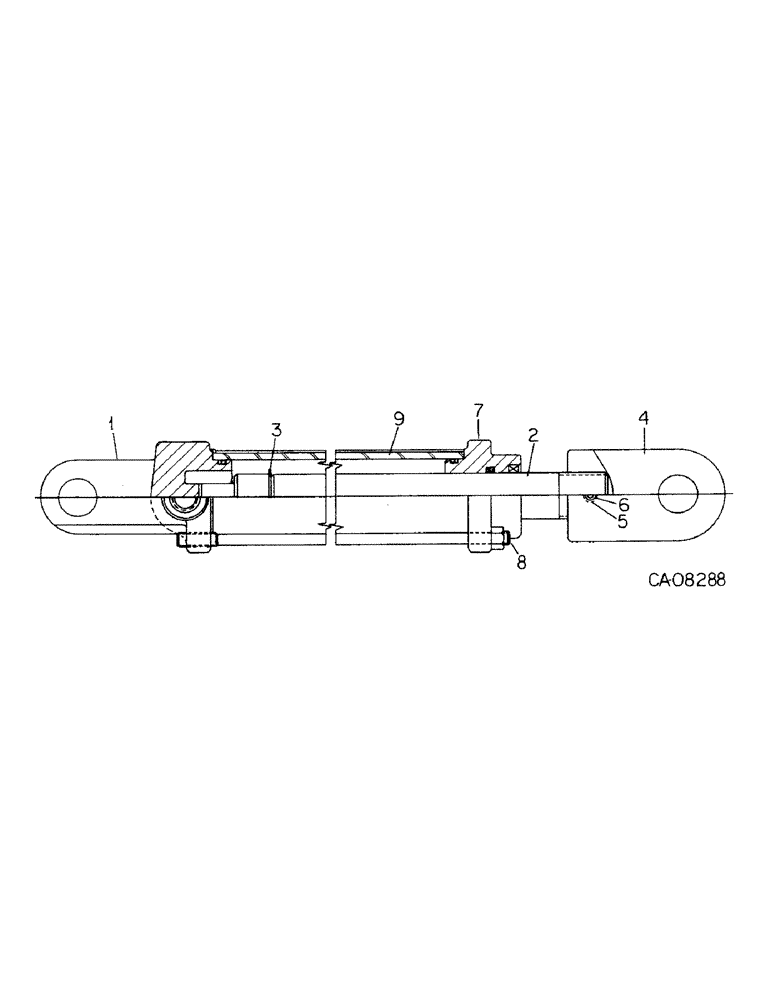

Запчасти Case IH 800 (09-13) - MARKERS, HYDRAULIC CYLINDER, 1-1/4 X 8 INCH RAM TYPE, UNITS A, B, F, G, Z, AA AND AB (08) - HYDRAULICS

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSY, 1-1/4 x 8 in. ram type hydraulic

1шт.

1

1272768C1

HEAD

hyd cylinder rear

1шт.

2

1263449C1

ROD

hyd cylinder piston, used only with cylinder assy, 1272484C91, order piston rod, 92887C1 and retaining ring, 92888C1

1шт.

2

92887C1

PISTON ROD

ROD, hydraulic cylinder piston

1шт.

3

152450R1

SNAP RING,#125, Ext

RING, 1.156 ext ret, used only w/piston rod, 1263449C1

1шт.

3

92888C1

RING, LOCKING

RING, 1.144/1.174 x .125 thick retaining

1шт.

4

145233C1

CLEVIS,1/4" - 12

hyd cylinder piston rod

1шт.

5

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 c/pt znp hdl/s set

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, hyd cylinder piston rod clevis

1шт.

7

1272769C1

HEAD

hyd cylinder front

1шт.

8

145248C1

ROD,3/8" - 16 x 318mm

BOLT, hyd cylinder tie

4шт.

102635

NUT,3/8"-16, G5

4шт.

9

BODY, hyd cylinder, not serviced separately, order cylinder assy

1шт.

79974C2

SEAL KIT

KIT, hyd cyl seal & O-ring service

1шт.
