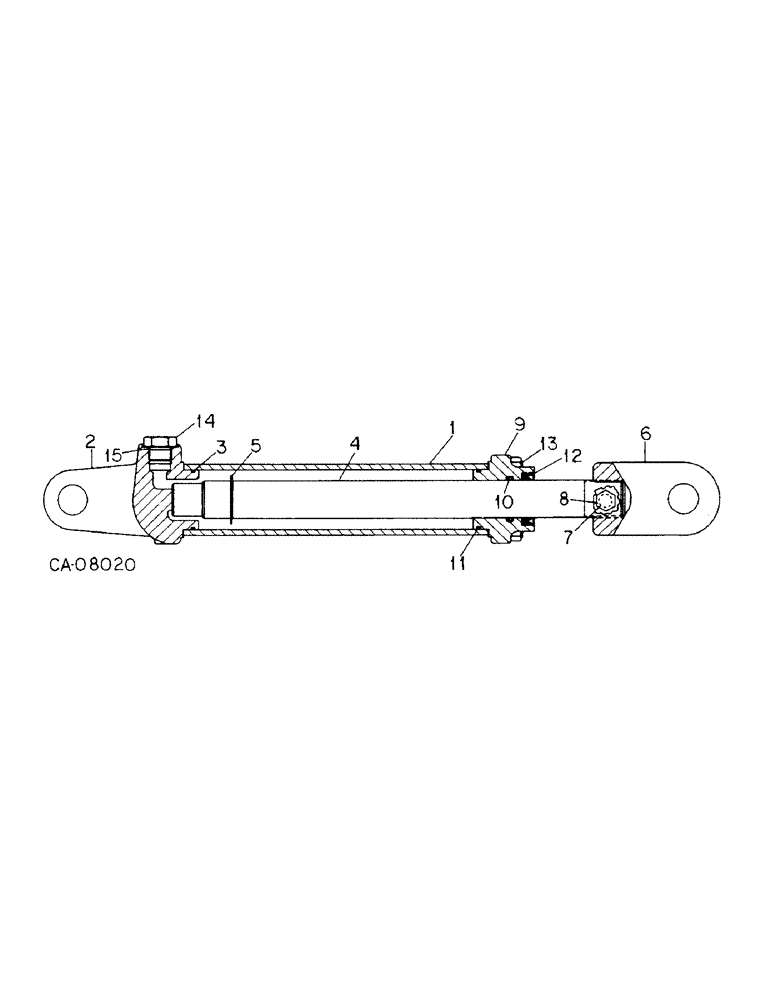

Запчасти Case IH 800 (09-11) - MARKERS, HYDRAULIC CYLINDER, 1-1/4 X 8 INCH RAM TYPE, UNITS A, B, F AND G (08) - HYDRAULICS

1263405C91

CYLINDER

ASSY, hydraulic, order cylinder assy, 1272484C92

1шт.

1

145215C1

SLEEVE, hyd cyl

1шт.

2

145214C1

HEAD

hyd cyl rear

1шт.

3

O-RING, 1-13/16 x 2 class 6 (NSS), order kit, 79974C1

1шт.

4

1263449C1

ROD

hyd cylinder piston

1шт.

5

152450R1

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

6

145233C1

CLEVIS,1/4" - 12

hyd cylinder piston rod

1шт.

7

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, hyd cylinder piston rod clevis

1шт.

9

1263448C1

HEAD

ASSY, hyd cyl front

1шт.

10

SEAL, hyd cyl rod (NSS), order kit, 79974C1

1шт.

11

O-RING, 1-13/16 x 2 class 6 (NSS), order kit, 79974C1

1шт.

12

SEAL, hyd cylinder piston rod wiper (NSS), order kit, 79974C1

1шт.

13

145248C1

ROD,3/8" - 16 x 318mm

BOLT, hyd cylinder tie

4шт.

102635

NUT,3/8"-16, G5

4шт.

14

9410359

PLUG

1/2 C-Z str thd O-ring boss

1шт.

15

O-RING, 1/2 OD tube class 6 (NSS), order kit, 79974C1

1шт.

79974C2

SEAL KIT

KIT, hyd cyl seal & O-ring service, consists of ref nos. 3, 10, 11, 12 and 15

1шт.
