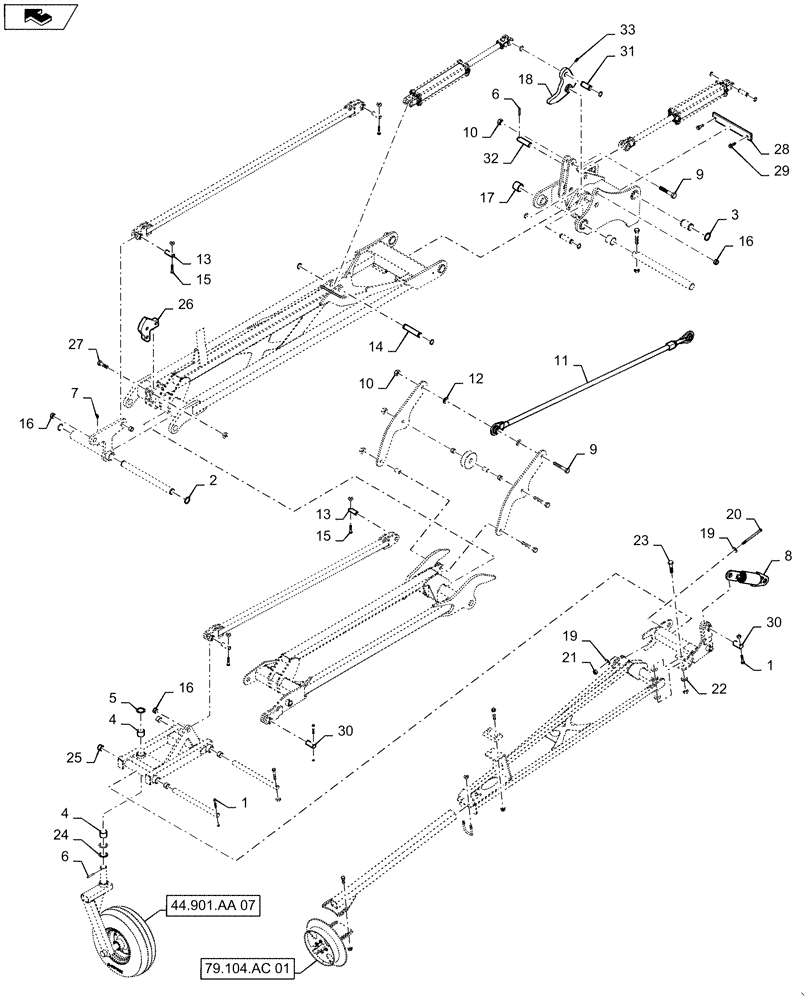

Запчасти Case IH 1265 (79.104.AB[04]) - ROW UNIT MARKER RIGHT FOR 36/30 (79) - PLANTING

1

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

4шт.

2

86625149

SNAP RING,#175, Ext

2шт.

3

84158898

RING

1.840 DIA

4шт.

4

21701

BUSHING

1.937 X 1.75X1.5

2шт.

5

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1.750 X 2.500 X .075

1шт.

6

87635861

ROLL PIN

.375 X 2.500

2шт.

7

86585176

LUBE NIPPLE,90 Degree, 1/4" NPT x .75" lg

1шт.

8

84172359

LINKAGE

Spring Heavy Duty

1шт.

9

47390930

BOLT

7/8-9X4-1/2

2шт.

10

280658

NUT,7/8"-9, GB

2шт.

11

84171852

LINKAGE

Tube Painted

1шт.

12

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

13

84276533

PIN

25.4 X 79

4шт.

14

87420397

PIN,25.4mm OD x 122mm L

1 X 4.188

1шт.

15

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

16

7995

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

1.25 X 1 X .75

4шт.

17

87686077

BUSHING

2.25 X 2 X 2

2шт.

18

84283611

LINKAGE

Float Marker

1шт.

19

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

20

280888

BOLT,Hex, 3/8" - 24 x 5 1/2", Gr 5

1шт.

21

86509310

NUT,3/8" - 24, Gr 5

1шт.

22

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

23

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

1шт.

24

21590

WASHER,44.45mm ID x 63.5mm OD x 0.76mm Thk

1.75 ID 2.5

2шт.

25

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

1.5 X 1.25

4шт.

26

84270951

SUPPORT

Marker Cam

1шт.

27

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

3шт.

28

84271701

SUPPORT

Marker Wear Painted

1шт.

29

86512179

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/2"

2шт.

30

84282867

PIN

31.75 X 74

2шт.

31

84282947

PIN

31.75 X 70

1шт.

32

87687202

PIN

31.75 X 120

1шт.

33

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.
