(55.635.AH[02]) - PNEUMATIC DOWN PRESSURE AIR SUPPLY HARNESS

Запчасти Case IH 1265 (55.635.AH[02]) - PNEUMATIC DOWN PRESSURE AIR SUPPLY HARNESS (55) - ELECTRICAL SYSTEMS

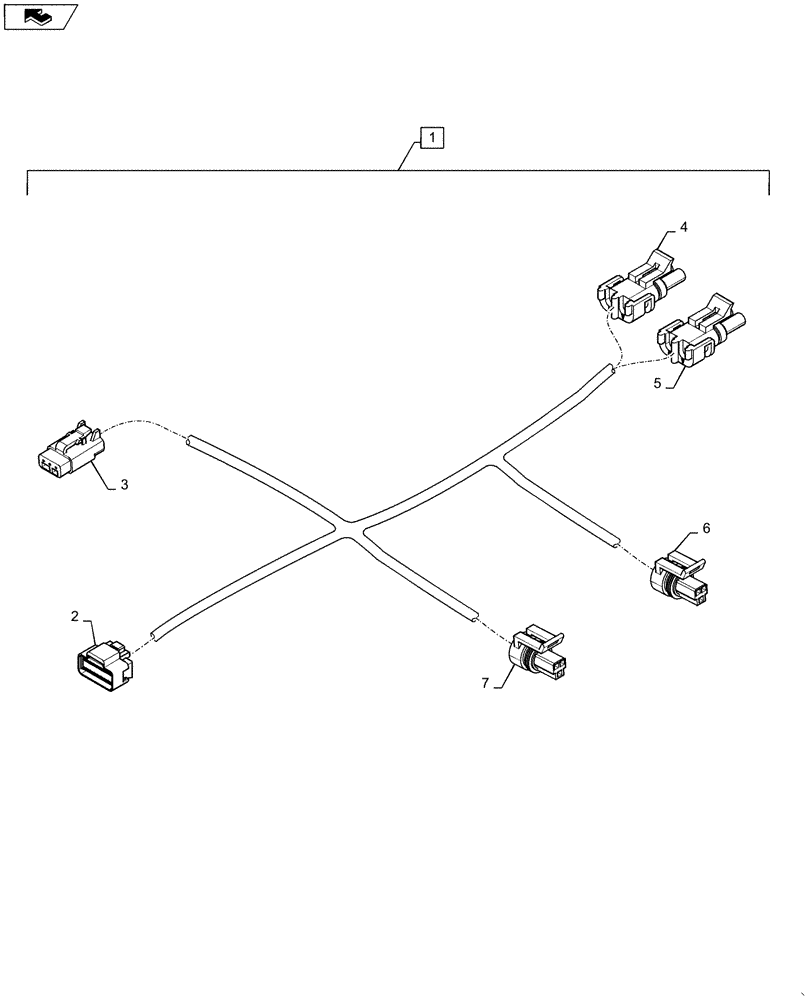

Схема запчастей Case IH 1265 - (55.635.AH[02]) - PNEUMATIC DOWN PRESSURE AIR SUPPLY HARNESS (55) - ELECTRICAL SYSTEMS
1
3
4
6
home
5
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87493975

HARNESS

PNEUMATIC DOWN PRESSURE AIR SUPPLY Incl 2 - 7

1шт.

2

87533278

ELEC CONNECTOR,Male

8 Way Compressor

1шт.

3

276424A1

ELEC CONNECTOR,Female, 3 Pin

Resistor Module

1шт.

4

245482C1

ELEC CONNECTOR,2 Pin

PNEUMATIC DOWN PRESSURE Increase

1шт.

5

245482C1

ELEC CONNECTOR,2 Pin

PNEUMATIC DOWN PRESSURE Decrease

1шт.

6

198456A1

ELEC CONNECTOR,Female

PNEUMATIC DOWN PRESSURE Pressure

1шт.

7

198456A1

ELEC CONNECTOR,Female

Compressor Pressure

1шт.
